Test Date: 2016-06-10 10:53
Analysis date: 2016-06-10 13:57
Analysis date: 2016-06-10 13:57
M2247 XRayHRQualification
Summary
| Module | Module | M2247 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 75 | |
| BumpBondingDefects | Bump Bonding Defects | 69 | |
| NoisyPixels | Noisy Pixels | 6 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

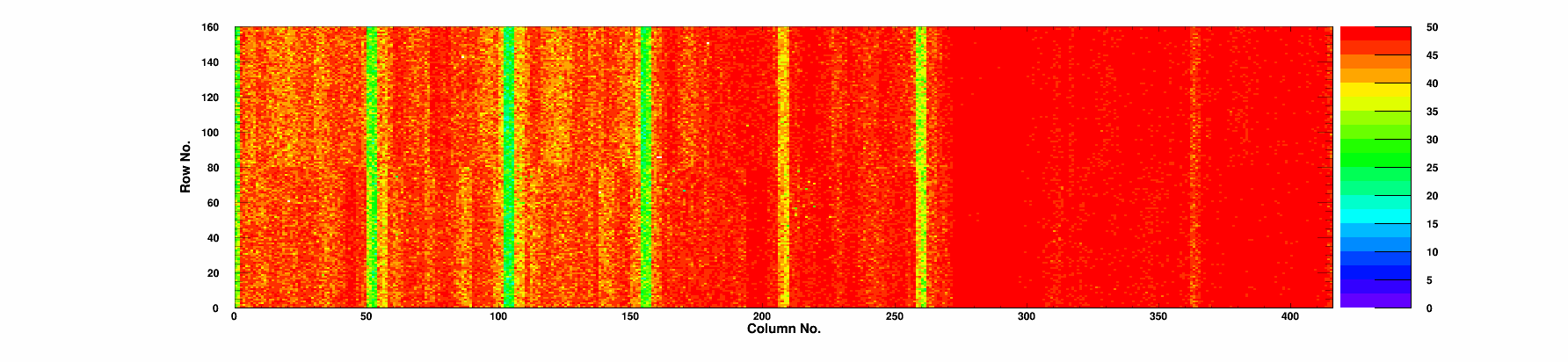

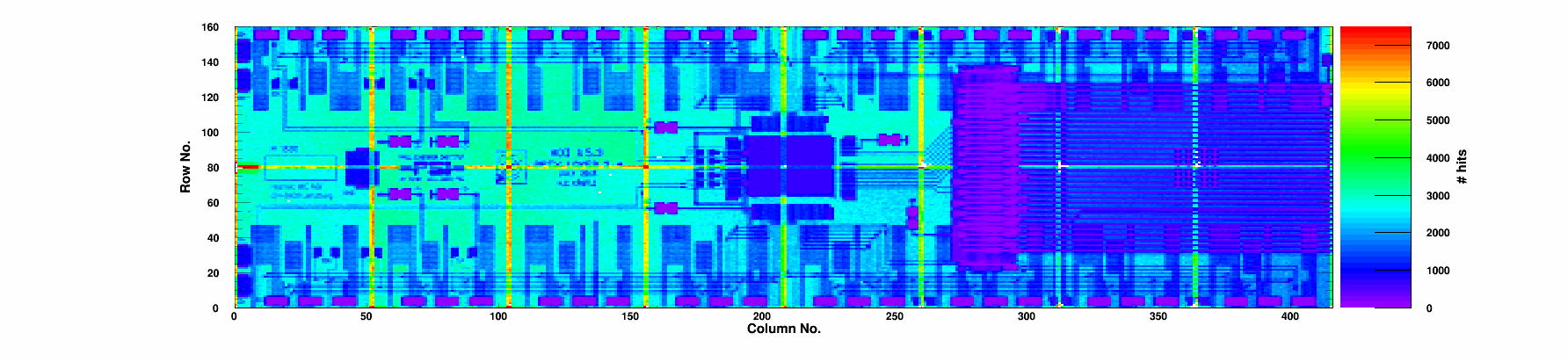

| Efficiency | Efficiency 50/120 | 99.88/99.34 | % |
| Noise | Mean Noise | 168 | e- |

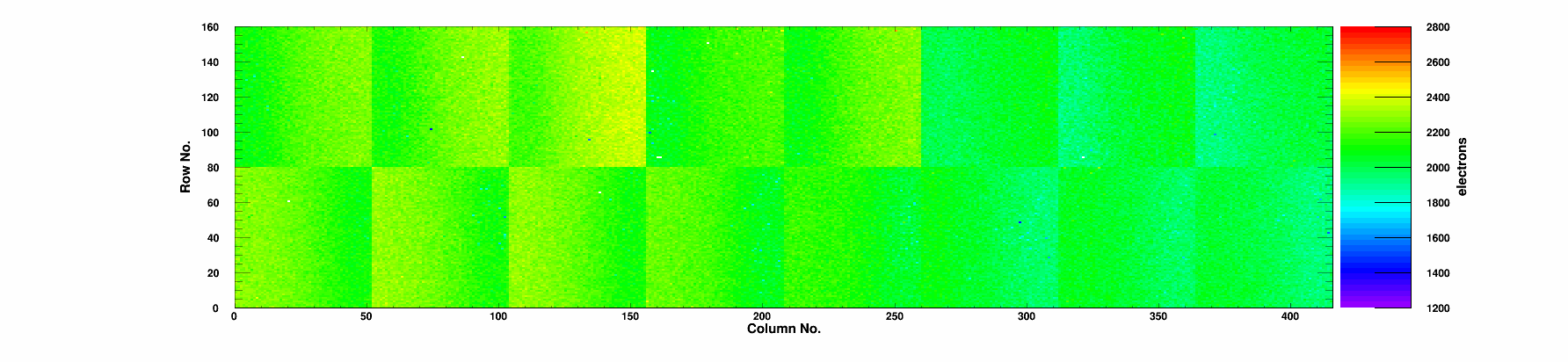

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
12 | 0 | 99.87 | 99.07 | 0.87 | 28.6 | 85.3 | 12 | 0/0 | 0 | 1986 | 169 | 0 |
|
Chip 1
|
A
|
11 | 0 | 99.86 | 99.35 | 0.53 | 32.9 | 98.2 | 11 | 0/0 | 0 | 2017 | 178 | 0 |
|
Chip 2
|
A
|
9 | 0 | 99.88 | 99.41 | 0.44 | 31.0 | 93.0 | 9 | 0/0 | 0 | 2028 | 179 | 0 |
|
Chip 3
|
A
|
4 | 0 | 99.89 | 99.44 | 0.56 | 52.0 | 150.7 | 4 | 0/0 | 0 | 2187 | 176 | 0 |
|
Chip 4
|
A
|
5 | 0 | 99.88 | 99.41 | 0.59 | 51.5 | 150.7 | 2 | 0/0 | 0 | 2032 | 170 | 3 |
|
Chip 5
|
A
|
2 | 0 | 99.87 | 99.42 | 0.63 | 67.8 | 194.2 | 2 | 0/0 | 0 | 2286 | 171 | 0 |
|
Chip 6
|
A
|
5 | 0 | 99.88 | 99.40 | 0.65 | 60.3 | 175.4 | 4 | 0/0 | 0 | 2178 | 169 | 1 |
|
Chip 7
|
A
|
3 | 0 | 99.88 | 99.30 | 0.99 | 60.1 | 174.7 | 3 | 0/0 | 0 | 2191 | 162 | 0 |
|
Chip 8
|
A
|
7 | 0 | 99.90 | 99.42 | 0.6 | 58.6 | 171.2 | 6 | 0/0 | 0 | 2165 | 152 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.37 | 0.68 | 61.6 | 179.3 | 0 | 0/0 | 0 | 2212 | 167 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.89 | 99.35 | 0.63 | 63.7 | 182.9 | 2 | 0/0 | 0 | 2173 | 161 | 1 |
|
Chip 11
|
A
|
1 | 0 | 99.86 | 99.39 | 0.84 | 50.0 | 146.4 | 1 | 0/0 | 0 | 2156 | 163 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.85 | 99.35 | 1.04 | 47.0 | 138.8 | 1 | 0/0 | 0 | 2109 | 168 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.87 | 99.28 | 0.53 | 28.9 | 88.0 | 1 | 0/0 | 0 | 2018 | 167 | 0 |
|
Chip 14
|
A
|
8 | 0 | 99.86 | 99.12 | 0.77 | 31.6 | 94.7 | 8 | 0/0 | 0 | 2017 | 171 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.89 | 99.33 | 0.53 | 28.5 | 85.5 | 3 | 0/0 | 0 | 1992 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-10 | |
| TestTime | Test Time | 10:53 | |
| TestDuration | Duration | 1:27:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
