Test Date: 2016-06-10 10:53
Analysis date: 2016-06-10 13:49
Analysis date: 2016-06-10 13:49
M2245 XRayHRQualification

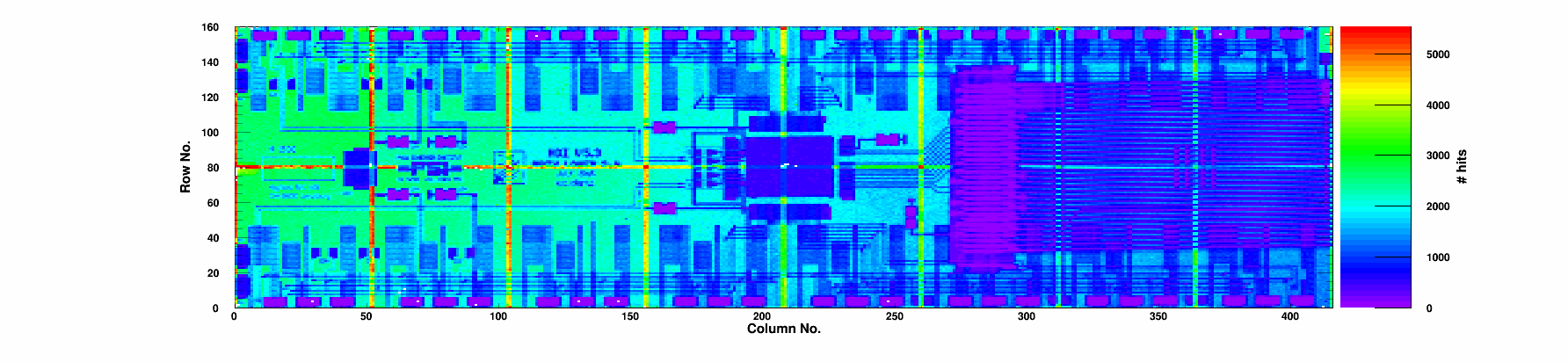

Summary
| Module | Module | M2245 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 50 | |
| BumpBondingDefects | Bump Bonding Defects | 45 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.32 | % |
| Noise | Mean Noise | 173 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.88 | 99.16 | 0.4 | 21.9 | 65.9 | 5 | 0/0 | 0 | 1910 | 174 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.89 | 99.33 | 0.47 | 22.3 | 68.1 | 0 | 0/0 | 0 | 1915 | 169 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.88 | 99.35 | 0.31 | 20.8 | 63.7 | 0 | 0/0 | 0 | 1910 | 167 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.88 | 99.39 | 0.52 | 36.1 | 106.2 | 3 | 0/0 | 0 | 2025 | 181 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.86 | 99.38 | 0.65 | 38.0 | 111.9 | 1 | 0/0 | 0 | 2041 | 174 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.11 | 0.51 | 45.0 | 130.7 | 1 | 0/0 | 0 | 2075 | 165 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.89 | 99.38 | 0.51 | 47.3 | 136.7 | 6 | 0/0 | 0 | 2093 | 171 | 0 |
|
Chip 7
|
A
|
11 | 0 | 99.88 | 99.39 | 0.53 | 55.1 | 158.6 | 10 | 0/0 | 0 | 2107 | 169 | 1 |
|
Chip 8
|
A
|
11 | 0 | 99.89 | 99.41 | 0.46 | 50.5 | 146.4 | 11 | 0/0 | 0 | 2093 | 175 | 0 |
|
Chip 9
|
A
|
8 | 0 | 99.90 | 99.40 | 0.7 | 47.5 | 138.3 | 6 | 0/0 | 0 | 2082 | 180 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.87 | 99.34 | 0.37 | 49.3 | 142.1 | 1 | 0/0 | 0 | 2100 | 178 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.90 | 99.33 | 0.46 | 35.8 | 105.9 | 0 | 0/0 | 0 | 2011 | 176 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.21 | 2.06 | 32.3 | 95.7 | 0 | 0/0 | 0 | 1998 | 175 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.33 | 0.46 | 18.4 | 56.7 | 0 | 0/0 | 0 | 1901 | 169 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.89 | 99.28 | 0.26 | 21.6 | 65.6 | 0 | 0/0 | 0 | 1935 | 174 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.87 | 99.33 | 0.29 | 21.6 | 64.7 | 1 | 0/0 | 0 | 1916 | 176 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-10 | |
| TestTime | Test Time | 10:53 | |
| TestDuration | Duration | 1:27:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
