Test Date: 2016-05-13 10:19
Analysis date: 2016-05-26 18:22
Analysis date: 2016-05-26 18:22
M2237 XRayHRQualification

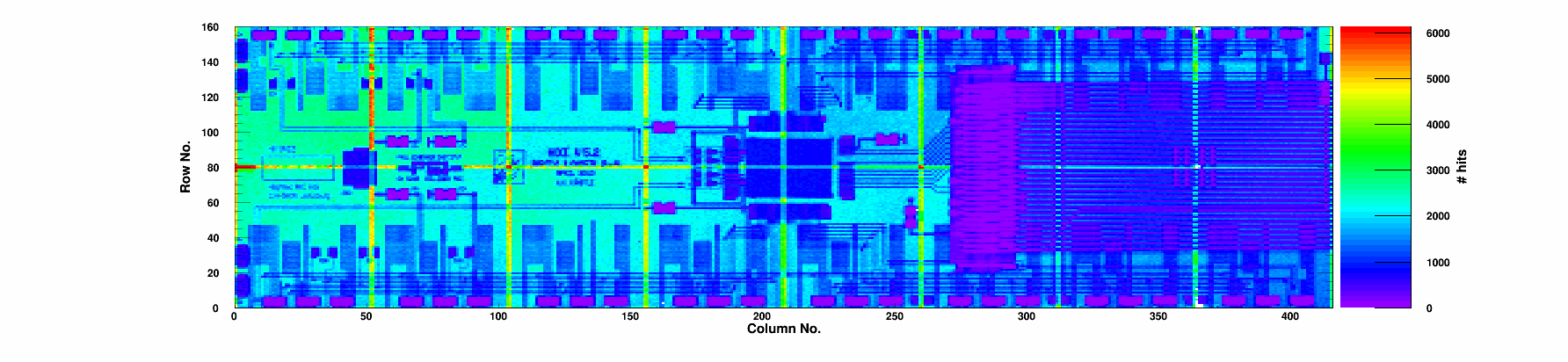

Summary
| Module | Module | M2237 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 25 | |
| BumpBondingDefects | Bump Bonding Defects | 22 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.21 | % |
| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
8 | 0 | 99.88 | 99.34 | 0.41 | 24.5 | 73.5 | 8 | 0/0 | 0 | 1972 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.02 | 0.51 | 22.9 | 70.2 | 0 | 0/0 | 0 | 1946 | 161 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.10 | 0.54 | 20.3 | 63.1 | 0 | 0/0 | 0 | 1937 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.29 | 0.71 | 36.6 | 108.2 | 0 | 0/0 | 0 | 2063 | 161 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.05 | 0.92 | 40.8 | 119.9 | 0 | 0/0 | 0 | 2083 | 173 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.34 | 0.57 | 48.0 | 138.1 | 1 | 0/0 | 0 | 2133 | 170 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.32 | 0.4 | 52.4 | 150.6 | 0 | 0/0 | 0 | 2133 | 164 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.33 | 1.01 | 56.1 | 160.0 | 0 | 0/0 | 0 | 2176 | 168 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.32 | 0.5 | 48.0 | 138.2 | 1 | 0/0 | 0 | 2107 | 172 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.45 | 43.7 | 127.1 | 0 | 0/0 | 0 | 2083 | 169 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.35 | 0.52 | 49.9 | 143.6 | 0 | 0/0 | 0 | 2124 | 172 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.23 | 0.66 | 38.8 | 114.4 | 1 | 0/0 | 0 | 2055 | 165 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.85 | 99.06 | 0.62 | 37.2 | 110.0 | 0 | 0/0 | 0 | 2014 | 175 | 1 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.23 | 0.55 | 21.4 | 65.9 | 0 | 0/0 | 0 | 1957 | 175 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.86 | 99.01 | 0.57 | 22.3 | 68.3 | 1 | 0/0 | 0 | 1932 | 169 | 0 |
|
Chip 15
|
A
|
11 | 0 | 99.86 | 99.09 | 0.4 | 22.4 | 68.2 | 10 | 0/0 | 0 | 1912 | 172 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-13 | |
| TestTime | Test Time | 10:19 | |
| TestDuration | Duration | 1:27:40 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
