Test Date: 2016-05-12 17:15
Analysis date: 2016-05-26 18:16
Analysis date: 2016-05-26 18:16
M2236 XRayHRQualification
Summary
| Module | Module | M2236 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 65 | |
| BumpBondingDefects | Bump Bonding Defects | 60 | |
| NoisyPixels | Noisy Pixels | 5 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.32 | % |

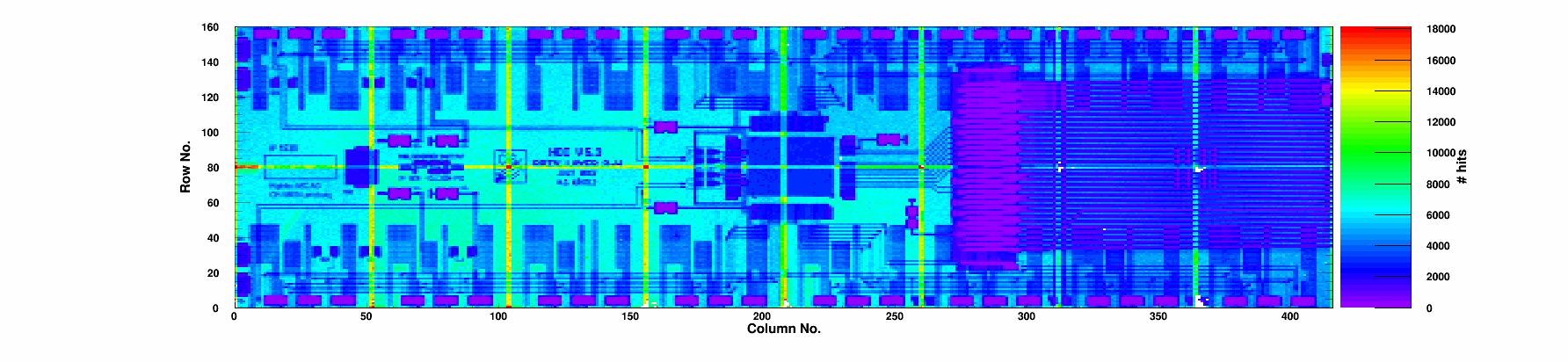

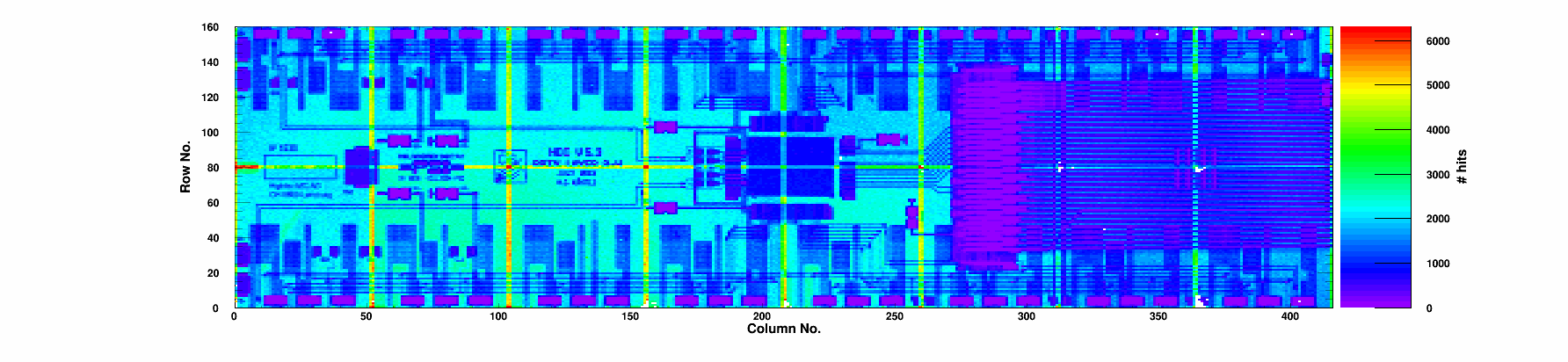

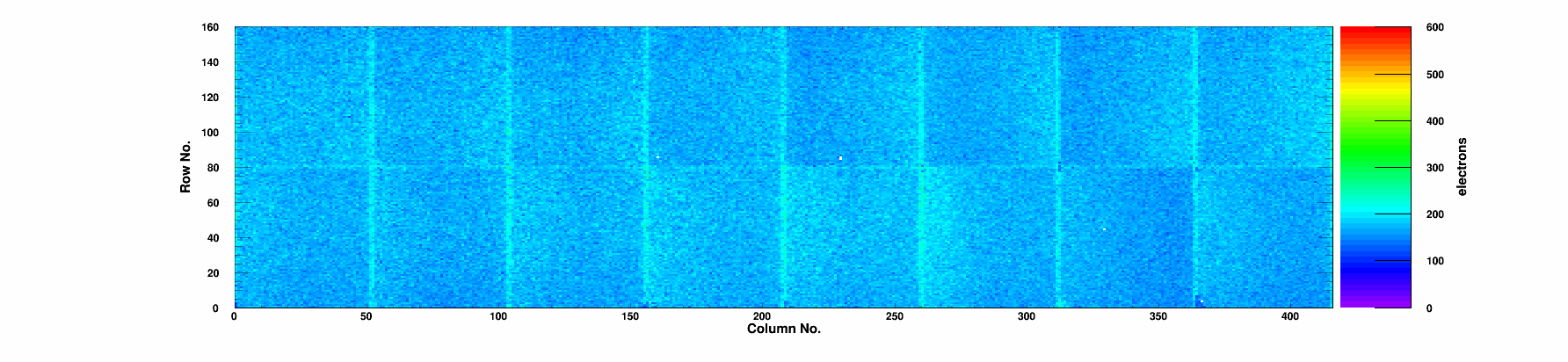

| Noise | Mean Noise | 171 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.88 | 99.38 | 0.34 | 23.9 | 71.1 | 1 | 0/0 | 0 | 1966 | 175 | 0 |
|
Chip 1
|
A
|
2 | 0 | 99.84 | 99.03 | 0.5 | 23.2 | 70.5 | 2 | 0/0 | 0 | 1952 | 169 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.86 | 99.16 | 0.41 | 20.3 | 62.2 | 1 | 0/0 | 0 | 1921 | 170 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.87 | 99.32 | 0.54 | 36.0 | 106.1 | 1 | 0/0 | 0 | 1971 | 169 | 2 |
|
Chip 4
|
A
|
1 | 0 | 99.89 | 99.40 | 0.38 | 39.6 | 116.1 | 0 | 0/0 | 0 | 2049 | 170 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.90 | 99.41 | 0.43 | 47.7 | 137.5 | 0 | 0/0 | 0 | 2119 | 170 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.34 | 0.81 | 42.4 | 124.2 | 0 | 0/0 | 0 | 2083 | 171 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.29 | 0.54 | 43.9 | 129.1 | 1 | 0/0 | 0 | 2087 | 173 | 0 |
|
Chip 8
|
A
|
5 | 0 | 99.88 | 99.37 | 0.5 | 44.3 | 129.6 | 5 | 0/0 | 0 | 2092 | 170 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.89 | 99.41 | 0.52 | 49.6 | 144.0 | 1 | 0/0 | 0 | 2140 | 169 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.89 | 99.36 | 0.53 | 51.7 | 148.5 | 3 | 0/0 | 0 | 2126 | 173 | 0 |
|
Chip 11
|
A
|
7 | 0 | 99.89 | 99.39 | 0.35 | 41.8 | 122.1 | 7 | 0/0 | 0 | 2081 | 176 | 0 |
|
Chip 12
|
A
|
7 | 0 | 99.88 | 99.35 | 0.36 | 43.4 | 127.3 | 7 | 0/0 | 0 | 2099 | 178 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.19 | 0.4 | 23.6 | 71.5 | 1 | 0/0 | 0 | 1972 | 175 | 0 |
|
Chip 14
|
A
|
6 | 0 | 99.88 | 99.33 | 0.46 | 23.3 | 71.1 | 5 | 0/0 | 0 | 1909 | 164 | 1 |
|
Chip 15
|
A
|
26 | 0 | 99.88 | 99.32 | 0.53 | 25.4 | 75.3 | 25 | 0/0 | 0 | 1927 | 167 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 17:15 | |
| TestDuration | Duration | 1:28:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
