Test Date: 2016-05-12 17:15
Analysis date: 2016-05-26 18:10
Analysis date: 2016-05-26 18:10
M2235 XRayHRQualification
Summary
| Module | Module | M2235 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 19 | |
| BumpBondingDefects | Bump Bonding Defects | 17 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

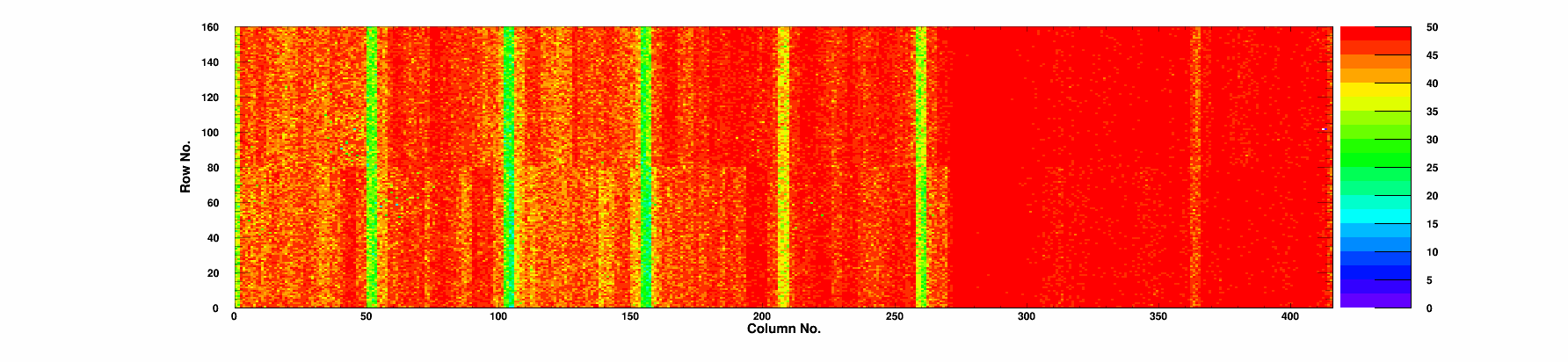

| Efficiency | Efficiency 50/120 | 99.88/99.33 | % |
| Noise | Mean Noise | 172 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.82 | 99.03 | 2.42 | 31.5 | 92.7 | 3 | 0/0 | 0 | 1923 | 178 | 2 |
|
Chip 1
|
A
|
2 | 0 | 99.87 | 99.28 | 0.56 | 30.3 | 90.7 | 2 | 0/0 | 0 | 1979 | 173 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.32 | 0.41 | 28.6 | 86.3 | 0 | 0/0 | 0 | 1989 | 170 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.89 | 99.38 | 0.49 | 53.6 | 153.5 | 0 | 0/0 | 0 | 2175 | 172 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.36 | 0.53 | 52.2 | 151.1 | 0 | 0/0 | 0 | 2155 | 166 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.37 | 0.66 | 66.6 | 187.9 | 0 | 0/0 | 0 | 2231 | 167 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.37 | 0.41 | 60.9 | 173.9 | 0 | 0/0 | 0 | 2213 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.36 | 0.91 | 63.9 | 182.2 | 0 | 0/0 | 0 | 2199 | 160 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.90 | 99.38 | 0.63 | 65.5 | 186.3 | 2 | 0/0 | 0 | 2220 | 164 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.39 | 0.73 | 62.1 | 177.4 | 0 | 0/0 | 0 | 2216 | 167 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.90 | 99.37 | 0.69 | 71.1 | 201.3 | 0 | 0/0 | 0 | 2249 | 167 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.40 | 0.51 | 59.5 | 171.9 | 0 | 0/0 | 0 | 2184 | 181 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.88 | 99.40 | 0.77 | 54.4 | 156.9 | 4 | 0/0 | 0 | 2155 | 176 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.33 | 0.55 | 32.7 | 98.1 | 0 | 0/0 | 0 | 2022 | 182 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.20 | 0.7 | 33.3 | 99.0 | 2 | 0/0 | 0 | 2021 | 184 | 0 |
|
Chip 15
|
A
|
4 | 0 | 99.88 | 99.33 | 0.38 | 32.7 | 96.9 | 4 | 0/0 | 0 | 2021 | 183 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 17:15 | |
| TestDuration | Duration | 1:28:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
