Test Date: 2016-05-12 17:15
Analysis date: 2016-05-26 18:04
Analysis date: 2016-05-26 18:04
M2234 XRayHRQualification
Summary
| Module | Module | M2234 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 17 | |
| BumpBondingDefects | Bump Bonding Defects | 16 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 165 | e- |

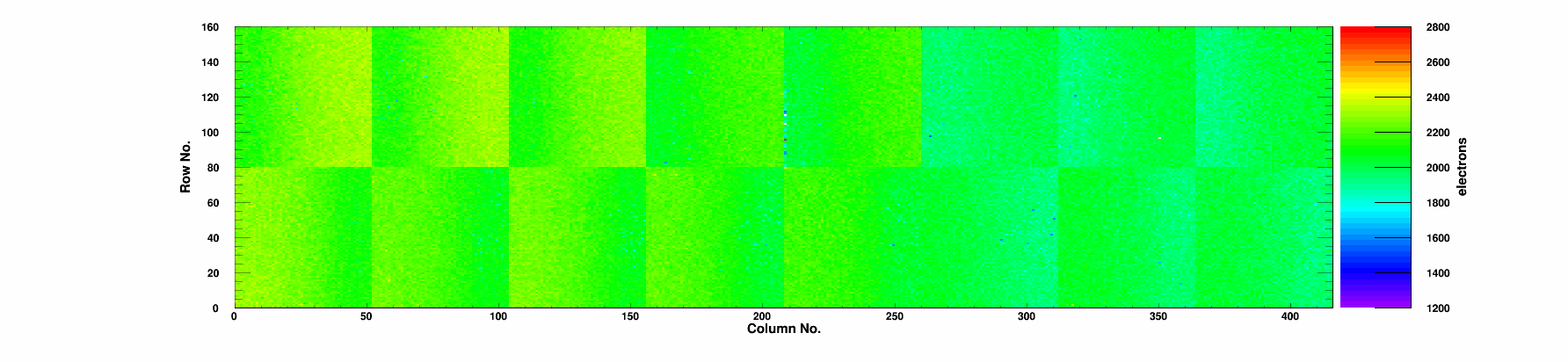

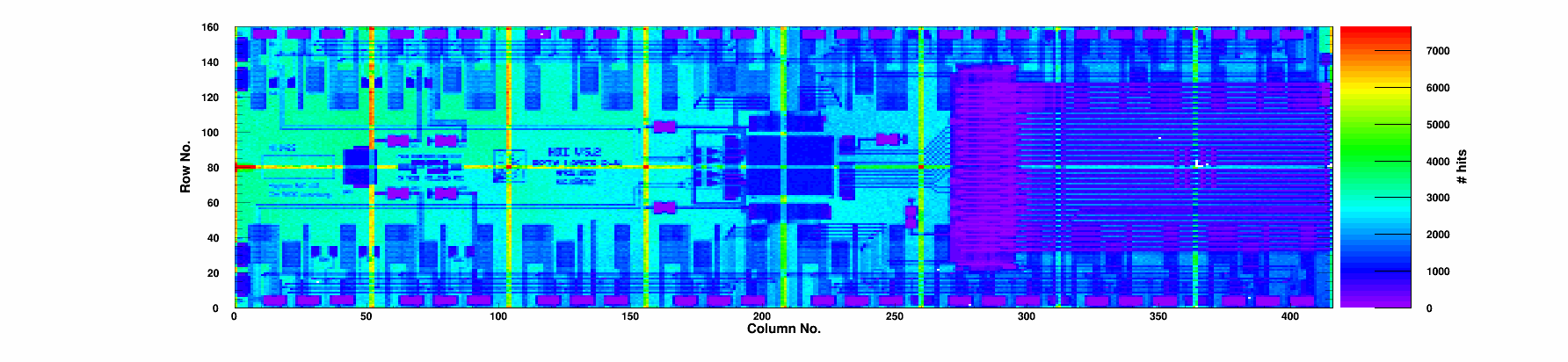

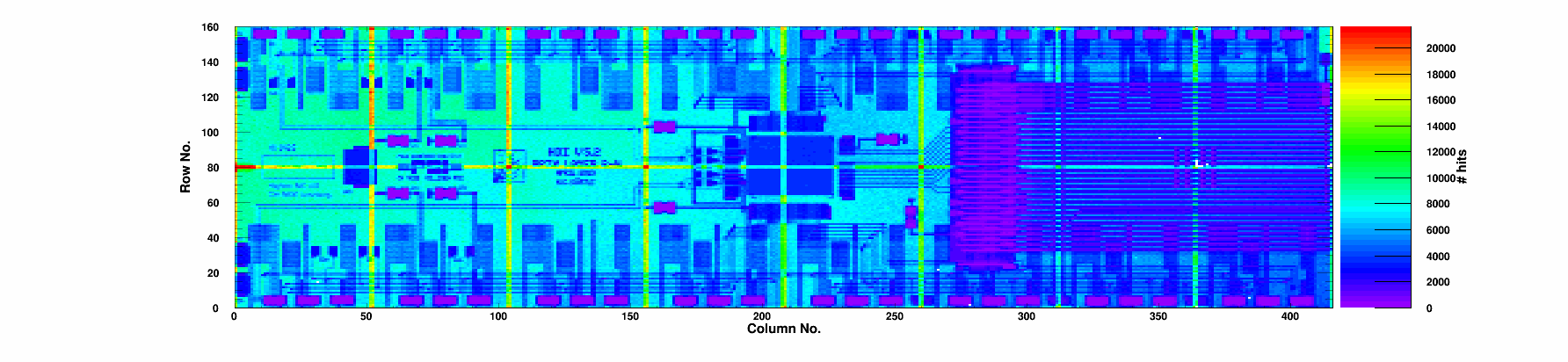

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
11 | 0 | 99.85 | 99.06 | 0.57 | 30.6 | 90.6 | 11 | 0/0 | 0 | 1992 | 179 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.87 | 99.35 | 0.55 | 29.7 | 89.6 | 0 | 0/0 | 0 | 1954 | 162 | 1 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.28 | 0.54 | 29.0 | 87.6 | 0 | 0/0 | 0 | 1985 | 170 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.24 | 0.87 | 45.7 | 133.2 | 0 | 0/0 | 0 | 2113 | 166 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.33 | 0.46 | 51.1 | 149.6 | 0 | 0/0 | 0 | 2133 | 163 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.34 | 0.59 | 64.2 | 181.5 | 0 | 0/0 | 0 | 2205 | 162 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.40 | 0.56 | 63.4 | 181.6 | 0 | 0/0 | 0 | 2227 | 166 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.37 | 0.76 | 67.2 | 190.4 | 0 | 0/0 | 0 | 2241 | 158 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.86 | 99.27 | 0.91 | 62.1 | 177.3 | 1 | 0/0 | 0 | 2214 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.31 | 0.77 | 55.1 | 158.9 | 0 | 0/0 | 0 | 2163 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.32 | 0.79 | 59.1 | 168.5 | 0 | 0/0 | 0 | 2175 | 160 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.89 | 99.35 | 0.66 | 49.3 | 143.0 | 0 | 0/0 | 0 | 2136 | 168 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.34 | 0.53 | 47.7 | 139.4 | 0 | 0/0 | 0 | 2117 | 170 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.85 | 99.26 | 0.78 | 25.5 | 77.7 | 2 | 0/0 | 0 | 1992 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.88 | 99.25 | 0.6 | 28.3 | 85.4 | 0 | 0/0 | 0 | 2006 | 166 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.85 | 99.21 | 0.56 | 26.8 | 80.0 | 2 | 0/0 | 0 | 1990 | 168 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 17:15 | |
| TestDuration | Duration | 1:28:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
