Test Date: 2016-05-12 17:15
Analysis date: 2016-05-26 17:58
Analysis date: 2016-05-26 17:58
M2233 XRayHRQualification
Summary
| Module | Module | M2233 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 102 | |
| BumpBondingDefects | Bump Bonding Defects | 99 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.31 | % |

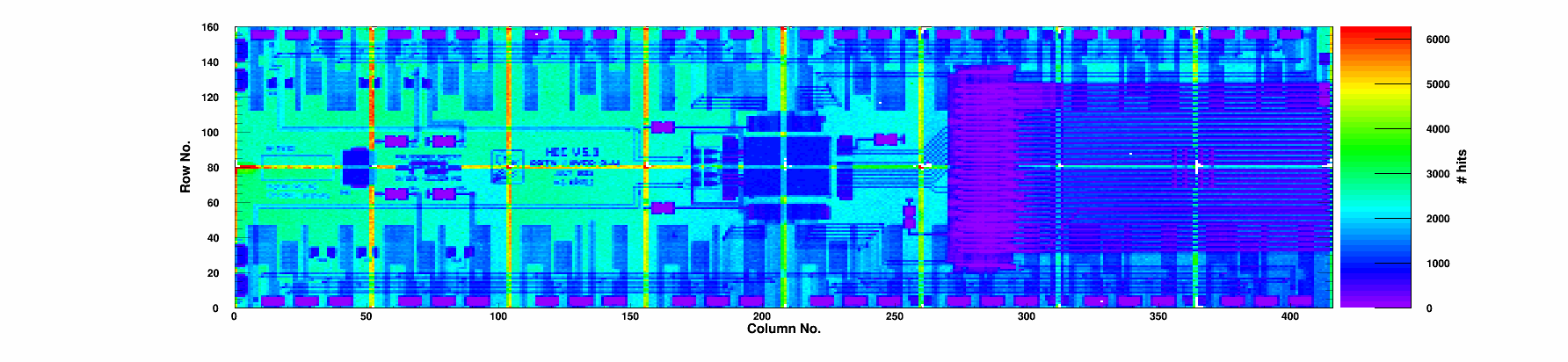

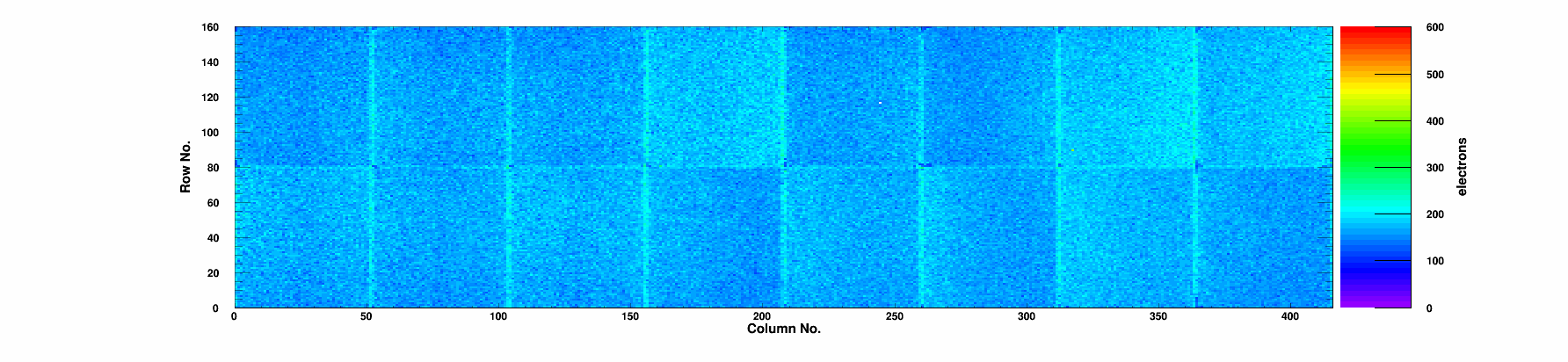

| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
23 | 0 | 99.89 | 99.39 | 0.4 | 28.1 | 82.6 | 23 | 0/0 | 0 | 1966 | 180 | 0 |
|
Chip 1
|
A
|
10 | 0 | 99.88 | 99.39 | 0.4 | 29.7 | 88.0 | 9 | 0/0 | 0 | 2004 | 184 | 1 |
|
Chip 2
|
A
|
15 | 0 | 99.87 | 99.16 | 0.54 | 22.7 | 68.9 | 15 | 0/0 | 0 | 1954 | 162 | 0 |
|
Chip 3
|
A
|
11 | 0 | 99.88 | 99.35 | 0.33 | 42.4 | 122.0 | 10 | 0/0 | 0 | 2080 | 163 | 1 |
|
Chip 4
|
A
|
5 | 0 | 99.89 | 99.36 | 0.65 | 47.0 | 136.2 | 5 | 0/0 | 0 | 2136 | 181 | 0 |
|
Chip 5
|
A
|
4 | 0 | 99.86 | 99.28 | 1.16 | 55.1 | 156.8 | 3 | 0/0 | 0 | 2159 | 164 | 0 |
|
Chip 6
|
A
|
5 | 0 | 99.88 | 99.35 | 0.7 | 53.0 | 151.9 | 5 | 0/0 | 0 | 2147 | 164 | 0 |
|
Chip 7
|
A
|
8 | 0 | 99.88 | 99.36 | 0.8 | 54.3 | 155.2 | 8 | 0/0 | 0 | 2161 | 159 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.28 | 0.64 | 54.6 | 157.1 | 0 | 0/0 | 0 | 2159 | 170 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.87 | 99.32 | 0.96 | 46.4 | 133.8 | 1 | 0/0 | 0 | 2124 | 166 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.36 | 0.62 | 54.2 | 154.6 | 0 | 0/0 | 0 | 2162 | 171 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.89 | 99.32 | 0.45 | 39.6 | 115.9 | 0 | 0/0 | 0 | 2046 | 164 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.88 | 99.39 | 0.46 | 39.5 | 114.8 | 3 | 0/0 | 0 | 2085 | 169 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.88 | 99.35 | 0.34 | 21.8 | 65.8 | 3 | 0/0 | 0 | 1950 | 167 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.88 | 99.31 | 0.55 | 24.2 | 72.6 | 2 | 0/0 | 0 | 1965 | 175 | 0 |
|
Chip 15
|
A
|
12 | 0 | 99.85 | 99.06 | 0.48 | 22.6 | 67.6 | 12 | 0/0 | 0 | 1939 | 162 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 17:15 | |
| TestDuration | Duration | 1:28:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
