Test Date: 2016-05-12 15:30
Analysis date: 2016-05-26 17:52
Analysis date: 2016-05-26 17:52
M2232 XRayHRQualification
Summary
| Module | Module | M2232 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 269 | |

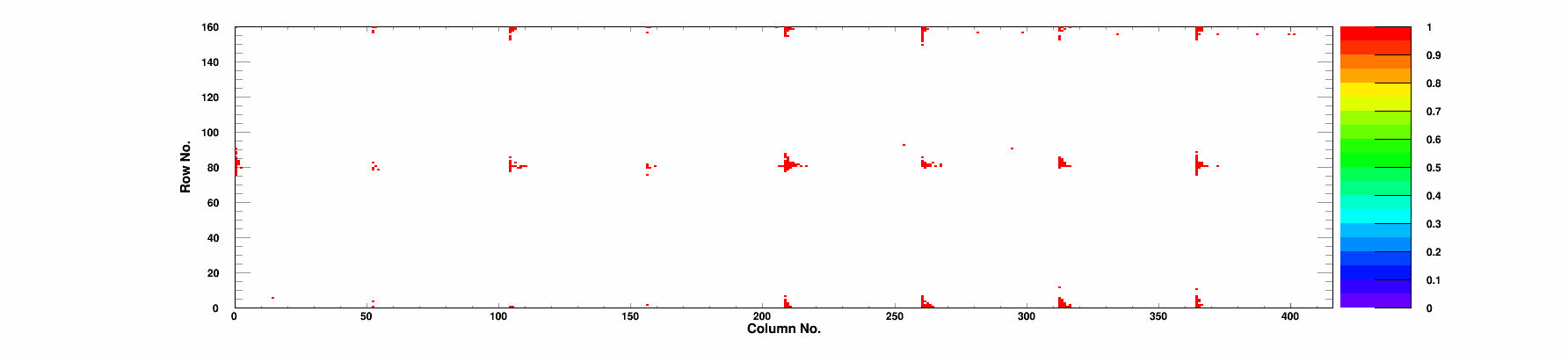

| BumpBondingDefects | Bump Bonding Defects | 269 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.24 | % |
| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
32 | 0 | 99.87 | 99.17 | 0.4 | 19.6 | 60.2 | 32 | 0/0 | 0 | 1914 | 164 | 0 |
|
Chip 1
|
A
|
26 | 0 | 99.86 | 99.13 | 0.4 | 22.4 | 68.3 | 26 | 0/0 | 0 | 1903 | 184 | 0 |
|
Chip 2
|
A
|
30 | 0 | 99.86 | 99.16 | 0.32 | 17.3 | 54.0 | 30 | 0/0 | 0 | 1895 | 162 | 0 |
|
Chip 3
|
A
|
38 | 0 | 99.85 | 99.25 | 1.84 | 36.7 | 108.4 | 38 | 0/0 | 0 | 2045 | 177 | 0 |
|
Chip 4
|
A
|
9 | 0 | 99.87 | 99.25 | 0.63 | 38.0 | 113.0 | 9 | 0/0 | 0 | 2061 | 175 | 0 |
|
Chip 5
|
A
|
23 | 0 | 99.89 | 99.39 | 0.47 | 41.0 | 119.7 | 23 | 0/0 | 0 | 2063 | 169 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.86 | 99.09 | 0.81 | 40.6 | 120.0 | 6 | 0/0 | 0 | 2064 | 170 | 0 |
|
Chip 7
|
A
|
13 | 0 | 99.89 | 99.38 | 0.91 | 38.8 | 114.6 | 13 | 0/0 | 0 | 2049 | 169 | 0 |
|
Chip 8
|
A
|
6 | 0 | 99.87 | 99.35 | 0.67 | 46.1 | 135.1 | 6 | 0/0 | 0 | 2102 | 167 | 0 |
|
Chip 9
|
A
|
5 | 0 | 99.89 | 99.24 | 1.0 | 50.1 | 145.4 | 5 | 0/0 | 0 | 2127 | 175 | 0 |
|
Chip 10
|
A
|
7 | 0 | 99.89 | 99.38 | 0.56 | 43.8 | 127.7 | 7 | 0/0 | 0 | 2095 | 164 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.87 | 99.35 | 0.31 | 37.2 | 111.4 | 4 | 0/0 | 0 | 2049 | 164 | 0 |
|
Chip 12
|
A
|
16 | 0 | 99.89 | 99.37 | 0.66 | 31.2 | 94.6 | 16 | 0/0 | 0 | 2018 | 157 | 0 |
|
Chip 13
|
A
|
17 | 0 | 99.85 | 99.23 | 0.45 | 23.2 | 70.8 | 17 | 0/0 | 0 | 1963 | 175 | 0 |
|
Chip 14
|
A
|
18 | 0 | 99.86 | 99.05 | 0.47 | 23.2 | 70.5 | 18 | 0/0 | 0 | 1947 | 165 | 0 |
|
Chip 15
|
A
|
19 | 0 | 99.84 | 99.00 | 0.47 | 22.5 | 67.9 | 19 | 0/0 | 0 | 1950 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 15:30 | |
| TestDuration | Duration | 1:28:7 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
