Test Date: 2016-05-12 15:30
Analysis date: 2016-05-26 17:46
Analysis date: 2016-05-26 17:46
M2231 XRayHRQualification
Summary
| Module | Module | M2231 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 267 | |

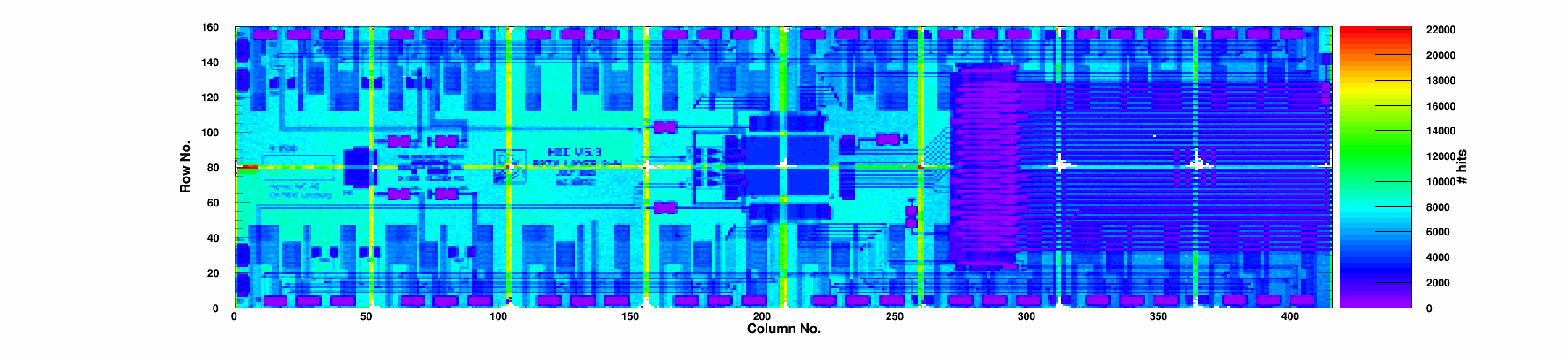

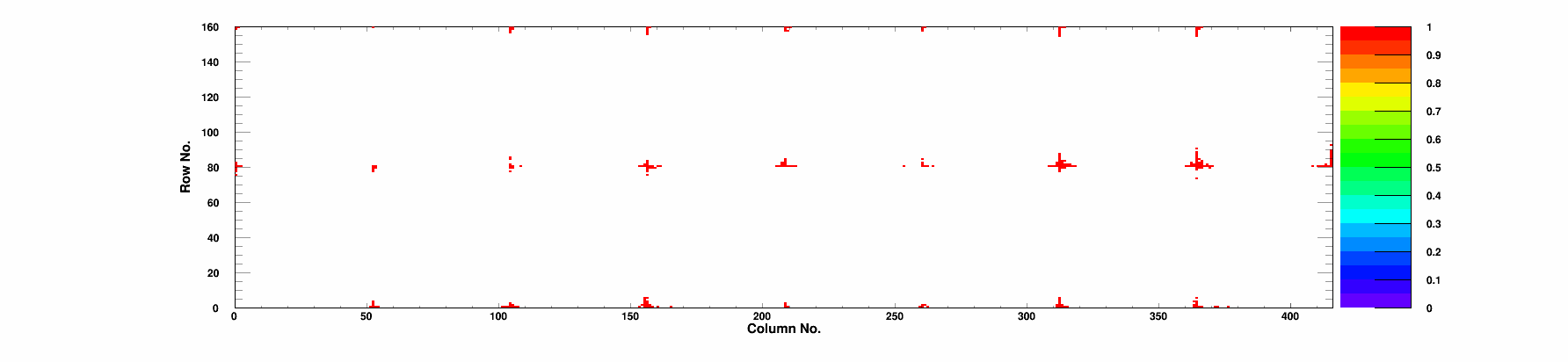

| BumpBondingDefects | Bump Bonding Defects | 263 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

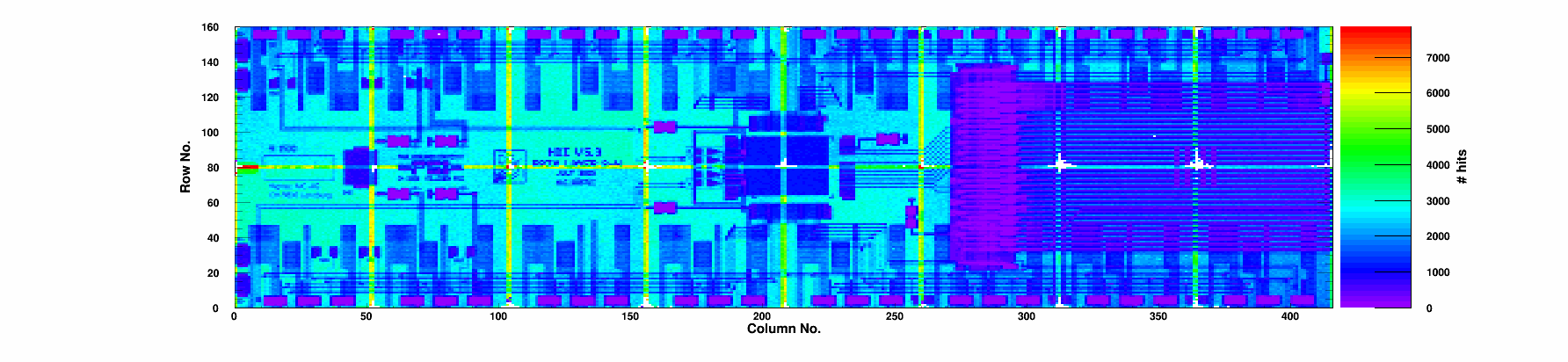

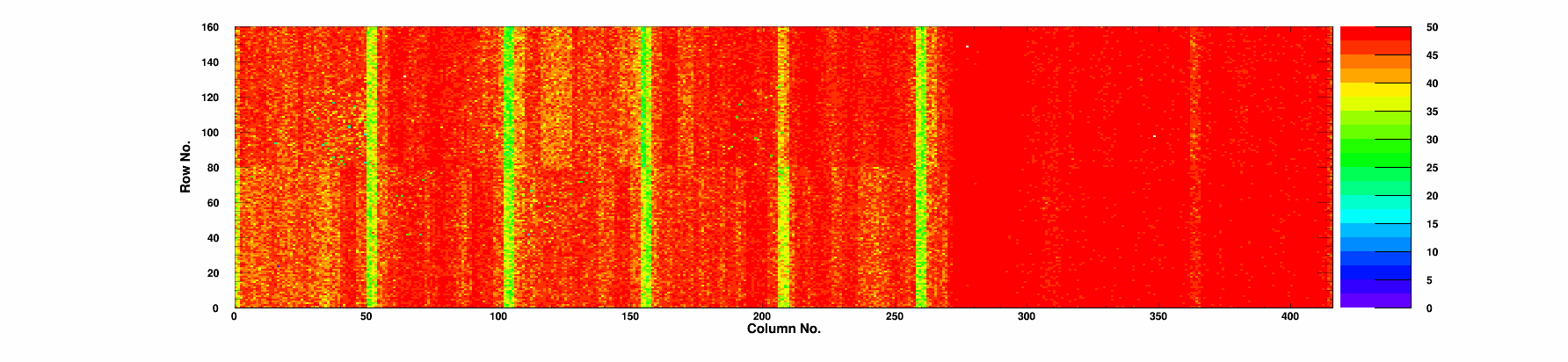

| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |

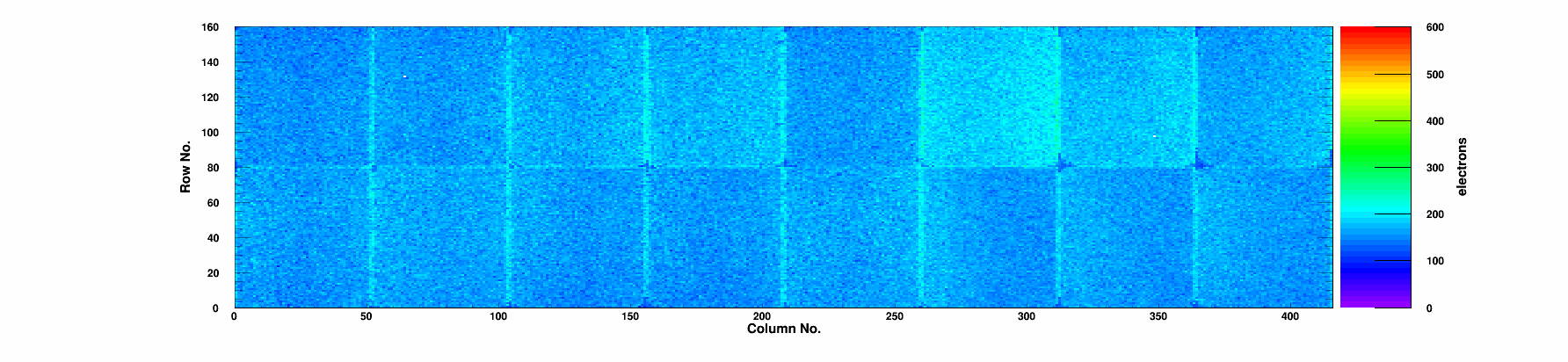

| Noise | Mean Noise | 165 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
50 | 0 | 99.86 | 99.01 | 0.94 | 30.4 | 89.3 | 50 | 0/0 | 0 | 1988 | 166 | 0 |
|
Chip 1
|
A
|
37 | 0 | 99.88 | 99.38 | 0.62 | 33.7 | 99.5 | 36 | 0/0 | 0 | 2005 | 178 | 1 |
|
Chip 2
|
A
|
18 | 0 | 99.84 | 99.23 | 1.09 | 31.1 | 93.6 | 17 | 0/0 | 0 | 1989 | 189 | 0 |
|
Chip 3
|
A
|
16 | 0 | 99.88 | 99.34 | 0.73 | 47.7 | 137.7 | 16 | 0/0 | 0 | 2123 | 160 | 0 |
|
Chip 4
|
A
|
19 | 0 | 99.87 | 99.36 | 0.98 | 52.4 | 151.6 | 19 | 0/0 | 0 | 2142 | 173 | 0 |
|
Chip 5
|
A
|
16 | 0 | 99.87 | 99.33 | 0.77 | 64.1 | 183.2 | 16 | 0/0 | 0 | 2209 | 168 | 0 |
|
Chip 6
|
A
|
4 | 0 | 99.90 | 99.39 | 0.7 | 52.9 | 154.0 | 3 | 0/0 | 0 | 2113 | 160 | 1 |
|
Chip 7
|
A
|
8 | 0 | 99.85 | 99.29 | 1.25 | 55.6 | 161.8 | 8 | 0/0 | 0 | 2143 | 154 | 0 |
|
Chip 8
|
A
|
6 | 0 | 99.88 | 99.34 | 1.23 | 61.7 | 178.3 | 5 | 0/0 | 0 | 2194 | 160 | 0 |
|
Chip 9
|
A
|
13 | 0 | 99.88 | 99.36 | 1.03 | 54.1 | 157.3 | 13 | 0/0 | 0 | 2153 | 165 | 0 |
|
Chip 10
|
A
|
18 | 0 | 99.88 | 99.39 | 0.71 | 59.2 | 170.0 | 18 | 0/0 | 0 | 2153 | 159 | 0 |
|
Chip 11
|
A
|
17 | 0 | 99.86 | 99.22 | 0.76 | 52.7 | 152.7 | 17 | 0/0 | 0 | 2159 | 158 | 0 |
|
Chip 12
|
A
|
5 | 0 | 99.87 | 99.25 | 0.76 | 53.2 | 153.2 | 5 | 0/0 | 0 | 2163 | 165 | 0 |
|
Chip 13
|
A
|
6 | 0 | 99.84 | 99.03 | 0.68 | 27.8 | 84.1 | 6 | 0/0 | 0 | 2004 | 162 | 0 |
|
Chip 14
|
A
|
18 | 0 | 99.88 | 99.37 | 0.5 | 29.9 | 89.3 | 18 | 0/0 | 0 | 2017 | 161 | 0 |
|
Chip 15
|
A
|
16 | 0 | 99.89 | 99.27 | 0.61 | 29.7 | 88.0 | 16 | 0/0 | 0 | 1987 | 161 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 15:30 | |
| TestDuration | Duration | 1:28:7 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
