Test Date: 2016-05-12 13:37
Analysis date: 2016-05-26 17:40
Analysis date: 2016-05-26 17:40
M2230 XRayHRQualification
Summary
| Module | Module | M2230 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 1 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

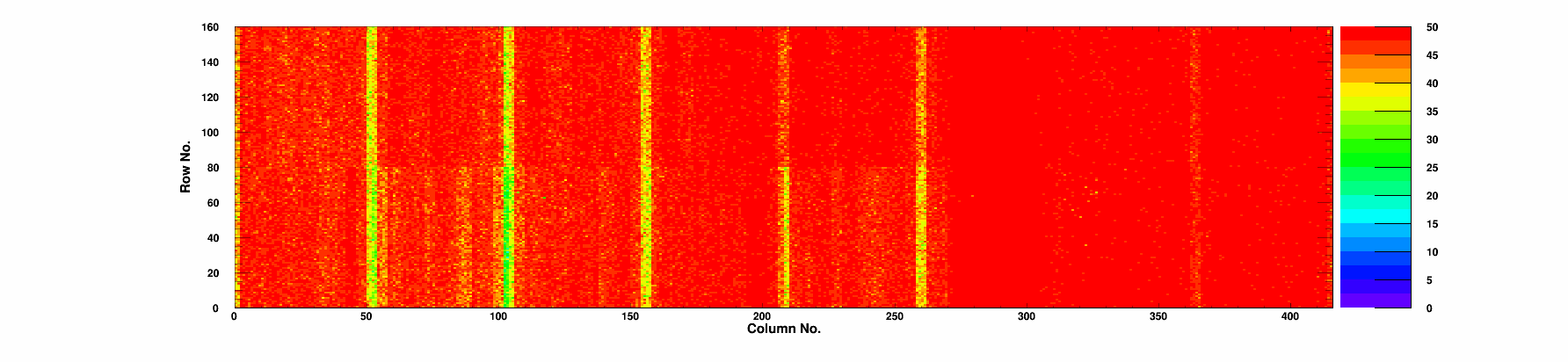

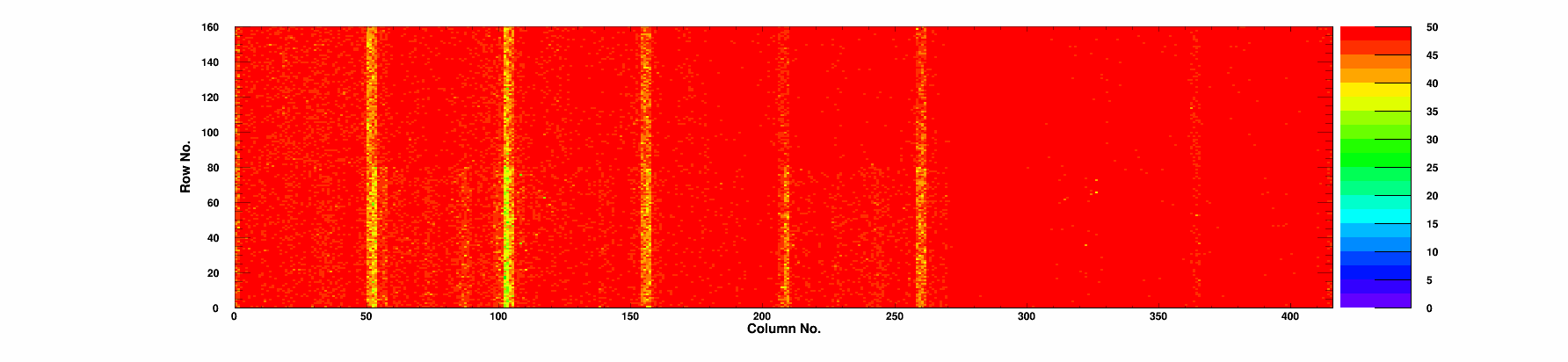

| Efficiency | Efficiency 50/120 | 99.87/99.22 | % |
| Noise | Mean Noise | 170 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.88 | 99.28 | 0.44 | 26.7 | 80.0 | 0 | 0/0 | 0 | 1980 | 184 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 98.98 | 0.5 | 25.4 | 76.9 | 0 | 0/0 | 0 | 1963 | 174 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.31 | 0.28 | 21.4 | 65.7 | 0 | 0/0 | 0 | 1918 | 172 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.36 | 0.55 | 35.6 | 105.6 | 0 | 0/0 | 0 | 2042 | 166 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.32 | 0.53 | 38.1 | 113.2 | 0 | 0/0 | 0 | 2031 | 164 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.37 | 0.41 | 47.3 | 136.3 | 0 | 0/0 | 0 | 2114 | 162 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.85 | 99.20 | 0.72 | 44.6 | 129.9 | 0 | 0/0 | 0 | 2102 | 164 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.86 | 99.10 | 0.8 | 46.5 | 135.5 | 1 | 0/0 | 0 | 2104 | 168 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.15 | 0.9 | 45.5 | 132.8 | 0 | 0/0 | 0 | 2089 | 166 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.24 | 0.73 | 55.9 | 162.5 | 0 | 0/0 | 0 | 2175 | 176 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.33 | 0.64 | 50.0 | 144.4 | 0 | 0/0 | 0 | 2113 | 164 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.32 | 0.66 | 41.9 | 123.4 | 0 | 0/0 | 0 | 2084 | 166 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.03 | 0.61 | 41.5 | 122.3 | 0 | 0/0 | 0 | 2068 | 172 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.88 | 99.31 | 0.29 | 25.1 | 75.8 | 0 | 0/0 | 0 | 1965 | 176 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.23 | 1.04 | 26.6 | 80.2 | 0 | 0/0 | 0 | 1971 | 176 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 99.04 | 0.35 | 25.2 | 75.7 | 0 | 0/0 | 0 | 1942 | 173 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 13:37 | |
| TestDuration | Duration | 1:28:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
