Test Date: 2016-05-09 10:18
Analysis date: 2016-05-26 17:09
Analysis date: 2016-05-26 17:09
M2225 XRayHRQualification
Summary
| Module | Module | M2225 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 5 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.25 | % |
| Noise | Mean Noise | 175 | e- |

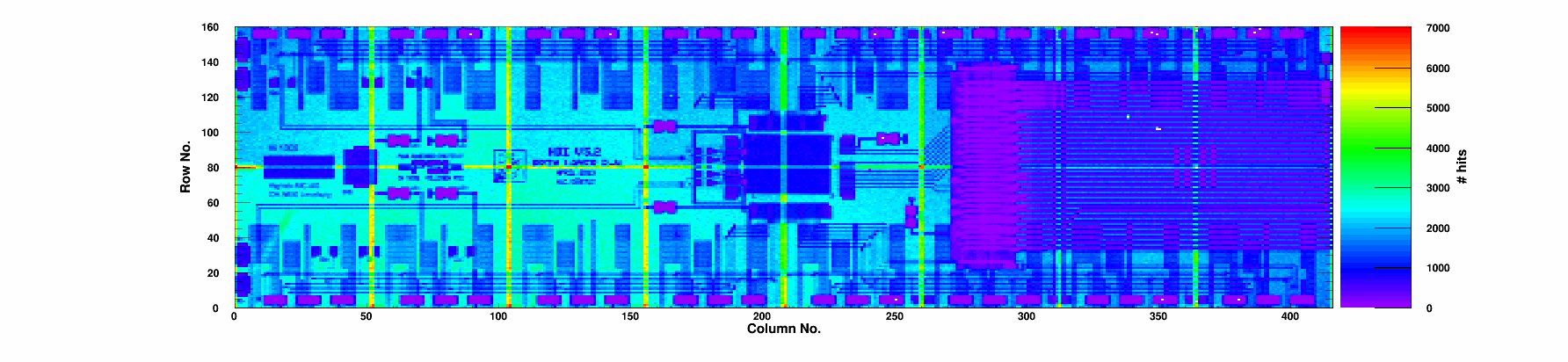

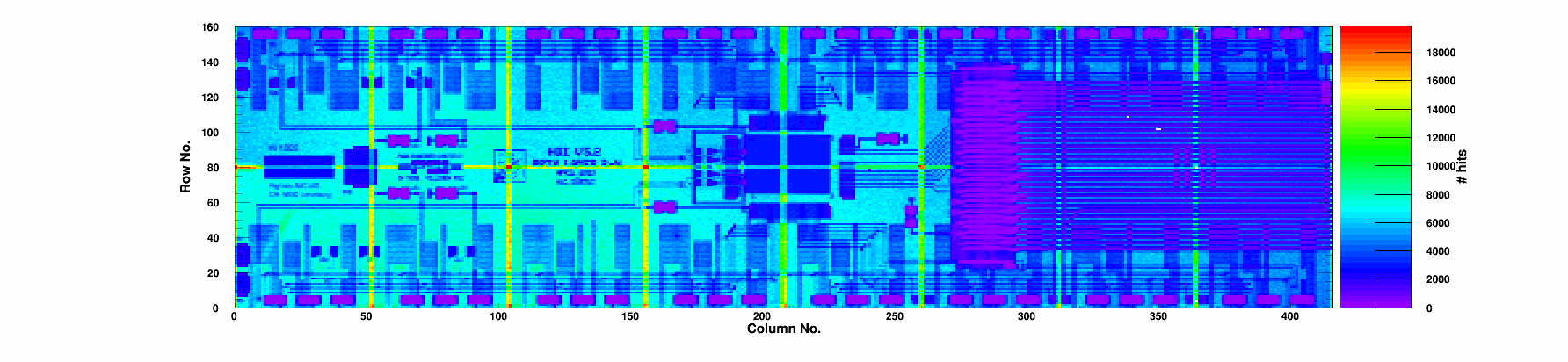

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.85 | 99.02 | 0.34 | 21.7 | 65.5 | 3 | 0/0 | 0 | 1945 | 176 | 0 |
|
Chip 1
|
A
|
3 | 0 | 99.85 | 99.05 | 0.5 | 23.5 | 70.7 | 0 | 0/0 | 0 | 1888 | 177 | 2 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.02 | 0.61 | 21.2 | 64.3 | 0 | 0/0 | 0 | 1946 | 177 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.16 | 0.7 | 41.7 | 122.0 | 0 | 0/0 | 0 | 2053 | 174 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.34 | 0.62 | 40.0 | 116.7 | 0 | 0/0 | 0 | 2072 | 172 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.34 | 0.58 | 50.5 | 144.3 | 0 | 0/0 | 0 | 2112 | 175 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.34 | 0.8 | 50.0 | 144.6 | 0 | 0/0 | 0 | 2128 | 175 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.34 | 0.46 | 44.5 | 129.4 | 0 | 0/0 | 0 | 2088 | 172 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.35 | 0.54 | 52.6 | 151.6 | 0 | 0/0 | 0 | 2161 | 178 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.38 | 0.72 | 54.3 | 155.7 | 0 | 0/0 | 0 | 2152 | 173 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.37 | 0.73 | 60.0 | 170.7 | 0 | 0/0 | 0 | 2210 | 175 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.31 | 0.49 | 46.9 | 135.6 | 0 | 0/0 | 0 | 2120 | 168 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.86 | 99.26 | 0.77 | 45.2 | 131.3 | 0 | 0/0 | 0 | 2054 | 182 | 1 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.06 | 0.56 | 23.9 | 71.9 | 0 | 0/0 | 0 | 1962 | 170 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.29 | 0.51 | 27.5 | 82.1 | 0 | 0/0 | 0 | 1978 | 178 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.87 | 99.31 | 0.41 | 25.5 | 75.9 | 2 | 0/0 | 0 | 1963 | 172 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-09 | |
| TestTime | Test Time | 10:18 | |
| TestDuration | Duration | 1:27:38 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
