Test Date: 2016-05-04 10:00
Analysis date: 2016-05-26 16:44
Analysis date: 2016-05-26 16:44
M2221 XRayHRQualification
Summary
| Module | Module | M2221 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 52 | |
| BumpBondingDefects | Bump Bonding Defects | 52 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.25 | % |

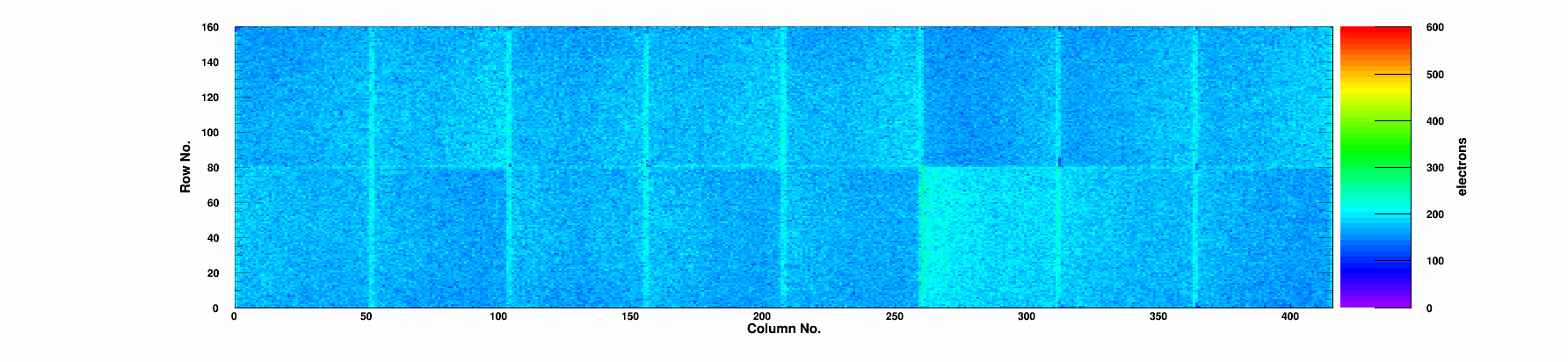

| Noise | Mean Noise | 173 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
6 | 0 | 99.87 | 99.08 | 0.42 | 23.8 | 71.2 | 6 | 0/0 | 0 | 1927 | 176 | 0 |
|
Chip 1
|
A
|
9 | 0 | 99.86 | 99.09 | 0.48 | 23.7 | 71.5 | 9 | 0/0 | 0 | 1964 | 169 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.86 | 99.08 | 0.59 | 18.8 | 58.1 | 1 | 0/0 | 0 | 1904 | 163 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.41 | 0.35 | 38.8 | 113.7 | 0 | 0/0 | 0 | 2049 | 176 | 0 |
|
Chip 4
|
A
|
9 | 0 | 99.82 | 99.25 | 5.09 | 38.6 | 114.2 | 9 | 0/0 | 0 | 2070 | 177 | 0 |
|
Chip 5
|
A
|
5 | 0 | 99.88 | 99.31 | 0.77 | 50.9 | 147.6 | 5 | 0/0 | 0 | 2155 | 171 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.39 | 0.41 | 44.8 | 131.1 | 1 | 0/0 | 0 | 2100 | 177 | 0 |
|
Chip 7
|
A
|
5 | 0 | 99.89 | 99.36 | 0.46 | 37.4 | 111.5 | 5 | 0/0 | 0 | 2037 | 168 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.88 | 99.34 | 0.53 | 42.0 | 124.2 | 1 | 0/0 | 0 | 2064 | 173 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.84 | 99.05 | 0.63 | 43.6 | 128.1 | 0 | 0/0 | 0 | 2074 | 166 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.90 | 99.38 | 0.56 | 51.3 | 147.7 | 0 | 0/0 | 0 | 2138 | 171 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.37 | 0.51 | 44.6 | 130.6 | 0 | 0/0 | 0 | 2109 | 170 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.36 | 0.44 | 39.9 | 116.9 | 0 | 0/0 | 0 | 2070 | 169 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.35 | 0.51 | 25.9 | 78.3 | 0 | 0/0 | 0 | 1974 | 196 | 0 |
|
Chip 14
|
A
|
7 | 0 | 99.85 | 99.09 | 0.65 | 27.9 | 83.6 | 7 | 0/0 | 0 | 1992 | 178 | 0 |
|
Chip 15
|
A
|
8 | 0 | 99.84 | 99.02 | 0.7 | 26.1 | 77.2 | 8 | 0/0 | 0 | 1956 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-04 | |
| TestTime | Test Time | 10:00 | |
| TestDuration | Duration | 1:26:36 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
