Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Analysis date: 2016-05-26 16:19
M2217 XRayHRQualification
Summary
| Module | Module | M2217 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 280 | |

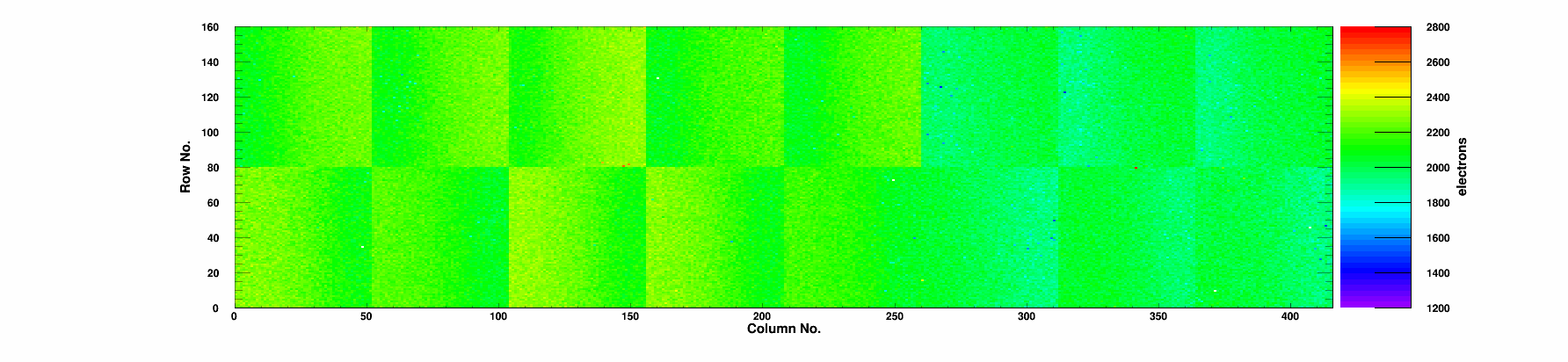

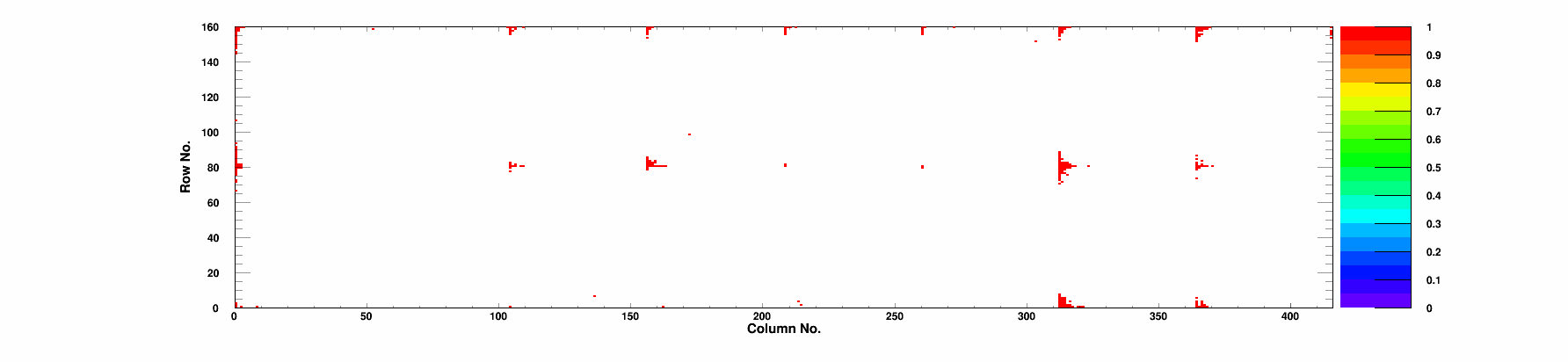

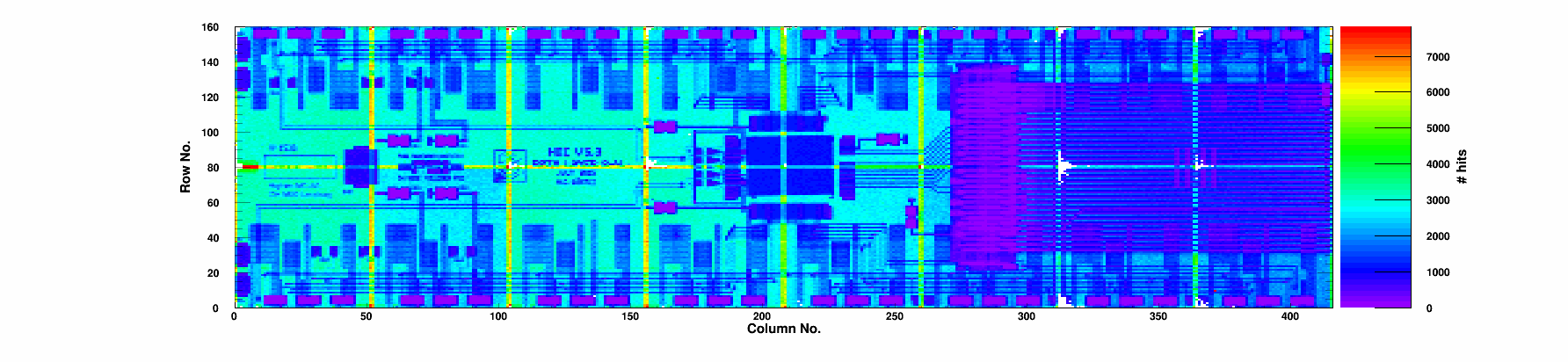

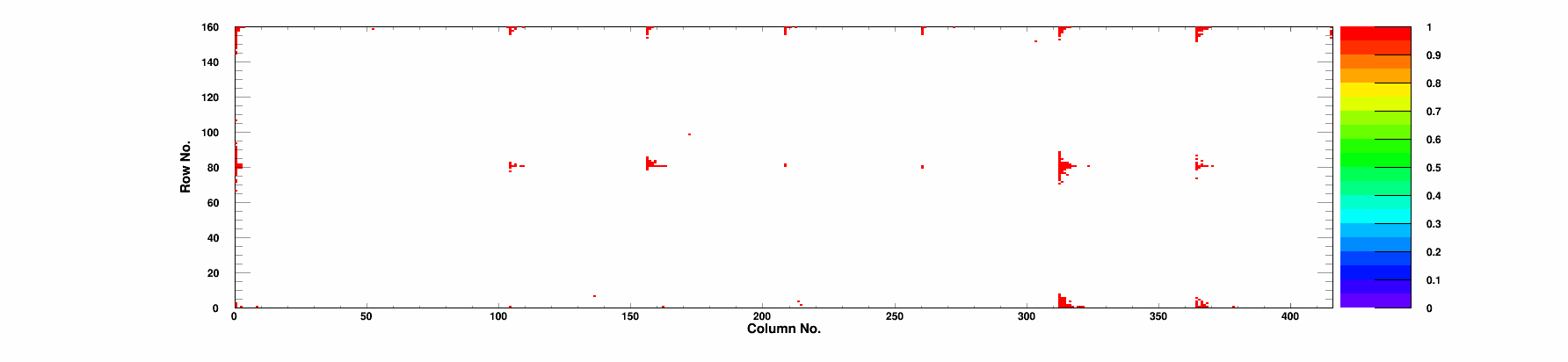

| BumpBondingDefects | Bump Bonding Defects | 277 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.34 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
40 | 0 | 99.88 | 99.37 | 0.48 | 28.3 | 83.7 | 40 | 0/0 | 0 | 1994 | 161 | 0 |
|
Chip 1
|
A
|
39 | 0 | 99.89 | 99.35 | 0.42 | 29.2 | 87.3 | 39 | 0/0 | 0 | 1991 | 163 | 0 |
|
Chip 2
|
A
|
9 | 0 | 99.86 | 99.33 | 0.46 | 28.6 | 86.4 | 9 | 0/0 | 0 | 1991 | 171 | 0 |
|
Chip 3
|
A
|
10 | 0 | 99.88 | 99.35 | 0.41 | 50.9 | 146.9 | 10 | 0/0 | 0 | 2156 | 168 | 0 |
|
Chip 4
|
A
|
30 | 0 | 99.89 | 99.43 | 0.49 | 52.3 | 151.2 | 30 | 0/0 | 0 | 2145 | 170 | 0 |
|
Chip 5
|
A
|
18 | 0 | 99.90 | 99.37 | 0.75 | 63.9 | 181.5 | 18 | 0/0 | 0 | 2217 | 161 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.89 | 99.39 | 0.59 | 57.6 | 166.1 | 2 | 0/0 | 0 | 2174 | 163 | 0 |
|
Chip 7
|
A
|
38 | 0 | 99.87 | 99.35 | 0.45 | 61.5 | 175.7 | 38 | 0/0 | 0 | 2176 | 161 | 0 |
|
Chip 8
|
A
|
16 | 0 | 99.86 | 99.36 | 0.66 | 63.5 | 182.7 | 15 | 0/0 | 0 | 2193 | 169 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.37 | 0.52 | 52.8 | 152.8 | 0 | 0/0 | 0 | 2141 | 157 | 0 |
|
Chip 10
|
A
|
4 | 0 | 99.87 | 99.38 | 0.64 | 65.3 | 185.0 | 4 | 0/0 | 0 | 2211 | 165 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.87 | 99.34 | 0.74 | 56.1 | 161.9 | 3 | 0/0 | 0 | 2188 | 173 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.88 | 99.32 | 0.61 | 50.6 | 146.3 | 2 | 0/0 | 0 | 2124 | 166 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.88 | 99.28 | 0.71 | 27.0 | 82.1 | 1 | 0/0 | 0 | 1982 | 164 | 0 |
|
Chip 14
|
B
|
49 | 0 | 99.85 | 99.07 | 0.7 | 29.6 | 88.8 | 49 | 0/0 | 0 | 2006 | 164 | 0 |
|
Chip 15
|
A
|
18 | 0 | 99.88 | 99.33 | 0.43 | 29.9 | 88.1 | 17 | 0/0 | 0 | 1949 | 171 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-25 | |
| TestTime | Test Time | 11:13 | |
| TestDuration | Duration | 1:22:26 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
