Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:10
Analysis date: 2016-05-26 16:10
M2216 XRayHRQualification
Summary
| Module | Module | M2216 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 180 | |

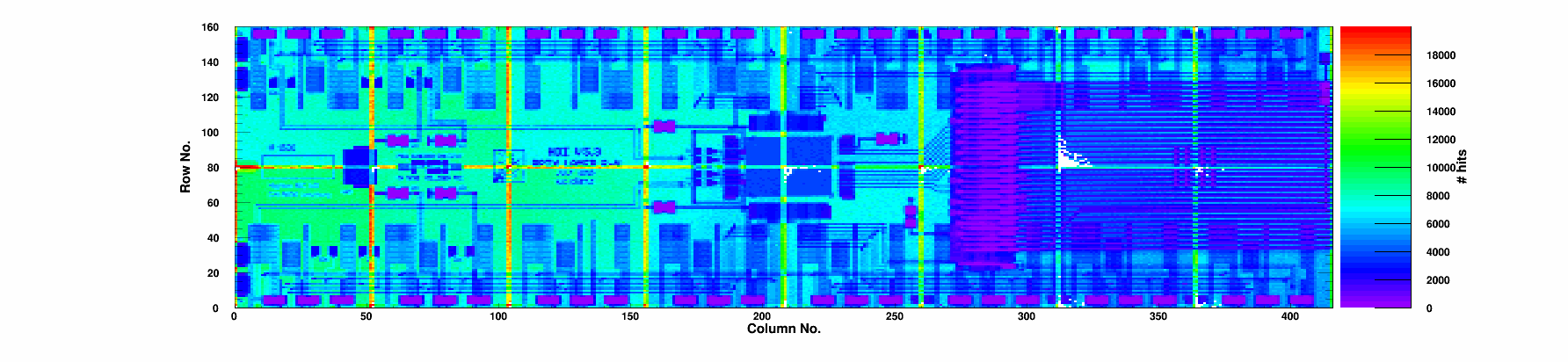

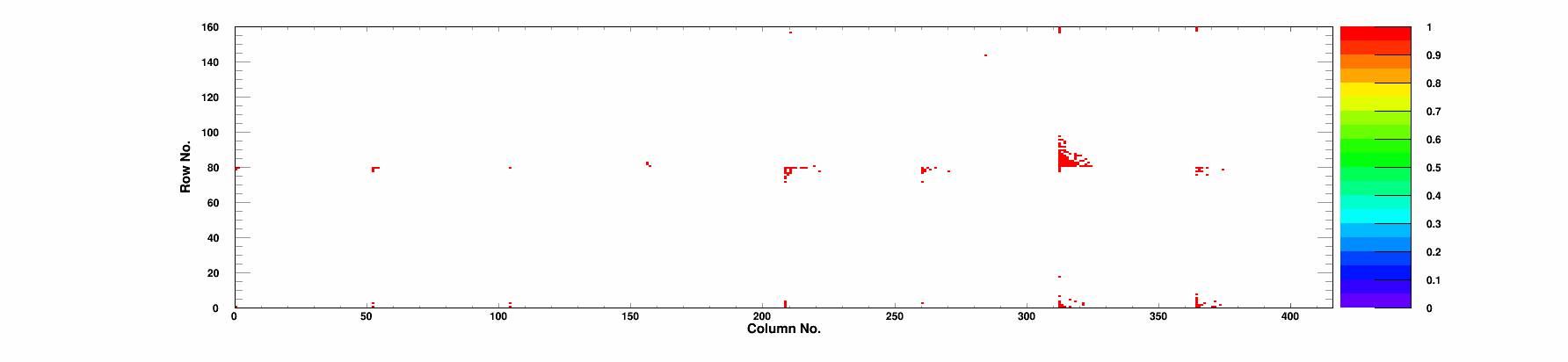

| BumpBondingDefects | Bump Bonding Defects | 180 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

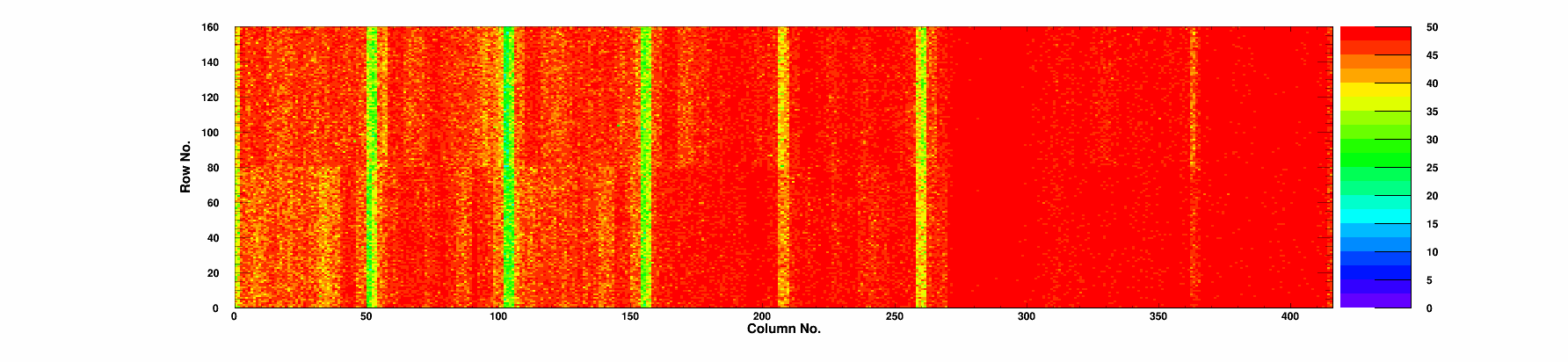

| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |
| Noise | Mean Noise | 161 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.88 | 99.35 | 0.45 | 28.6 | 84.8 | 3 | 0/0 | 0 | 1967 | 160 | 0 |
|
Chip 1
|
B
|
78 | 0 | 99.84 | 99.00 | 0.6 | 33.5 | 98.7 | 78 | 0/0 | 0 | 2018 | 172 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.84 | 99.05 | 0.53 | 26.6 | 81.5 | 1 | 0/0 | 0 | 1960 | 164 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.87 | 99.37 | 0.54 | 44.1 | 129.5 | 2 | 0/0 | 0 | 2098 | 156 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.87 | 99.36 | 0.48 | 50.0 | 145.2 | 3 | 0/0 | 0 | 2116 | 161 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.37 | 0.58 | 58.0 | 165.3 | 0 | 0/0 | 0 | 2182 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.33 | 0.48 | 60.1 | 172.3 | 0 | 0/0 | 0 | 2167 | 161 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.36 | 0.72 | 57.2 | 164.1 | 0 | 0/0 | 0 | 2169 | 150 | 0 |
|
Chip 8
|
A
|
4 | 0 | 99.88 | 99.43 | 0.57 | 65.0 | 188.4 | 4 | 0/0 | 0 | 2233 | 169 | 0 |
|
Chip 9
|
A
|
7 | 0 | 99.87 | 99.32 | 0.47 | 56.9 | 164.3 | 7 | 0/0 | 0 | 2162 | 160 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.89 | 99.36 | 0.47 | 62.6 | 178.6 | 3 | 0/0 | 0 | 2187 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.89 | 99.37 | 0.5 | 43.5 | 129.1 | 0 | 0/0 | 0 | 2086 | 157 | 0 |
|
Chip 12
|
A
|
24 | 0 | 99.88 | 99.36 | 0.56 | 45.6 | 133.6 | 24 | 0/0 | 0 | 2093 | 168 | 0 |
|
Chip 13
|
A
|
12 | 0 | 99.83 | 99.11 | 0.67 | 25.3 | 77.8 | 12 | 0/0 | 0 | 1962 | 158 | 0 |
|
Chip 14
|
A
|
17 | 0 | 99.85 | 99.04 | 0.63 | 27.8 | 83.9 | 17 | 0/0 | 0 | 2007 | 160 | 0 |
|
Chip 15
|
A
|
26 | 0 | 99.88 | 99.30 | 0.4 | 30.2 | 89.0 | 26 | 0/0 | 0 | 2005 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-25 | |
| TestTime | Test Time | 11:13 | |
| TestDuration | Duration | 1:22:26 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 26 | |
| nWarnings | # Warnings | 10 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 8 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
