Test Date: 2016-04-20 09:33
Analysis date: 2016-05-26 15:42
Analysis date: 2016-05-26 15:42
M2211 XRayHRQualification
Summary

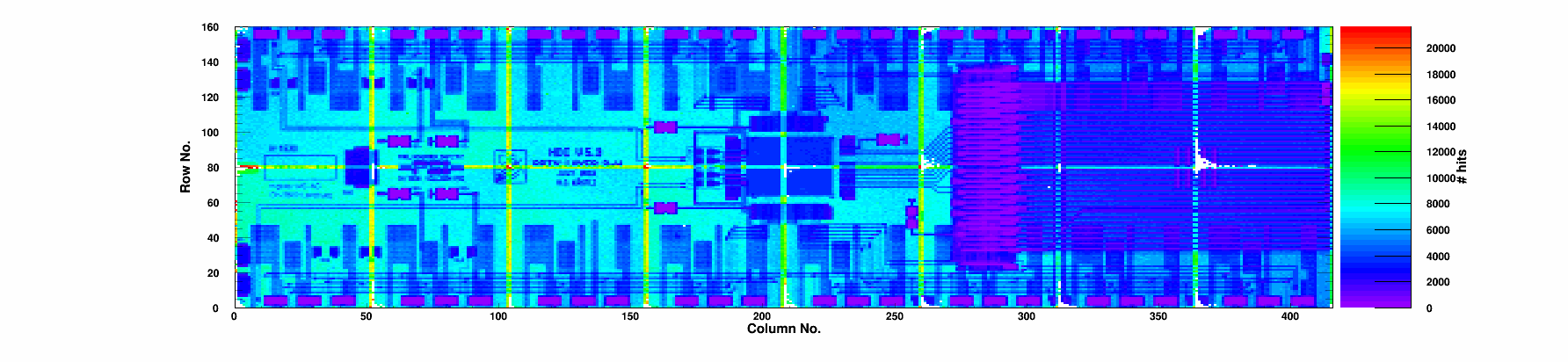

| Module | Module | M2211 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 13/3/0 | |
| PixelDefects | Total Pixel Defects | 406 | |

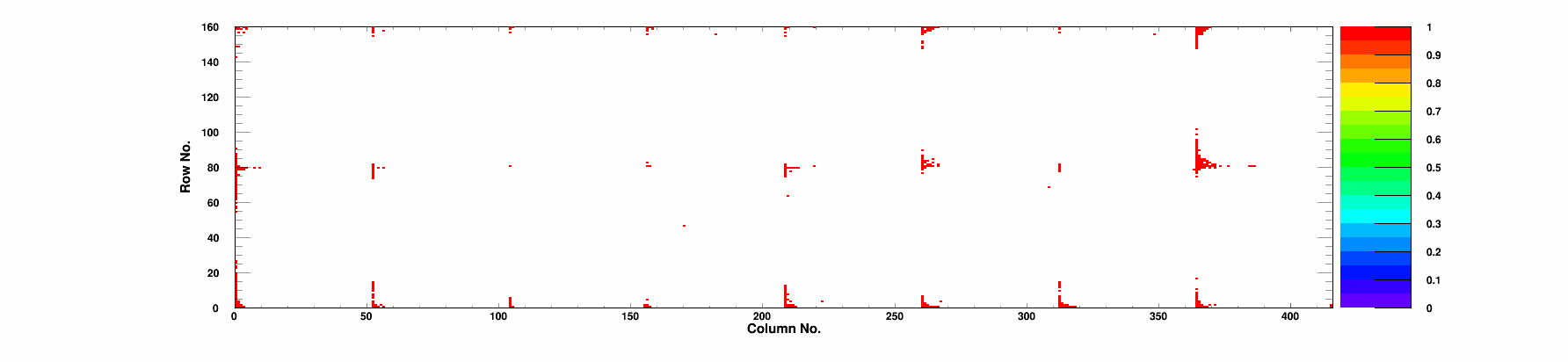

| BumpBondingDefects | Bump Bonding Defects | 405 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

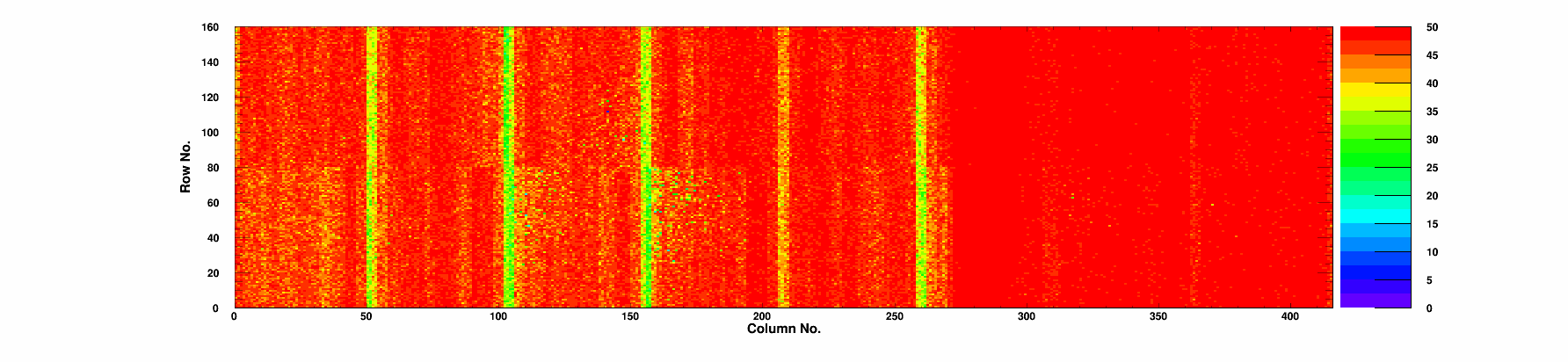

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
81 | 0 | 99.86 | 99.21 | 0.57 | 26.5 | 80.7 | 81 | 0/0 | 0 | 1963 | 171 | 0 |
|
Chip 1
|
A
|
5 | 0 | 99.87 | 99.37 | 0.36 | 24.2 | 76.0 | 5 | 0/0 | 0 | 1970 | 165 | 0 |
|
Chip 2
|
B
|
43 | 0 | 99.83 | 99.06 | 0.72 | 25.0 | 77.5 | 43 | 0/0 | 0 | 1948 | 171 | 0 |
|
Chip 3
|
A
|
9 | 0 | 99.85 | 99.08 | 0.63 | 40.1 | 120.1 | 9 | 0/0 | 0 | 2065 | 160 | 0 |
|
Chip 4
|
A
|
10 | 0 | 99.88 | 99.37 | 0.55 | 46.4 | 137.6 | 10 | 0/0 | 0 | 2098 | 166 | 0 |
|
Chip 5
|
A
|
6 | 0 | 99.87 | 99.28 | 2.17 | 54.8 | 158.8 | 5 | 0/0 | 0 | 2156 | 162 | 0 |
|
Chip 6
|
A
|
8 | 0 | 99.87 | 99.35 | 0.59 | 53.7 | 157.1 | 8 | 0/0 | 0 | 2140 | 164 | 0 |
|
Chip 7
|
A
|
23 | 0 | 99.88 | 99.34 | 0.65 | 50.8 | 149.0 | 23 | 0/0 | 0 | 2132 | 162 | 0 |
|
Chip 8
|
B
|
64 | 0 | 99.88 | 99.35 | 0.76 | 58.0 | 169.1 | 64 | 0/0 | 0 | 2148 | 162 | 0 |
|
Chip 9
|
A
|
27 | 0 | 99.87 | 99.35 | 0.69 | 51.7 | 152.4 | 27 | 0/0 | 0 | 2111 | 156 | 0 |
|
Chip 10
|
A
|
9 | 0 | 99.85 | 99.25 | 3.33 | 56.8 | 166.1 | 9 | 0/0 | 0 | 2167 | 157 | 0 |
|
Chip 11
|
A
|
5 | 0 | 99.84 | 99.15 | 2.6 | 50.4 | 148.8 | 5 | 0/0 | 0 | 2130 | 165 | 0 |
|
Chip 12
|
A
|
36 | 0 | 99.86 | 99.30 | 0.58 | 46.9 | 138.8 | 36 | 0/0 | 0 | 2098 | 168 | 0 |
|
Chip 13
|
A
|
21 | 0 | 99.82 | 99.01 | 0.78 | 28.9 | 88.8 | 21 | 0/0 | 0 | 2004 | 176 | 0 |
|
Chip 14
|
A
|
26 | 0 | 99.88 | 99.26 | 0.79 | 28.1 | 86.5 | 26 | 0/0 | 0 | 1993 | 169 | 0 |
|
Chip 15
|
A
|
33 | 0 | 99.87 | 99.30 | 0.71 | 28.2 | 85.8 | 33 | 0/0 | 0 | 1983 | 177 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-20 | |
| TestTime | Test Time | 09:33 | |
| TestDuration | Duration | 1:22:5 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
