Test Date: 2016-04-20 09:33
Analysis date: 2016-05-26 15:29
Analysis date: 2016-05-26 15:29
M2209 XRayHRQualification
Summary
| Module | Module | M2209 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 177 | |
| BumpBondingDefects | Bump Bonding Defects | 177 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

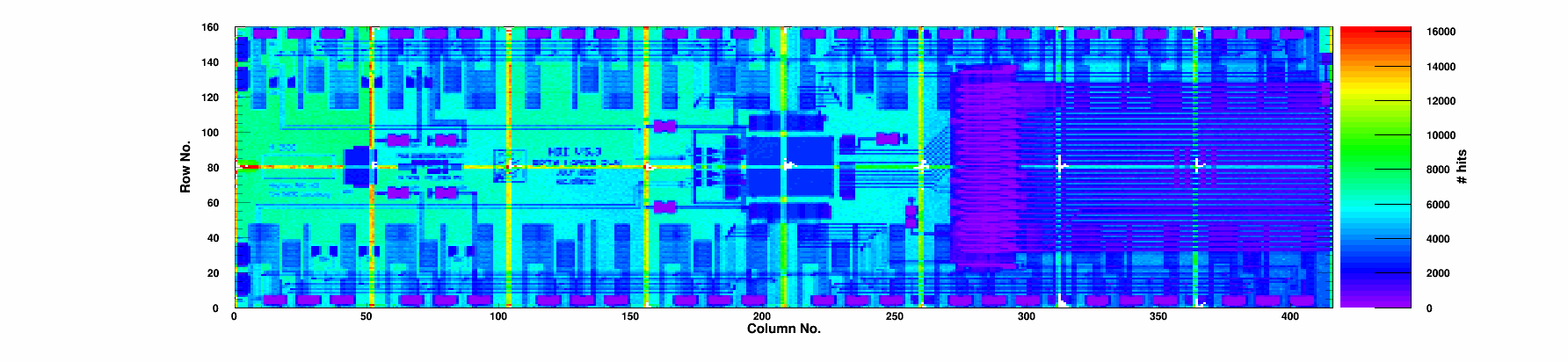

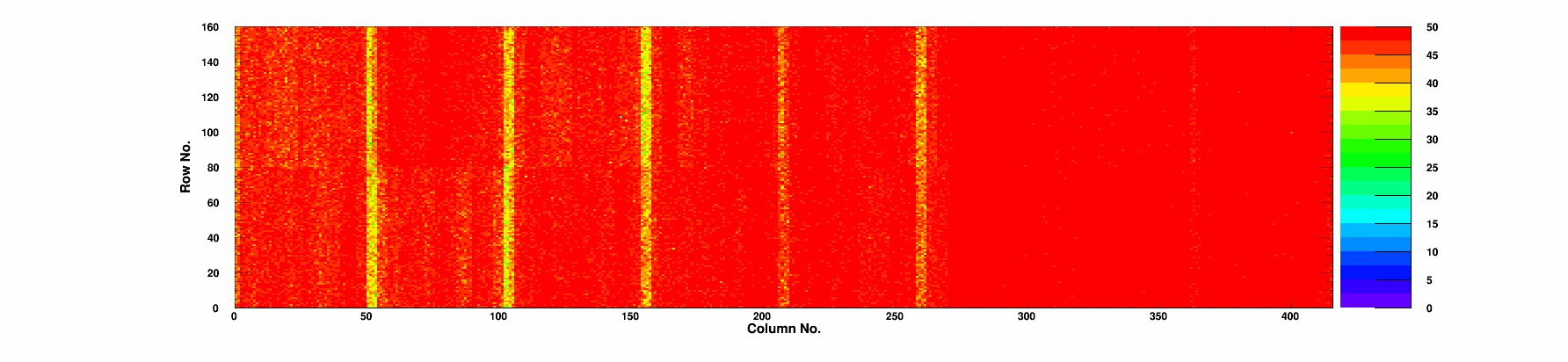

| Efficiency | Efficiency 50/120 | 99.88/99.27 | % |
| Noise | Mean Noise | 168 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
18 | 0 | 99.89 | 99.35 | 0.28 | 20.7 | 63.7 | 18 | 0/0 | 0 | 1910 | 167 | 0 |
|
Chip 1
|
A
|
15 | 0 | 99.88 | 99.28 | 0.4 | 23.6 | 72.6 | 15 | 0/0 | 0 | 1947 | 176 | 0 |
|
Chip 2
|
A
|
11 | 0 | 99.85 | 99.02 | 0.56 | 19.6 | 61.0 | 11 | 0/0 | 0 | 1902 | 158 | 0 |
|
Chip 3
|
A
|
18 | 0 | 99.90 | 99.40 | 0.5 | 37.8 | 111.8 | 18 | 0/0 | 0 | 2036 | 172 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.87 | 99.32 | 0.5 | 41.0 | 121.1 | 3 | 0/0 | 0 | 2059 | 169 | 0 |
|
Chip 5
|
A
|
11 | 0 | 99.89 | 99.42 | 0.53 | 49.6 | 143.6 | 11 | 0/0 | 0 | 2118 | 167 | 0 |
|
Chip 6
|
A
|
16 | 0 | 99.89 | 99.36 | 0.46 | 40.3 | 119.5 | 16 | 0/0 | 0 | 2031 | 160 | 0 |
|
Chip 7
|
A
|
16 | 0 | 99.88 | 99.36 | 0.53 | 52.2 | 151.4 | 16 | 0/0 | 0 | 2141 | 176 | 0 |
|
Chip 8
|
A
|
10 | 0 | 99.87 | 99.33 | 0.46 | 47.0 | 137.0 | 10 | 0/0 | 0 | 2071 | 169 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.86 | 99.09 | 0.46 | 43.7 | 128.1 | 1 | 0/0 | 0 | 2070 | 170 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.89 | 99.34 | 0.47 | 42.3 | 123.4 | 2 | 0/0 | 0 | 2067 | 166 | 0 |
|
Chip 11
|
A
|
10 | 0 | 99.88 | 99.35 | 0.55 | 37.7 | 112.3 | 10 | 0/0 | 0 | 2039 | 174 | 0 |
|
Chip 12
|
A
|
7 | 0 | 99.89 | 99.36 | 0.47 | 35.8 | 107.2 | 7 | 0/0 | 0 | 2026 | 182 | 0 |
|
Chip 13
|
A
|
7 | 0 | 99.84 | 99.04 | 0.57 | 18.2 | 57.0 | 7 | 0/0 | 0 | 1901 | 162 | 0 |
|
Chip 14
|
A
|
21 | 0 | 99.88 | 99.32 | 0.4 | 20.3 | 62.9 | 21 | 0/0 | 0 | 1923 | 166 | 0 |
|
Chip 15
|
A
|
11 | 0 | 99.85 | 98.98 | 0.35 | 18.6 | 57.8 | 11 | 0/0 | 0 | 1919 | 161 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-20 | |
| TestTime | Test Time | 09:33 | |
| TestDuration | Duration | 1:22:5 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
