Test Date: 2016-04-14 11:21
Analysis date: 2016-05-26 15:01
Analysis date: 2016-05-26 15:01
M2205 XRayHRQualification
Summary
| Module | Module | M2205 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

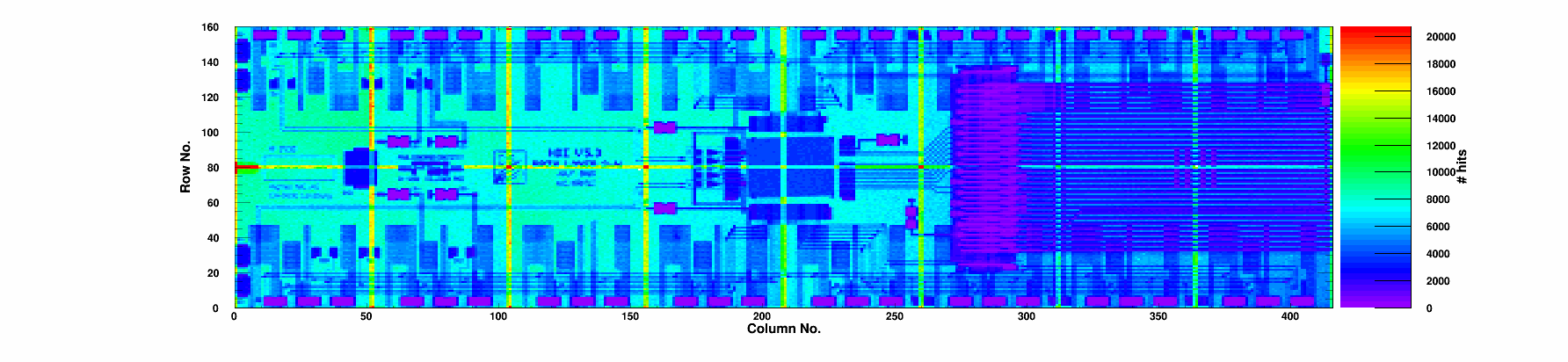

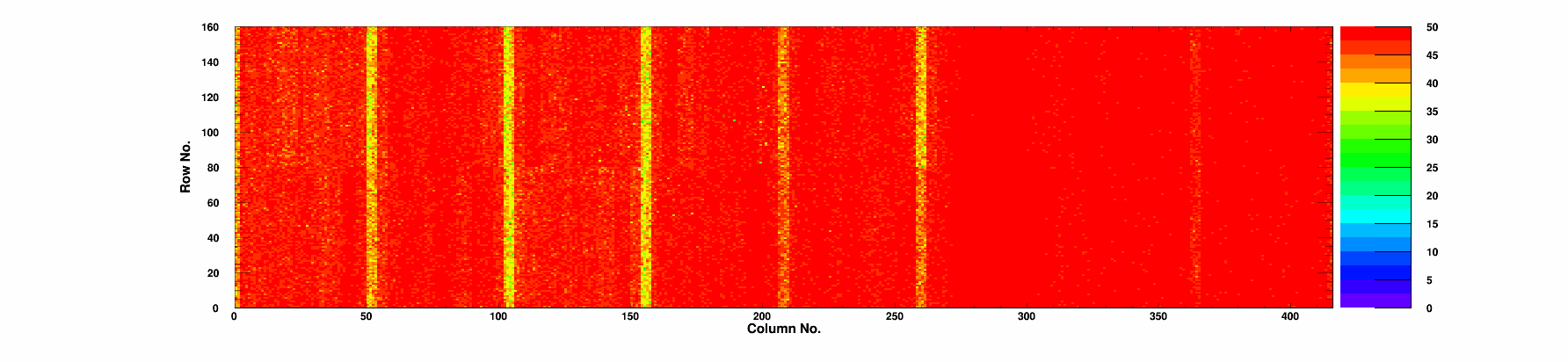

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.86 | 99.12 | 0.88 | 30.9 | 91.4 | 2 | 0/0 | 0 | 2002 | 177 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.34 | 0.56 | 32.2 | 96.2 | 0 | 0/0 | 0 | 2016 | 175 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.02 | 0.69 | 27.7 | 84.7 | 0 | 0/0 | 0 | 1978 | 168 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.30 | 0.7 | 49.1 | 142.5 | 0 | 0/0 | 0 | 2137 | 167 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.30 | 1.11 | 52.4 | 153.0 | 0 | 0/0 | 0 | 2140 | 168 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.36 | 0.83 | 59.5 | 170.1 | 1 | 0/0 | 0 | 2192 | 158 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.35 | 0.52 | 55.7 | 160.8 | 0 | 0/0 | 0 | 2162 | 162 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.32 | 0.62 | 62.8 | 181.6 | 0 | 0/0 | 0 | 2186 | 164 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.91 | 99.33 | 0.76 | 58.1 | 167.4 | 0 | 0/0 | 0 | 2193 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.32 | 0.52 | 52.6 | 154.1 | 0 | 0/0 | 0 | 2138 | 160 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.85 | 99.32 | 0.81 | 61.7 | 176.1 | 0 | 0/0 | 0 | 2165 | 165 | 1 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.31 | 0.76 | 47.3 | 139.2 | 0 | 0/0 | 0 | 2115 | 161 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.34 | 0.51 | 47.7 | 139.4 | 0 | 0/0 | 0 | 2108 | 171 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.30 | 0.45 | 25.5 | 78.7 | 0 | 0/0 | 0 | 1975 | 159 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.99 | 0.62 | 29.3 | 88.2 | 0 | 0/0 | 0 | 1999 | 166 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 99.00 | 0.55 | 29.6 | 87.9 | 0 | 0/0 | 0 | 1995 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-14 | |
| TestTime | Test Time | 11:21 | |
| TestDuration | Duration | 1:25:14 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
