Test Date: 2016-04-14 09:29
Analysis date: 2016-05-26 14:29
Analysis date: 2016-05-26 14:29
M2200 XRayHRQualification
Summary
| Module | Module | M2200 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 366 | |

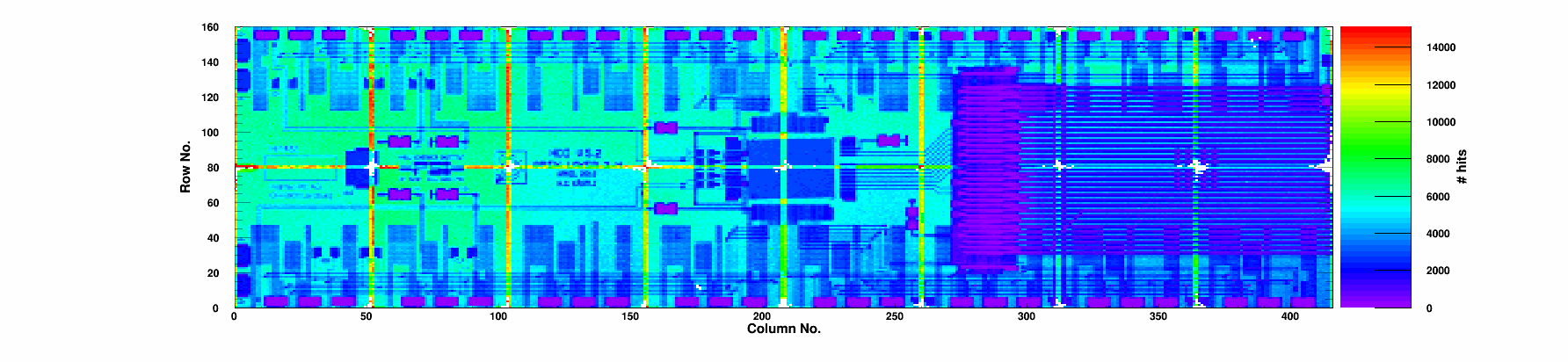

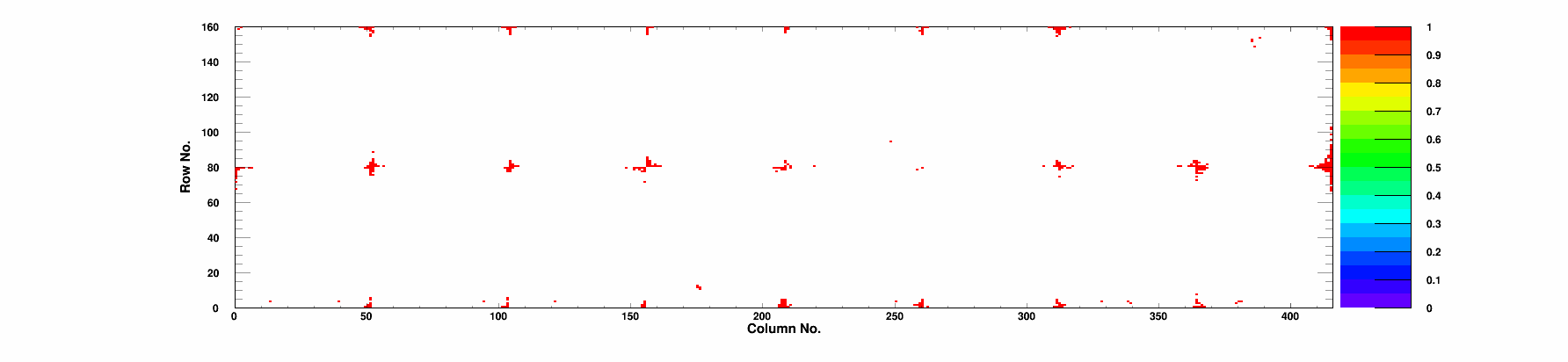

| BumpBondingDefects | Bump Bonding Defects | 364 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.21 | % |

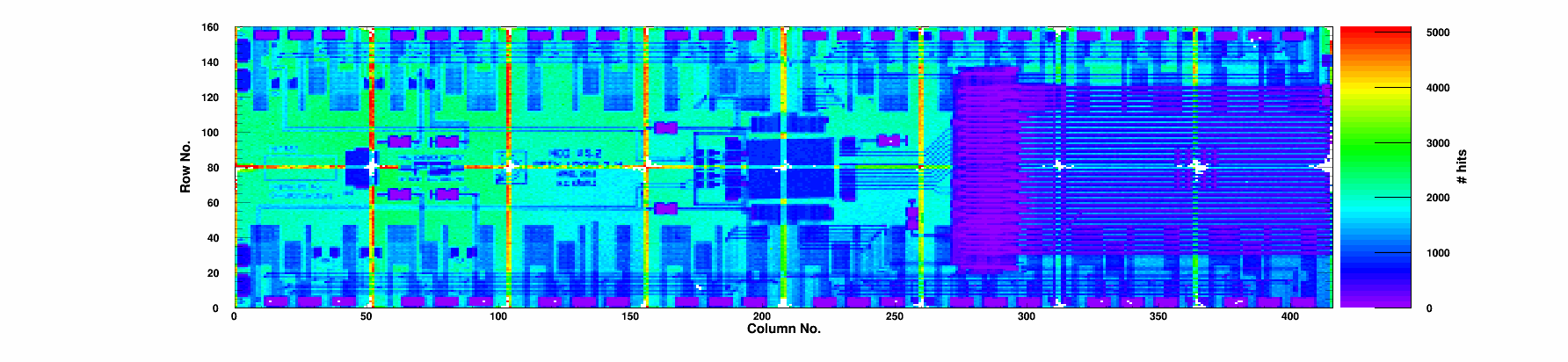

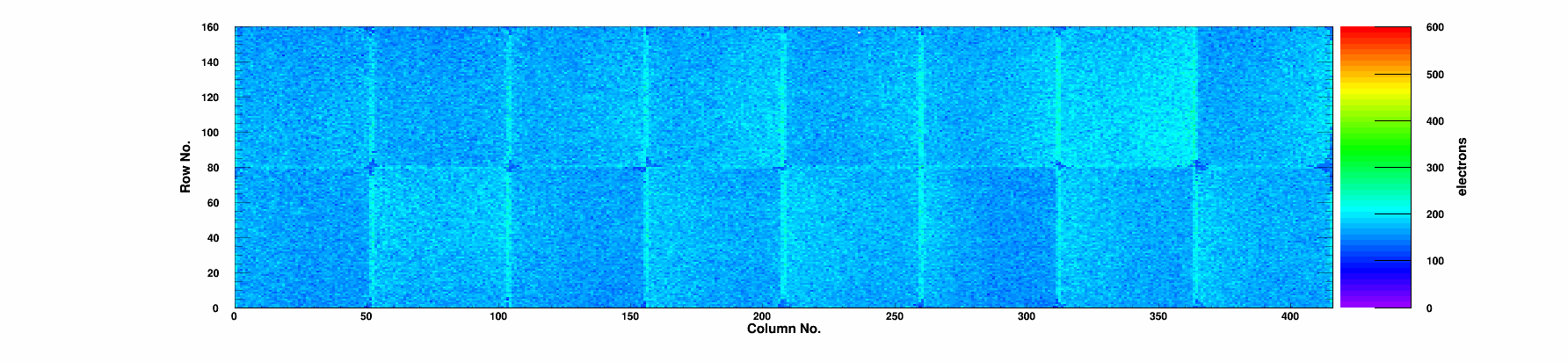

| Noise | Mean Noise | 170 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
59 | 0 | 99.86 | 99.01 | 0.56 | 22.6 | 69.1 | 59 | 0/0 | 0 | 1939 | 171 | 0 |
|
Chip 1
|
A
|
24 | 0 | 99.88 | 99.32 | 0.36 | 26.8 | 81.9 | 24 | 0/0 | 0 | 1996 | 188 | 0 |
|
Chip 2
|
A
|
22 | 0 | 99.84 | 99.11 | 0.39 | 22.7 | 69.8 | 22 | 0/0 | 0 | 1932 | 174 | 0 |
|
Chip 3
|
A
|
16 | 0 | 99.88 | 99.32 | 0.37 | 39.5 | 116.2 | 14 | 0/0 | 0 | 2010 | 170 | 1 |
|
Chip 4
|
A
|
22 | 0 | 99.87 | 99.42 | 0.49 | 39.4 | 116.5 | 22 | 0/0 | 0 | 2063 | 174 | 0 |
|
Chip 5
|
A
|
15 | 0 | 99.88 | 99.38 | 0.76 | 47.0 | 136.3 | 15 | 0/0 | 0 | 2121 | 170 | 0 |
|
Chip 6
|
A
|
17 | 0 | 99.87 | 99.32 | 0.48 | 46.3 | 135.4 | 17 | 0/0 | 0 | 2105 | 163 | 0 |
|
Chip 7
|
A
|
17 | 0 | 99.85 | 99.05 | 0.92 | 48.5 | 140.9 | 17 | 0/0 | 0 | 2119 | 166 | 0 |
|
Chip 8
|
A
|
30 | 0 | 99.88 | 99.27 | 0.72 | 41.2 | 121.9 | 30 | 0/0 | 0 | 2095 | 162 | 0 |
|
Chip 9
|
A
|
15 | 0 | 99.89 | 99.35 | 0.58 | 44.0 | 129.7 | 15 | 0/0 | 0 | 2095 | 177 | 0 |
|
Chip 10
|
A
|
22 | 0 | 99.87 | 99.14 | 0.53 | 38.5 | 114.6 | 22 | 0/0 | 0 | 2043 | 163 | 0 |
|
Chip 11
|
A
|
17 | 0 | 99.85 | 99.04 | 1.02 | 35.5 | 106.9 | 17 | 0/0 | 0 | 2039 | 171 | 0 |
|
Chip 12
|
A
|
16 | 0 | 99.87 | 99.21 | 0.56 | 31.6 | 96.2 | 16 | 0/0 | 0 | 2034 | 174 | 0 |
|
Chip 13
|
A
|
12 | 0 | 99.87 | 99.26 | 0.54 | 18.6 | 58.4 | 12 | 0/0 | 0 | 1927 | 162 | 0 |
|
Chip 14
|
A
|
13 | 0 | 99.86 | 99.06 | 0.42 | 19.9 | 61.9 | 13 | 0/0 | 0 | 1946 | 171 | 0 |
|
Chip 15
|
B
|
49 | 0 | 99.86 | 99.05 | 0.35 | 19.4 | 59.8 | 49 | 0/0 | 0 | 1918 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-14 | |
| TestTime | Test Time | 09:29 | |
| TestDuration | Duration | 1:27:20 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
