Test Date: 2016-04-12 09:31
Analysis date: 2016-05-26 14:23
Analysis date: 2016-05-26 14:23
M2199 XRayHRQualification
Summary
| Module | Module | M2199 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/1/1 | |
| PixelDefects | Total Pixel Defects | 401 | |
| BumpBondingDefects | Bump Bonding Defects | 241 | |
| NoisyPixels | Noisy Pixels | 36 | |
| HotPixelDefects | Hot Pixels | 2 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.21 | % |
| Noise | Mean Noise | 170 | e- |

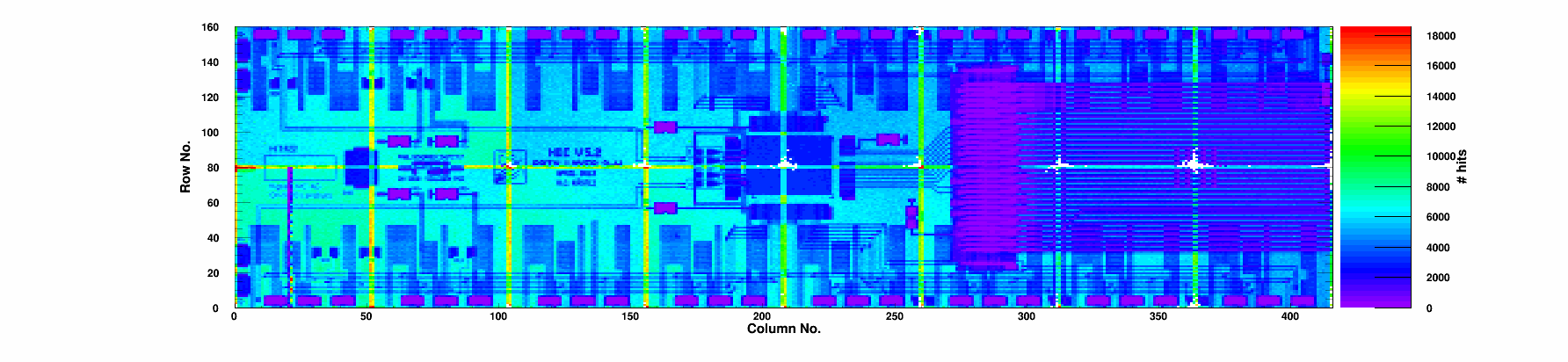

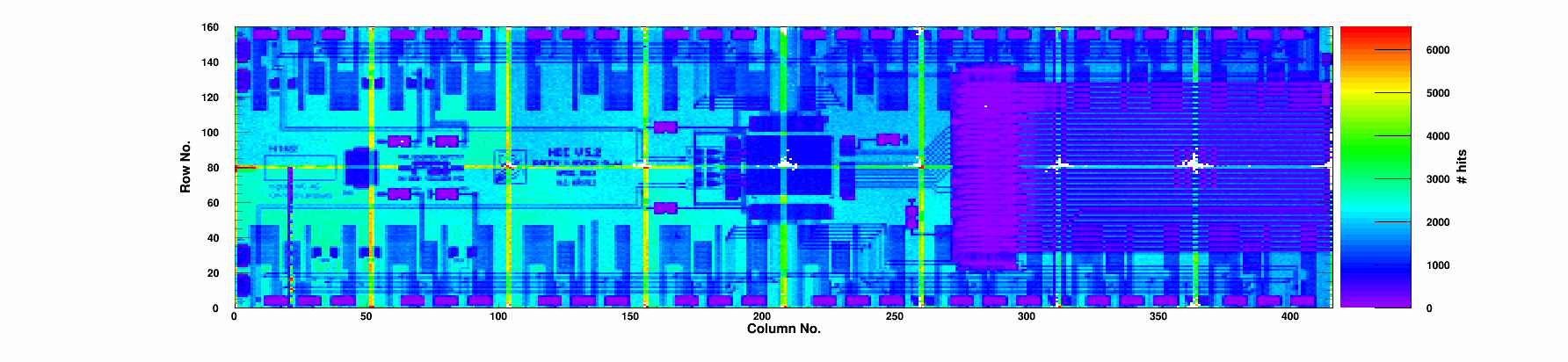

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
42 | 0 | 99.87 | 99.10 | 0.38 | 20.7 | 63.5 | 42 | 0/0 | 0 | 1946 | 164 | 0 |
|
Chip 1
|
A
|
39 | 0 | 99.86 | 99.07 | 0.57 | 23.2 | 71.2 | 39 | 0/0 | 0 | 1975 | 176 | 0 |
|
Chip 2
|
A
|
7 | 0 | 99.85 | 99.05 | 0.7 | 20.2 | 62.5 | 7 | 0/0 | 0 | 1912 | 172 | 0 |
|
Chip 3
|
A
|
41 | 0 | 99.88 | 99.34 | 0.46 | 34.5 | 102.3 | 41 | 0/0 | 0 | 2041 | 163 | 0 |
|
Chip 4
|
A
|
13 | 0 | 99.88 | 99.33 | 0.59 | 38.4 | 113.9 | 13 | 0/0 | 0 | 2062 | 168 | 0 |
|
Chip 5
|
A
|
23 | 0 | 99.88 | 99.30 | 0.75 | 43.5 | 127.1 | 23 | 0/0 | 0 | 2088 | 162 | 0 |
|
Chip 6
|
A
|
4 | 0 | 99.87 | 99.34 | 0.74 | 47.3 | 138.1 | 4 | 0/0 | 0 | 2117 | 174 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.89 | 99.37 | 0.38 | 45.6 | 133.3 | 2 | 0/0 | 0 | 2101 | 169 | 0 |
|
Chip 8
|
C
|
162 | 1 | 99.70 | 98.96 | 615.1 | 53.1 | 155.4 | 2 | 0/0 | 0 | 4243 | 172 | 36 |
|
Chip 9
|
A
|
2 | 0 | 99.87 | 99.26 | 0.55 | 46.9 | 137.6 | 2 | 0/0 | 0 | 2126 | 167 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.88 | 99.34 | 0.47 | 52.0 | 149.4 | 3 | 0/0 | 0 | 2154 | 165 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.87 | 99.33 | 0.57 | 45.1 | 131.8 | 3 | 0/0 | 0 | 2123 | 170 | 0 |
|
Chip 12
|
A
|
7 | 0 | 99.86 | 99.18 | 0.64 | 40.6 | 119.9 | 7 | 0/0 | 0 | 2069 | 167 | 0 |
|
Chip 13
|
A
|
12 | 0 | 99.85 | 99.20 | 0.73 | 24.0 | 73.2 | 12 | 0/0 | 0 | 1977 | 172 | 0 |
|
Chip 14
|
A
|
12 | 0 | 99.85 | 99.07 | 0.52 | 27.1 | 82.3 | 12 | 0/0 | 0 | 1966 | 187 | 0 |
|
Chip 15
|
A
|
29 | 0 | 99.87 | 99.12 | 0.42 | 24.9 | 75.2 | 29 | 0/0 | 0 | 1945 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-12 | |
| TestTime | Test Time | 09:31 | |
| TestDuration | Duration | 1:27:0 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 4874 | |
| nWarnings | # Warnings | 2706 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 2666 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 534 | |
| message_readback_count | Readback start marker | 2132 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
