Test Date: 2016-04-12 09:31
Analysis date: 2016-05-26 14:10
Analysis date: 2016-05-26 14:10
M2197 XRayHRQualification
Summary
| Module | Module | M2197 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 237 | |
| BumpBondingDefects | Bump Bonding Defects | 235 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs

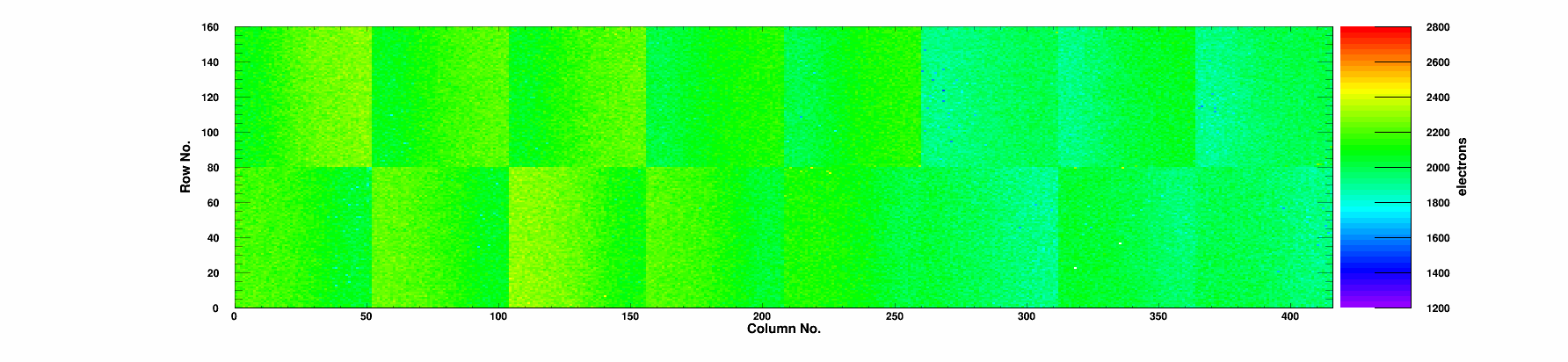

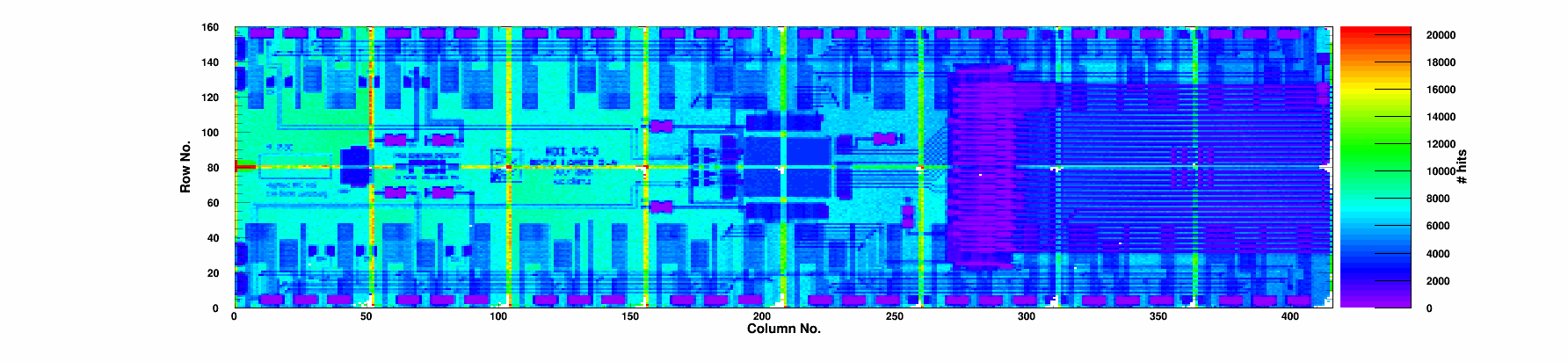

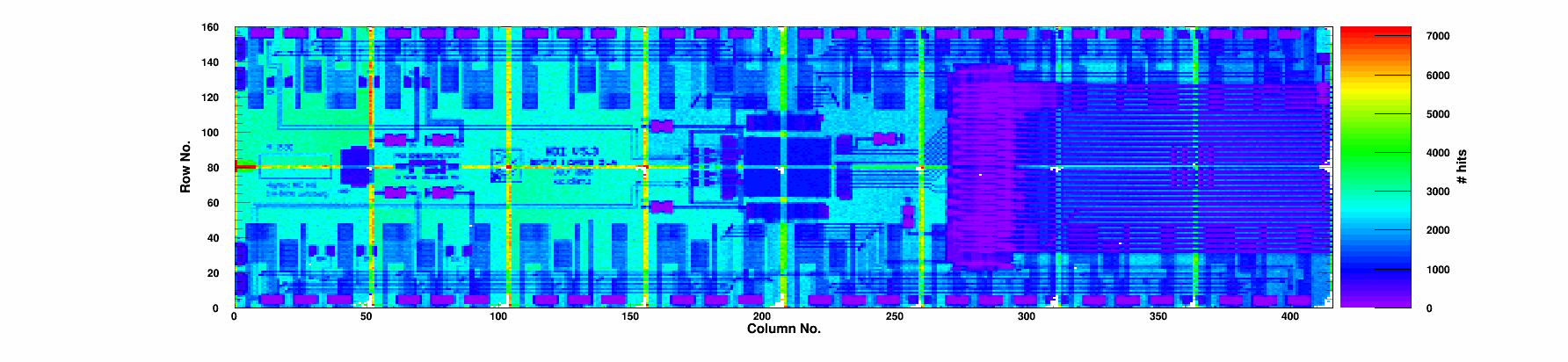

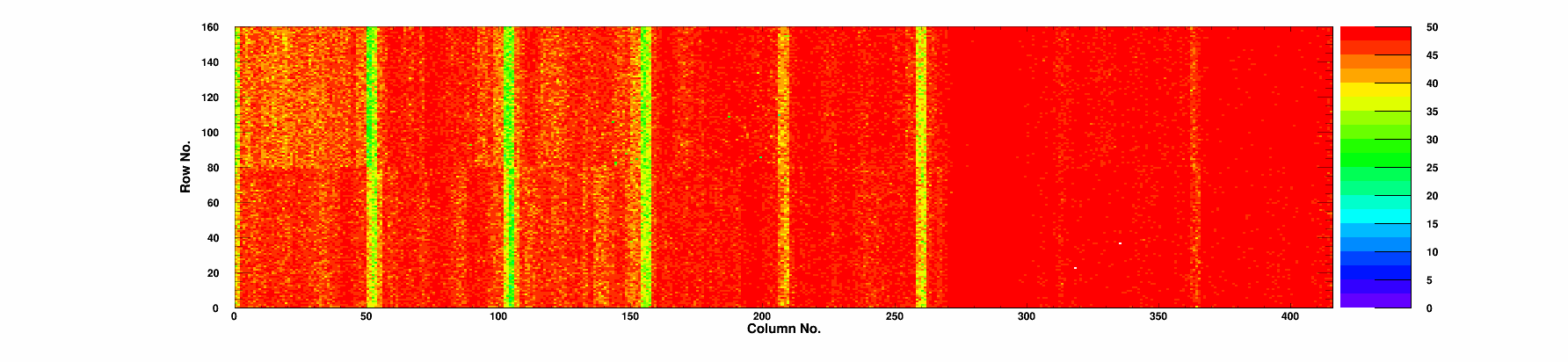

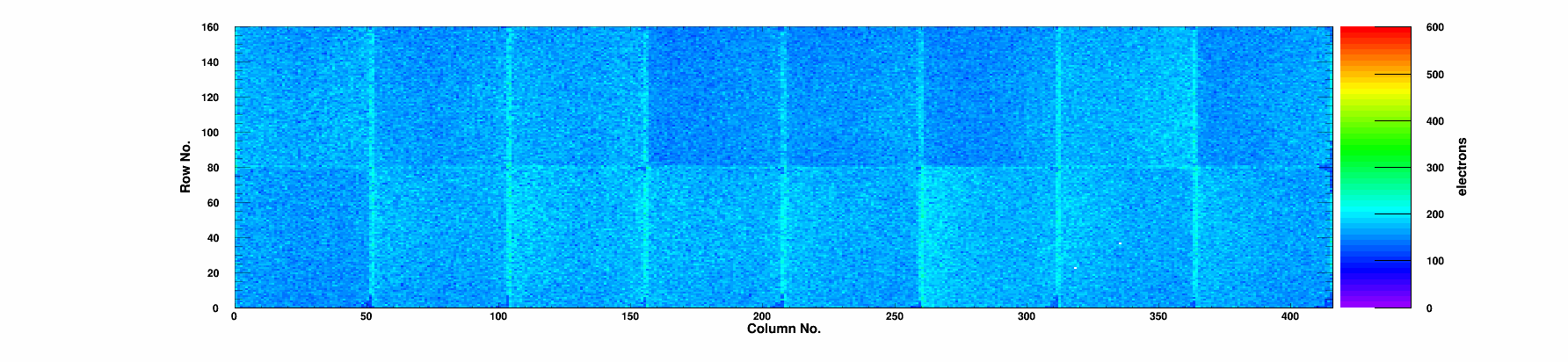

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
31 | 0 | 99.88 | 99.33 | 0.37 | 26.3 | 80.3 | 31 | 0/0 | 0 | 1961 | 158 | 0 |
|
Chip 1
|
A
|
7 | 0 | 99.84 | 99.04 | 0.63 | 31.5 | 95.2 | 7 | 0/0 | 0 | 1999 | 172 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.86 | 99.00 | 0.79 | 23.3 | 73.3 | 2 | 0/0 | 0 | 1954 | 155 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.33 | 0.47 | 42.7 | 127.1 | 0 | 0/0 | 0 | 2078 | 157 | 0 |
|
Chip 4
|
A
|
6 | 0 | 99.87 | 99.36 | 0.6 | 44.4 | 132.8 | 6 | 0/0 | 0 | 2079 | 153 | 0 |
|
Chip 5
|
A
|
7 | 0 | 99.87 | 99.35 | 0.64 | 58.4 | 168.5 | 7 | 0/0 | 0 | 2154 | 166 | 0 |
|
Chip 6
|
A
|
3 | 0 | 99.86 | 99.34 | 0.6 | 52.1 | 153.2 | 3 | 0/0 | 0 | 2143 | 160 | 0 |
|
Chip 7
|
A
|
3 | 0 | 99.87 | 99.33 | 0.61 | 62.7 | 182.3 | 3 | 0/0 | 0 | 2191 | 167 | 0 |
|
Chip 8
|
A
|
19 | 0 | 99.88 | 99.35 | 0.53 | 54.0 | 157.9 | 19 | 0/0 | 0 | 2128 | 158 | 0 |
|
Chip 9
|
A
|
20 | 0 | 99.89 | 99.40 | 0.54 | 54.6 | 158.7 | 20 | 0/0 | 0 | 2153 | 167 | 0 |
|
Chip 10
|
A
|
20 | 0 | 99.87 | 99.39 | 0.67 | 61.2 | 176.1 | 20 | 0/0 | 0 | 2206 | 173 | 0 |
|
Chip 11
|
A
|
21 | 0 | 99.89 | 99.44 | 0.45 | 48.2 | 141.6 | 21 | 0/0 | 0 | 2130 | 170 | 0 |
|
Chip 12
|
A
|
13 | 0 | 99.88 | 99.33 | 0.51 | 43.8 | 129.9 | 13 | 0/0 | 0 | 2081 | 169 | 0 |
|
Chip 13
|
A
|
25 | 0 | 99.87 | 99.34 | 0.62 | 26.0 | 80.2 | 25 | 0/0 | 0 | 1966 | 175 | 0 |
|
Chip 14
|
A
|
14 | 0 | 99.87 | 99.24 | 0.6 | 30.5 | 91.7 | 12 | 0/0 | 0 | 1927 | 169 | 2 |
|
Chip 15
|
B
|
46 | 0 | 99.86 | 99.07 | 0.57 | 27.2 | 82.4 | 46 | 0/0 | 0 | 1967 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-12 | |
| TestTime | Test Time | 09:31 | |
| TestDuration | Duration | 1:27:0 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
