Test Date: 2016-03-29 10:42
Analysis date: 2016-05-26 13:23
Analysis date: 2016-05-26 13:23
M2189 XRayHRQualification
Summary
| Module | Module | M2189 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 372 | |

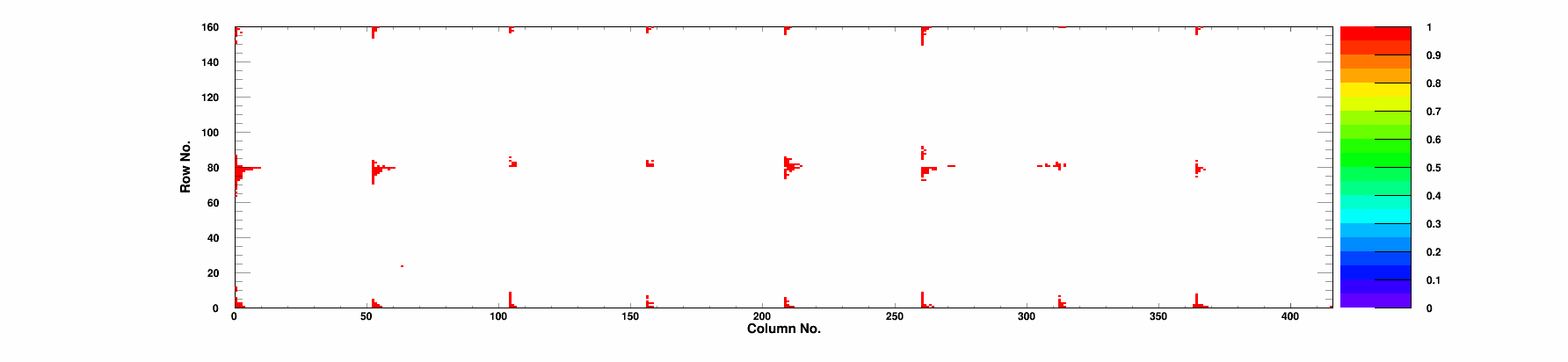

| BumpBondingDefects | Bump Bonding Defects | 370 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

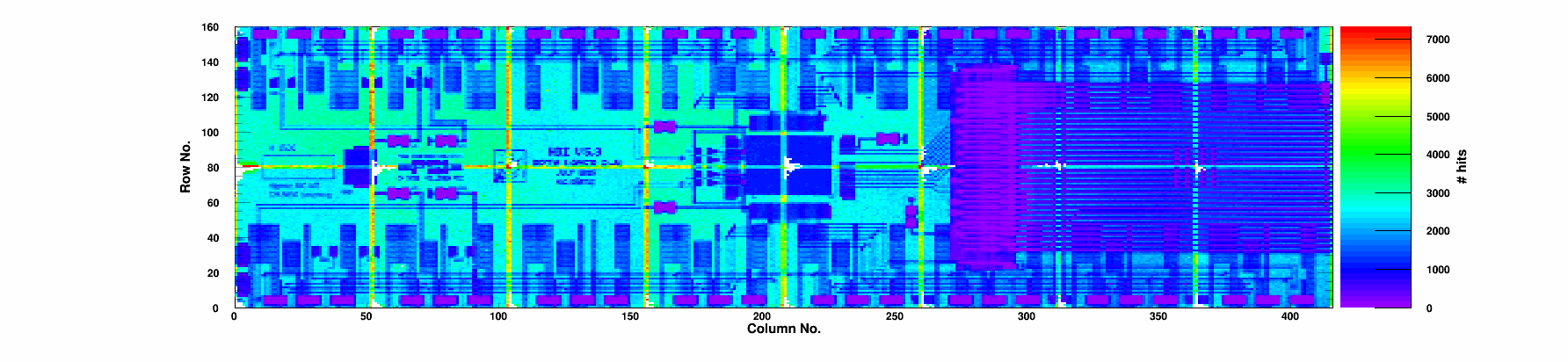

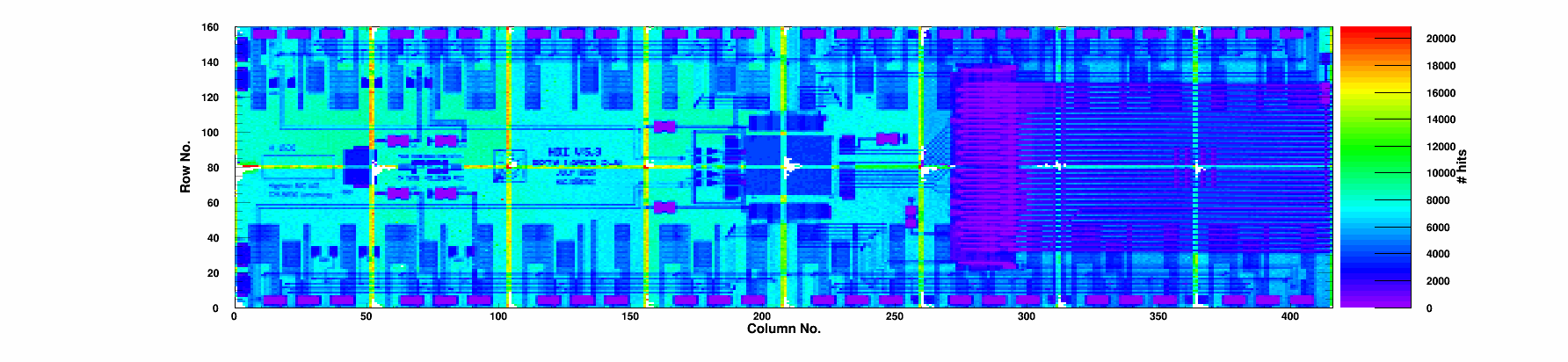

| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |

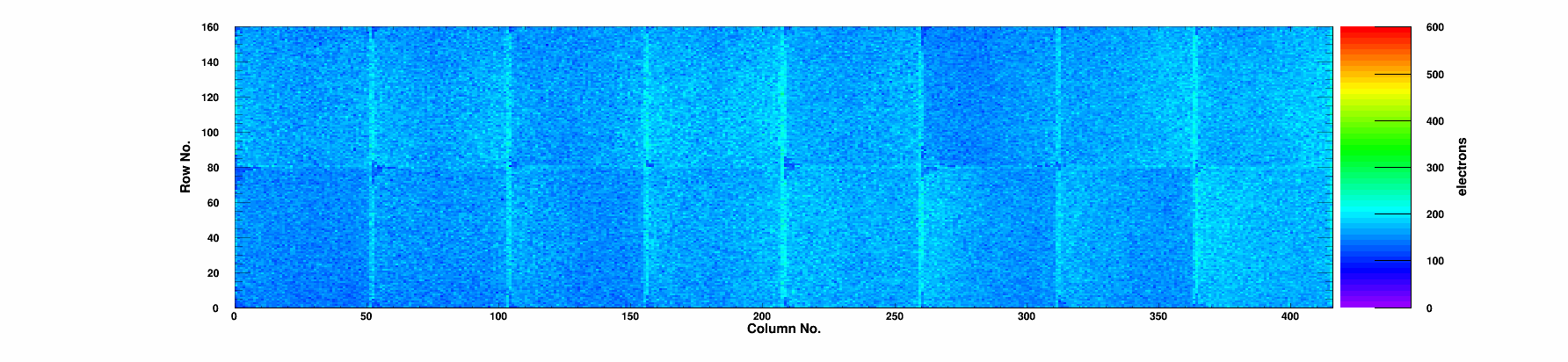

| Noise | Mean Noise | 163 | e- |
Summary ROCs

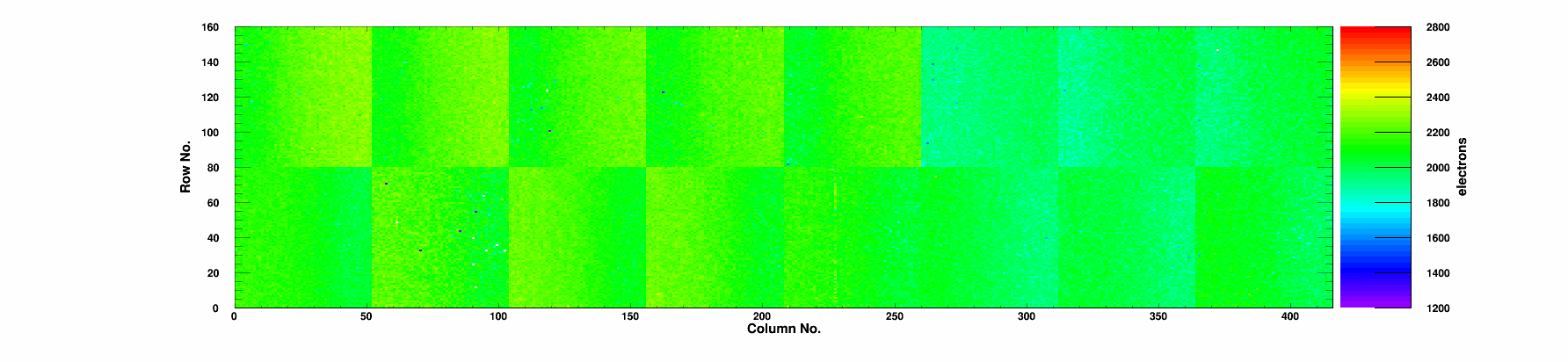

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
10 | 0 | 99.84 | 99.03 | 0.7 | 31.8 | 92.7 | 10 | 0/0 | 0 | 1996 | 172 | 0 |
|
Chip 1
|
A
|
7 | 0 | 99.89 | 99.33 | 0.59 | 30.2 | 89.9 | 7 | 0/0 | 0 | 1970 | 168 | 0 |
|
Chip 2
|
A
|
38 | 0 | 99.86 | 99.30 | 1.19 | 22.6 | 70.3 | 38 | 0/0 | 0 | 1954 | 153 | 0 |
|
Chip 3
|
A
|
27 | 0 | 99.88 | 99.30 | 0.65 | 49.7 | 142.0 | 27 | 0/0 | 0 | 2141 | 165 | 0 |
|
Chip 4
|
A
|
15 | 0 | 99.87 | 99.29 | 0.66 | 54.8 | 157.9 | 15 | 0/0 | 0 | 2164 | 173 | 0 |
|
Chip 5
|
A
|
15 | 0 | 99.88 | 99.29 | 2.35 | 56.3 | 161.0 | 15 | 0/0 | 0 | 2166 | 160 | 0 |
|
Chip 6
|
A
|
17 | 0 | 99.88 | 99.23 | 1.13 | 58.2 | 166.2 | 17 | 0/0 | 0 | 2188 | 164 | 0 |
|
Chip 7
|
A
|
19 | 0 | 99.89 | 99.36 | 0.46 | 60.2 | 172.0 | 19 | 0/0 | 0 | 2204 | 162 | 0 |
|
Chip 8
|
B
|
58 | 0 | 99.88 | 99.33 | 0.63 | 50.0 | 148.2 | 58 | 0/0 | 0 | 2101 | 148 | 0 |
|
Chip 9
|
B
|
42 | 0 | 99.89 | 99.37 | 0.57 | 53.2 | 154.7 | 40 | 0/0 | 0 | 2146 | 155 | 0 |
|
Chip 10
|
A
|
12 | 0 | 99.88 | 99.38 | 0.48 | 55.8 | 160.9 | 12 | 0/0 | 0 | 2161 | 156 | 0 |
|
Chip 11
|
A
|
10 | 0 | 99.87 | 99.36 | 0.46 | 52.7 | 151.1 | 10 | 0/0 | 0 | 2159 | 166 | 0 |
|
Chip 12
|
A
|
27 | 0 | 99.88 | 99.31 | 0.79 | 47.6 | 137.6 | 27 | 0/0 | 0 | 2099 | 170 | 0 |
|
Chip 13
|
A
|
35 | 0 | 99.84 | 99.08 | 0.71 | 25.7 | 78.6 | 35 | 0/0 | 0 | 1999 | 162 | 0 |
|
Chip 14
|
A
|
15 | 0 | 99.84 | 99.03 | 0.77 | 28.4 | 85.6 | 15 | 0/0 | 0 | 1991 | 161 | 0 |
|
Chip 15
|
A
|
25 | 0 | 99.84 | 99.11 | 0.8 | 31.6 | 92.6 | 25 | 0/0 | 0 | 2034 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-29 | |
| TestTime | Test Time | 10:42 | |
| TestDuration | Duration | 1:24:48 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
