Test Date: 2016-03-23 15:37
Analysis date: 2016-05-26 12:44
Analysis date: 2016-05-26 12:44
M2183 XRayHRQualification
Summary
| Module | Module | M2183 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 317 | |

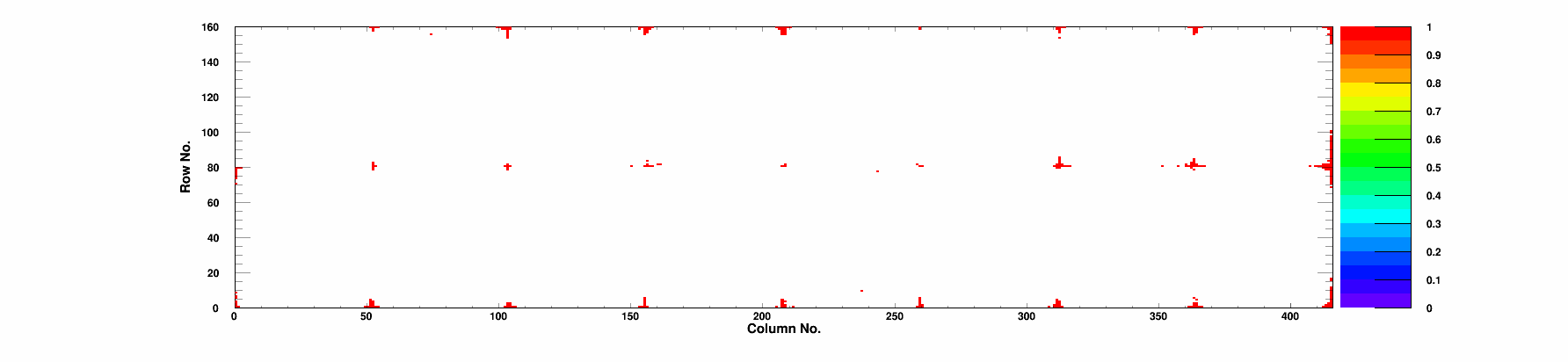

| BumpBondingDefects | Bump Bonding Defects | 315 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

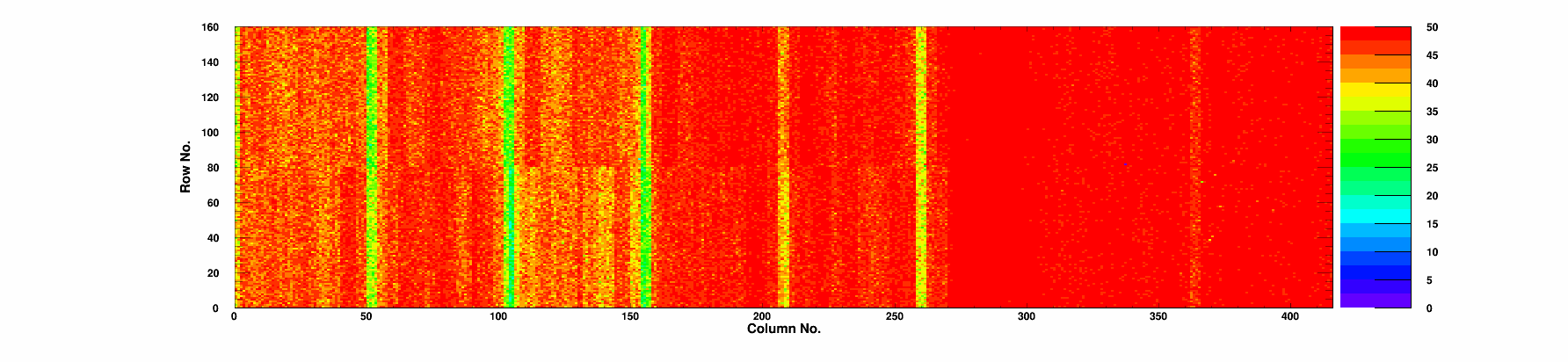

| Efficiency | Efficiency 50/120 | 99.87/99.32 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
57 | 0 | 99.89 | 99.11 | 0.65 | 27.7 | 82.0 | 57 | 0/0 | 0 | 1957 | 167 | 0 |
|
Chip 1
|
A
|
39 | 0 | 99.83 | 99.12 | 1.87 | 29.9 | 88.7 | 38 | 0/0 | 0 | 1982 | 169 | 1 |
|
Chip 2
|
A
|
6 | 0 | 99.88 | 99.29 | 0.31 | 25.6 | 78.0 | 6 | 0/0 | 0 | 1974 | 163 | 0 |
|
Chip 3
|
A
|
13 | 0 | 99.88 | 99.35 | 0.48 | 45.7 | 132.6 | 13 | 0/0 | 0 | 2099 | 159 | 0 |
|
Chip 4
|
A
|
23 | 0 | 99.89 | 99.38 | 0.63 | 45.7 | 134.2 | 23 | 0/0 | 0 | 2113 | 164 | 0 |
|
Chip 5
|
A
|
13 | 0 | 99.87 | 99.38 | 0.54 | 66.4 | 187.9 | 13 | 0/0 | 0 | 2213 | 169 | 0 |
|
Chip 6
|
A
|
25 | 0 | 99.87 | 99.37 | 0.7 | 61.4 | 175.2 | 25 | 0/0 | 0 | 2180 | 174 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.35 | 0.48 | 65.5 | 186.1 | 1 | 0/0 | 0 | 2206 | 164 | 0 |
|
Chip 8
|
A
|
26 | 0 | 99.88 | 99.37 | 0.81 | 62.9 | 180.4 | 25 | 0/0 | 0 | 2168 | 167 | 1 |
|
Chip 9
|
A
|
14 | 0 | 99.87 | 99.38 | 0.48 | 58.0 | 166.5 | 14 | 0/0 | 0 | 2155 | 160 | 0 |
|
Chip 10
|
A
|
13 | 0 | 99.88 | 99.35 | 0.55 | 71.5 | 202.6 | 13 | 0/0 | 0 | 2241 | 166 | 0 |
|
Chip 11
|
A
|
7 | 0 | 99.89 | 99.36 | 0.52 | 50.1 | 145.5 | 7 | 0/0 | 0 | 2128 | 164 | 0 |
|
Chip 12
|
A
|
13 | 0 | 99.88 | 99.33 | 0.5 | 48.9 | 140.5 | 13 | 0/0 | 0 | 2119 | 163 | 0 |
|
Chip 13
|
A
|
11 | 0 | 99.87 | 99.33 | 0.4 | 27.6 | 83.6 | 11 | 0/0 | 0 | 1983 | 164 | 0 |
|
Chip 14
|
A
|
14 | 0 | 99.87 | 99.30 | 0.49 | 33.4 | 98.6 | 14 | 0/0 | 0 | 2016 | 176 | 0 |
|
Chip 15
|
B
|
42 | 0 | 99.87 | 99.33 | 0.77 | 30.7 | 90.2 | 42 | 0/0 | 0 | 1979 | 177 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-23 | |
| TestTime | Test Time | 15:37 | |
| TestDuration | Duration | 1:25:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
