Test Date: 2016-03-23 15:37
Analysis date: 2016-05-26 12:31
Analysis date: 2016-05-26 12:31
M2181 XRayHRQualification
Summary
| Module | Module | M2181 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 361 | |

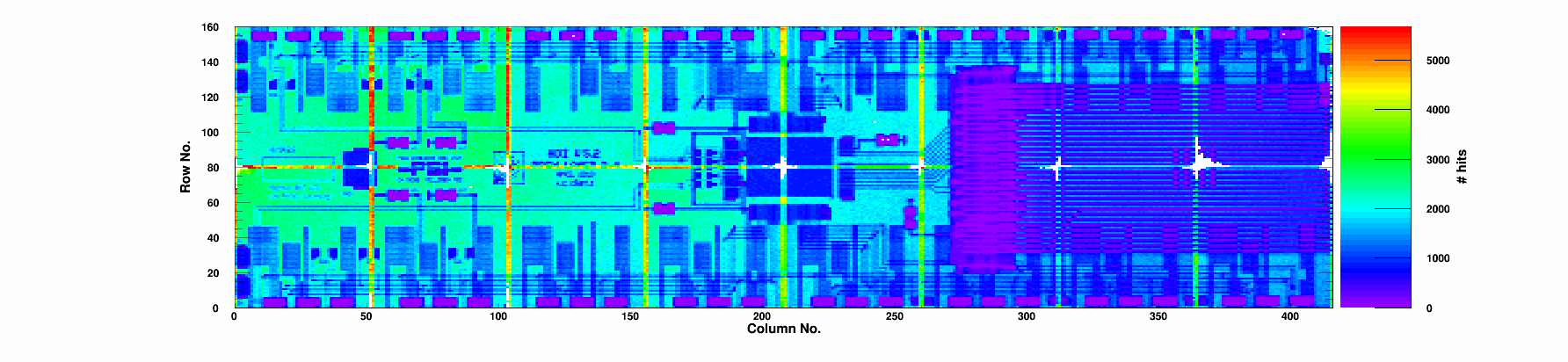

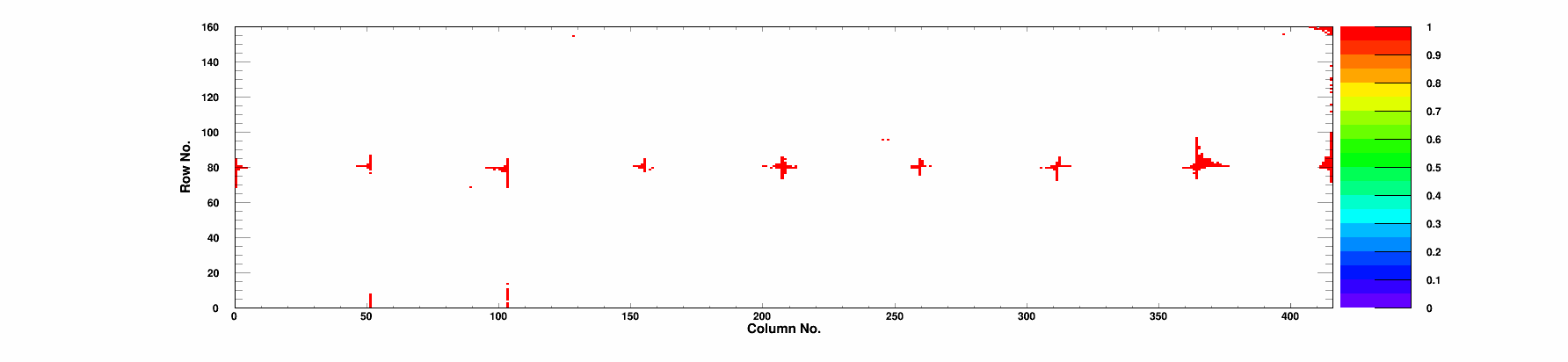

| BumpBondingDefects | Bump Bonding Defects | 360 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
128 | 0 | 99.87 | 99.10 | 0.42 | 20.5 | 62.3 | 128 | 0/0 | 0 | 1905 | 152 | 0 |
|
Chip 1
|
A
|
13 | 0 | 99.86 | 99.12 | 0.47 | 23.7 | 71.9 | 13 | 0/0 | 0 | 1952 | 154 | 0 |
|
Chip 2
|
A
|
11 | 0 | 99.86 | 99.14 | 0.56 | 22.8 | 69.2 | 11 | 0/0 | 0 | 1946 | 158 | 0 |
|
Chip 3
|
A
|
16 | 0 | 99.90 | 99.35 | 0.36 | 37.5 | 110.4 | 15 | 0/0 | 0 | 2005 | 156 | 1 |
|
Chip 4
|
A
|
13 | 0 | 99.87 | 99.35 | 0.61 | 39.8 | 116.8 | 13 | 0/0 | 0 | 2073 | 162 | 0 |
|
Chip 5
|
A
|
10 | 0 | 99.88 | 99.41 | 0.55 | 48.0 | 138.5 | 10 | 0/0 | 0 | 2141 | 158 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.86 | 99.32 | 0.84 | 52.3 | 149.9 | 6 | 0/0 | 0 | 2156 | 164 | 0 |
|
Chip 7
|
A
|
20 | 0 | 99.88 | 99.39 | 0.55 | 50.1 | 144.9 | 20 | 0/0 | 0 | 2120 | 156 | 0 |
|
Chip 8
|
A
|
29 | 0 | 99.87 | 99.21 | 0.81 | 49.3 | 141.7 | 29 | 0/0 | 0 | 2131 | 159 | 0 |
|
Chip 9
|
A
|
36 | 0 | 99.88 | 99.42 | 0.52 | 45.4 | 131.3 | 36 | 0/0 | 0 | 2109 | 161 | 0 |
|
Chip 10
|
A
|
5 | 0 | 99.89 | 99.37 | 0.39 | 46.7 | 134.5 | 5 | 0/0 | 0 | 2112 | 157 | 0 |
|
Chip 11
|
A
|
12 | 0 | 99.88 | 99.35 | 0.48 | 41.6 | 121.9 | 12 | 0/0 | 0 | 2090 | 169 | 0 |
|
Chip 12
|
A
|
16 | 0 | 99.89 | 99.35 | 0.54 | 35.1 | 103.4 | 16 | 0/0 | 0 | 2041 | 168 | 0 |
|
Chip 13
|
A
|
14 | 0 | 99.85 | 99.00 | 0.5 | 18.8 | 58.0 | 14 | 0/0 | 0 | 1941 | 155 | 0 |
|
Chip 14
|
A
|
7 | 0 | 99.88 | 99.29 | 0.42 | 20.8 | 63.3 | 7 | 0/0 | 0 | 1944 | 151 | 0 |
|
Chip 15
|
A
|
25 | 0 | 99.88 | 99.32 | 0.49 | 22.9 | 67.9 | 25 | 0/0 | 0 | 1940 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-23 | |
| TestTime | Test Time | 15:37 | |
| TestDuration | Duration | 1:25:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
