Test Date: 2016-02-26 10:11
Analysis date: 2016-05-26 11:55
Analysis date: 2016-05-26 11:55
Chip 0
Pixel Map: C0
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
SCurveWidths
| N | N | 4160 | |
| mu | μ | 115.20 | |
| sigma | RMS | 16.44 | |
| NNoiseDefects | # Noise defects | 0 |

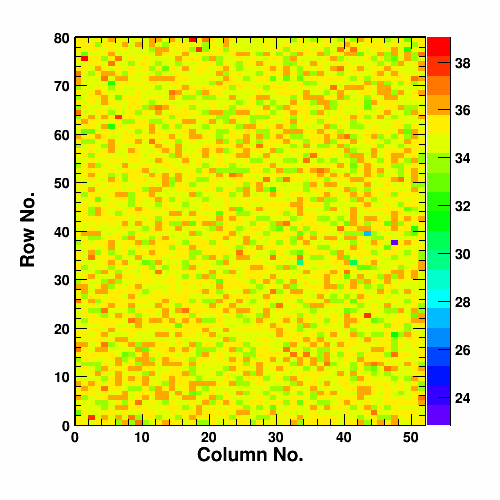

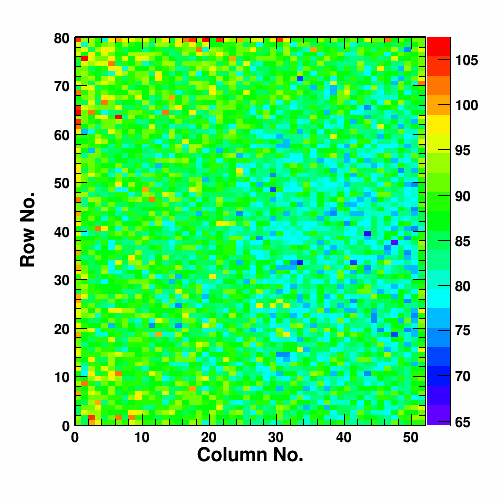

Vcal Threshold Trimmed
| N | N | 4160 | |
| mu | μ | 34.99 | |
| sigma | σ_fit | 0.80 | |
| NTrimProblems | N Trim Problems | 1 |

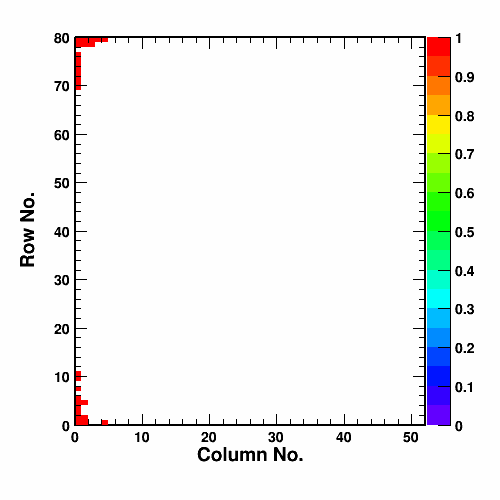

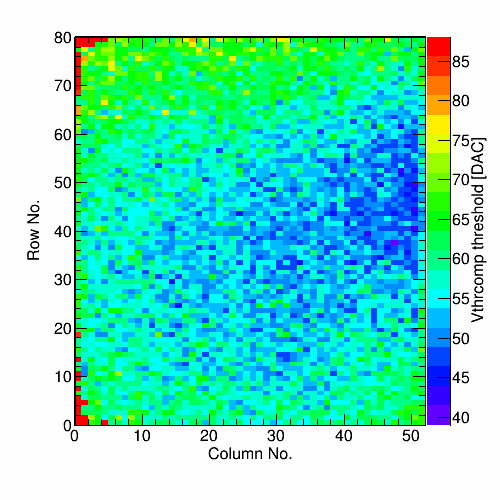

Bump Bonding: C0
| Mean | Mean | 55.04 | |
| RMS | RMS | 6.53 | |
| Threshold | Threshold | 88.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 29.0 | |
| nBumpBondingProblemsOld | N (old cut) | 29 |
Summary
| Total | Total | 30 | |
| nDeadPixel | - Dead Pixels | 0 | |
| nMaskDefect | - Mask Defects | 0 | |
| nDeadBumps | - Dead Bumps | 29 | |
| nDeadTrimbits | - Dead Trimbits | 0 | |
| nAddressProblems | - Address Problems | 0 | |
| empty | |||
| nNoisy1Pixel | >100% efficiency in alive map | 0 | |
| nNoisy2Pixel | Noisy Pixels | 0 | |
| nThrDefect | Trim Problems | 1 | |
| nGainDefect | PH Gain defects | 0 | |
| nPedDefect | PH Pedestal defects | 0 | |
| nPar1Defect | PH Parameter1 Defects | 0 | |
| PixelDefectsGrade | Pixel Defects Grade ROC | 1 |
Address Decoding: C0

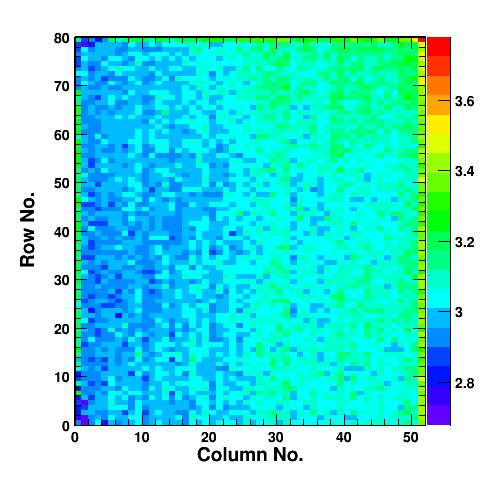

PHCalibrationGain
| N | N | 4160 | |
| mu | μ | 3.04 | |
| sigma | RMS | 0.09 | |
| NGainDefects | # Gain defects | 0 |
PHCalibrationParameter1
PHCalibrationPedestal
| N | N | 4160 | |
| mu | μ | 35.10 | |
| sigma | RMS | 18.87 | |
| mu_electrons | μ_electrons | 1755.21 | |
| sigma_electrons | σ_electrons | 943.39 |

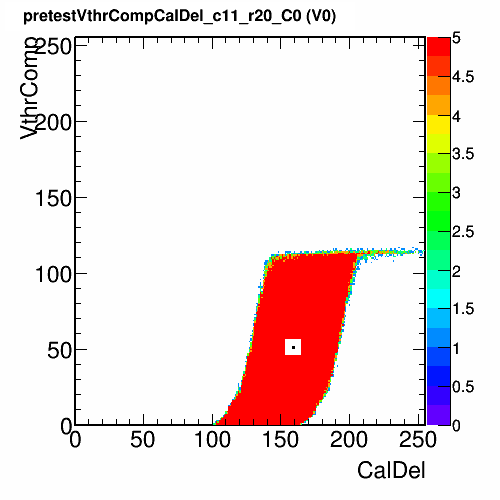

OpParameters
| vcalTrim | vcalTrim | 35 | |
| Vana | Vana | 84 | |
| CalDel | CalDel | 159 | |
| VthrComp | VthrComp | 88 | |
| Vtrim | Vtrim | 104 | |
| PHScale | PHScale | 82 | |
| PHOffset | PHOffset | 153 |

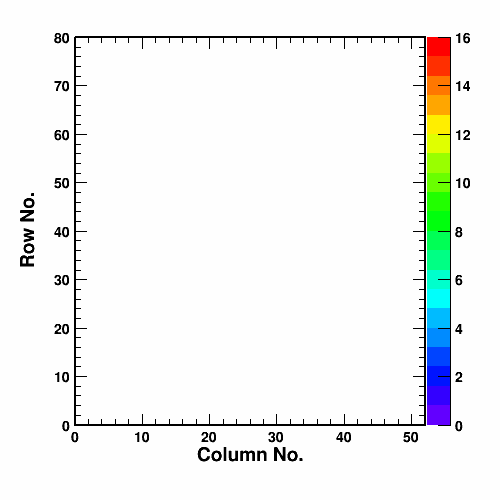

Trim Bit Problems
PerformanceParameters
| Noise | Noise | 115.20 | |
| Threshold | Threshold | 1750 | |
| ThresholdWidth | ThresholdWidth | 40 | |
| RelativeGainWidth | RelativeGainWidth | 0.030 | |

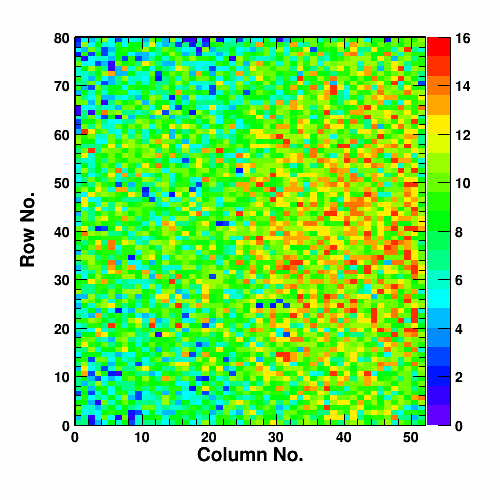

| TrimBits_mu | TrimBits_mu | 9.18 | |
| TrimBits_sigma | TrimBits_sigma | 2.73 |
Iana [ADC]/Iana [mA]
| FitFunction | fit | [0]+[1]*x+[2]*x**2 | |
| par0ia | par0ia | -5.291e+00 | |
| par1ia | par1ia | 4.293e+00 | |
| par2ia | par2ia | 1.849e-02 | |
| chi2ia | chi2/ndf | 5.37 |
Vdig [ADC]/Vdig [V]
| FitFunction | fit | [0]+[1]*x | |
| par0vd | par0vd | 8.453e+00 | |
| par1vd | par1vd | 6.099e+01 | |
| chi2vd | chi2/ndf | 0.21 |
Vana [ADC]/Vana [V]
| FitFunction | fit | [0]+[1]*x | |
| par0va | par0va | 5.721e+00 | |
| par1va | par1va | 6.109e+01 | |
| chi2va | chi2/ndf | 0.4 |
ReadbackCalVbg
| Vbg | Vbg | 1.167 |
ReadbackCal
| par0vd | par0vd | 8.45e+00 | |
| par1vd | par1vd | 6.10e+01 | |
| par0va | par0va | 5.72e+00 | |
| par1va | par1va | 6.11e+01 | |
| par0rbia | par0rbia | 1.37e+01 | |
| par1rbia | par1rbia | 1.08e+00 | |
| par0tbia | par0tbia | 4.37e+00 | |
| par1tbia | par1tbia | 2.38e-01 | |
| par2tbia | par2tbia | -1.53e-04 | |
| Vbg | Vbg | 1.167 | |
| par0ia | par0ia | -5.291e+00 | |
| par1ia | par1ia | 4.293e+00 | |
| par2ia | par2ia | 1.849e-02 | |
| ReadbackCalibrated | Calibrated | True |
