Test Date: 2016-02-26 10:52
Analysis date: 2016-05-26 11:39
Analysis date: 2016-05-26 11:39
M2171 XRayHRQualification
Summary
| Module | Module | M2171 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 190 | |
| BumpBondingDefects | Bump Bonding Defects | 180 | |
| NoisyPixels | Noisy Pixels | 7 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

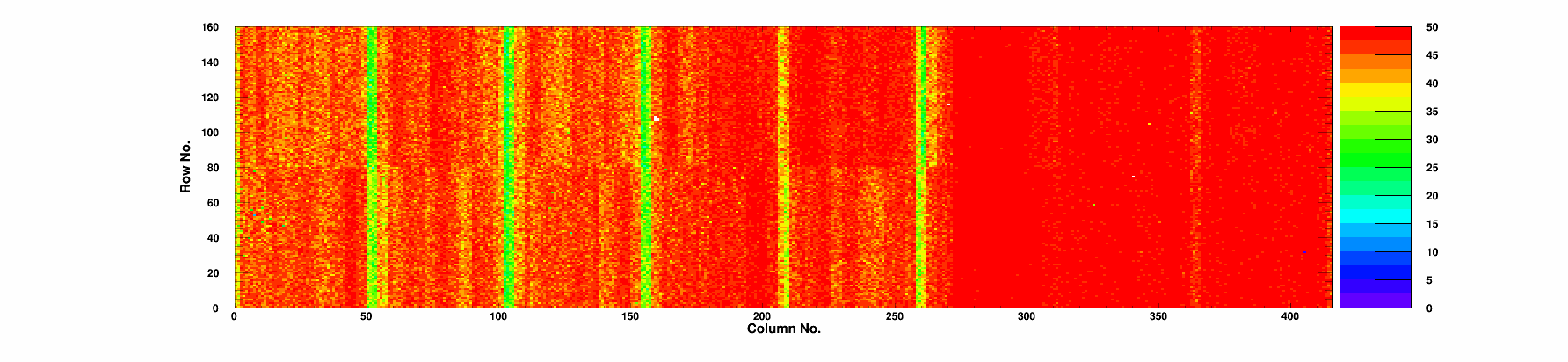

| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |
| Noise | Mean Noise | 168 | e- |
Summary ROCs

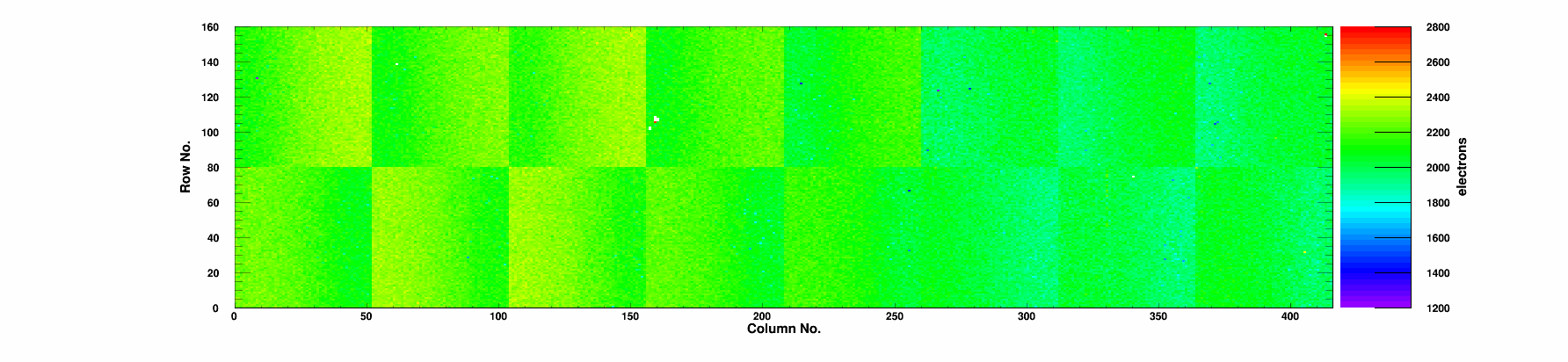

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
13 | 0 | 99.84 | 99.04 | 0.82 | 30.5 | 90.1 | 12 | 0/0 | 0 | 2003 | 175 | 1 |
|
Chip 1
|
A
|
7 | 0 | 99.88 | 99.31 | 0.55 | 30.8 | 91.5 | 7 | 0/0 | 0 | 2018 | 169 | 0 |
|
Chip 2
|
A
|
7 | 0 | 99.83 | 99.01 | 0.68 | 31.2 | 93.2 | 6 | 0/0 | 0 | 2006 | 188 | 0 |
|
Chip 3
|
A
|
6 | 0 | 99.87 | 99.35 | 0.65 | 46.9 | 135.8 | 6 | 0/0 | 0 | 2116 | 162 | 0 |
|
Chip 4
|
A
|
14 | 0 | 99.87 | 99.36 | 0.45 | 54.5 | 156.6 | 8 | 0/0 | 0 | 1945 | 169 | 5 |
|
Chip 5
|
A
|
14 | 0 | 99.87 | 99.37 | 0.59 | 67.7 | 190.0 | 14 | 0/0 | 0 | 2238 | 156 | 0 |
|
Chip 6
|
A
|
11 | 0 | 99.89 | 99.34 | 0.53 | 61.7 | 175.5 | 11 | 0/0 | 0 | 2192 | 167 | 0 |
|
Chip 7
|
A
|
20 | 0 | 99.87 | 99.37 | 0.61 | 67.3 | 189.9 | 20 | 0/0 | 0 | 2234 | 162 | 0 |
|
Chip 8
|
A
|
17 | 0 | 99.88 | 99.40 | 0.57 | 60.0 | 173.1 | 17 | 0/0 | 0 | 2176 | 158 | 0 |
|
Chip 9
|
A
|
16 | 0 | 99.88 | 99.37 | 0.46 | 65.3 | 185.8 | 16 | 0/0 | 0 | 2220 | 162 | 0 |
|
Chip 10
|
A
|
10 | 0 | 99.91 | 99.43 | 0.42 | 65.3 | 183.8 | 10 | 0/0 | 0 | 2227 | 163 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.88 | 99.33 | 0.75 | 52.4 | 151.9 | 4 | 0/0 | 0 | 2149 | 161 | 0 |
|
Chip 12
|
A
|
10 | 0 | 99.83 | 99.07 | 0.75 | 50.3 | 146.1 | 10 | 0/0 | 0 | 2114 | 168 | 0 |
|
Chip 13
|
A
|
13 | 0 | 99.87 | 99.36 | 0.42 | 28.9 | 86.9 | 13 | 0/0 | 0 | 2002 | 167 | 0 |
|
Chip 14
|
A
|
12 | 0 | 99.88 | 99.38 | 0.51 | 31.8 | 94.7 | 11 | 0/0 | 0 | 1955 | 175 | 1 |
|
Chip 15
|
A
|
16 | 0 | 99.87 | 99.37 | 0.8 | 33.5 | 98.3 | 15 | 0/0 | 0 | 2020 | 181 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-26 | |
| TestTime | Test Time | 10:52 | |
| TestDuration | Duration | 1:27:53 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
