Test Date: 2016-02-25 10:07
Analysis date: 2016-05-26 11:13
Analysis date: 2016-05-26 11:13
M2167 XRayHRQualification
Summary
| Module | Module | M2167 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 219 | |
| BumpBondingDefects | Bump Bonding Defects | 218 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

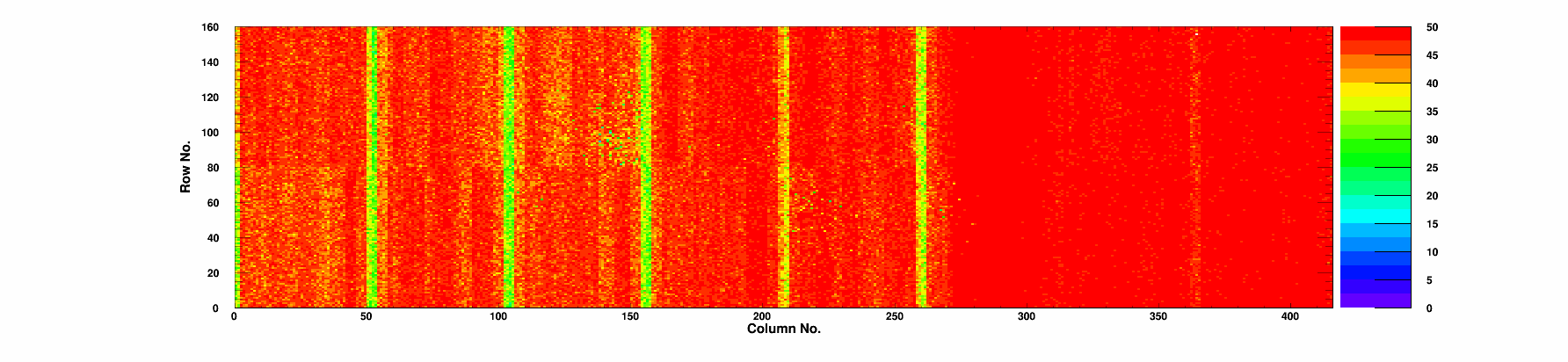

| Efficiency | Efficiency 50/120 | 99.88/99.34 | % |
| Noise | Mean Noise | 160 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
16 | 0 | 99.88 | 99.33 | 0.57 | 28.9 | 86.0 | 15 | 0/0 | 0 | 1951 | 162 | 1 |
|
Chip 1
|
A
|
19 | 0 | 99.84 | 99.07 | 0.48 | 30.3 | 90.8 | 19 | 0/0 | 0 | 2012 | 163 | 0 |
|
Chip 2
|
A
|
17 | 0 | 99.87 | 99.38 | 0.51 | 28.7 | 86.6 | 17 | 0/0 | 0 | 1986 | 173 | 0 |
|
Chip 3
|
A
|
5 | 0 | 99.88 | 99.35 | 0.69 | 48.2 | 140.2 | 5 | 0/0 | 0 | 2128 | 160 | 0 |
|
Chip 4
|
A
|
13 | 0 | 99.89 | 99.35 | 0.62 | 48.5 | 141.8 | 13 | 0/0 | 0 | 2128 | 156 | 0 |
|
Chip 5
|
A
|
11 | 0 | 99.86 | 99.28 | 1.42 | 62.3 | 177.2 | 11 | 0/0 | 0 | 2201 | 158 | 0 |
|
Chip 6
|
A
|
24 | 0 | 99.89 | 99.36 | 0.61 | 59.0 | 171.1 | 24 | 0/0 | 0 | 2195 | 162 | 0 |
|
Chip 7
|
A
|
22 | 0 | 99.88 | 99.42 | 0.51 | 54.2 | 159.3 | 22 | 0/0 | 0 | 2131 | 158 | 0 |
|
Chip 8
|
A
|
8 | 0 | 99.90 | 99.37 | 0.82 | 59.4 | 171.4 | 8 | 0/0 | 0 | 2175 | 159 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.89 | 99.37 | 0.65 | 55.6 | 162.1 | 2 | 0/0 | 0 | 2173 | 153 | 0 |
|
Chip 10
|
A
|
6 | 0 | 99.90 | 99.39 | 0.82 | 58.9 | 169.5 | 6 | 0/0 | 0 | 2180 | 153 | 0 |
|
Chip 11
|
A
|
27 | 0 | 99.89 | 99.38 | 0.62 | 53.5 | 154.7 | 27 | 0/0 | 0 | 2191 | 157 | 0 |
|
Chip 12
|
A
|
5 | 0 | 99.86 | 99.34 | 1.16 | 50.2 | 146.1 | 5 | 0/0 | 0 | 2139 | 162 | 0 |
|
Chip 13
|
A
|
4 | 0 | 99.85 | 99.29 | 0.9 | 28.1 | 85.7 | 4 | 0/0 | 0 | 2005 | 160 | 0 |
|
Chip 14
|
A
|
14 | 0 | 99.91 | 99.41 | 0.49 | 31.8 | 95.4 | 14 | 0/0 | 0 | 2027 | 167 | 0 |
|
Chip 15
|
A
|
26 | 0 | 99.89 | 99.40 | 0.37 | 29.9 | 88.9 | 26 | 0/0 | 0 | 2002 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-25 | |
| TestTime | Test Time | 10:07 | |
| TestDuration | Duration | 1:27:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
