Module | Module | M2163 | |
Grade | Grade | B | |
ElectricalGrade | Electrical Grade | A | |
IVGrade | IV Grade | B | |
ManualGrade | Manual Grade | None | |
PixelDefects | Pixel Defects - A/B/C | 11 - 16/0/0 | |
DeadPixels | Dead Pixels | 2 | |
AddressProblems | Address Problems | 0 | |
ThresholdDefects | Threshold Defects | 4 | |
MaskDefects | Mask Defects | 0 | |
DeadBumps | Dead Bumps | 5 | |
NoisyPixels | Noise Defects | 0 | |
TrimProblems | Trim Problems | 2 | |
PHGainDefects | PH Gain Defects | 2 | |
PHPar1Defects | PH Parameter1 Defects | 1 |
TestCenter | Test Center | ETH | |
TestDate | Test Date | 2016-02-23 | |
TestTime | Test Time | 10:05 | |
TestDuration | Duration | 1:28:38 | |
TempC | Temparature | 17 | °C |
TBM1 | TBM1 | ok, 0x34 0x64 | |
TBM2 | TBM2 | ok, 0x00 0x64 | |
PxarVersion | pXar | v2.7.5+16 g4df2ad8 | |
DTB_FW | DTB FW | 4.6 | |
ModuleIa | Module Ia | 388.3 | mA |
Noise | Noise | 134.63 | e |
NoiseROCs | Noise grades | 16/0/0 | |

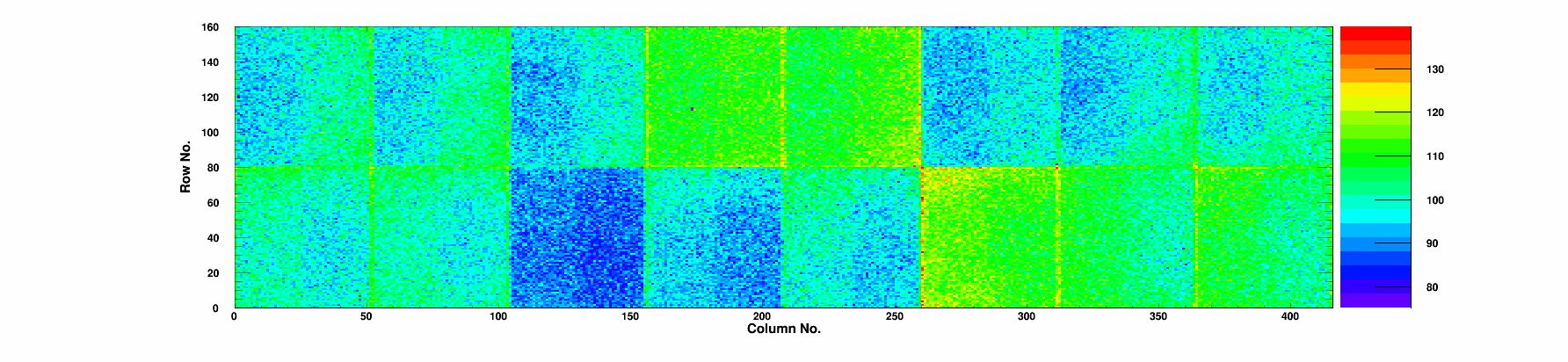

VcalThrWidth | Vcal Thr. Width | 43.56 | e |
VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
RelGainWidth | Rel. Gain Width | 0.03 | % |
RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
PedestalSpread | Pedestal Spread | 1172.94 | e |
PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
Parameter1 | Parameter1 | 0.69 | |
Parameter1ROCs | Par1 grades | 16/0/0 | |
CurrentAtVoltage150V | I(150 V) | 6.25 | μA |
CurrentVariation | I(150 V) / I(100 V) | 1.34 |
Duration | Duration | 1:28:38 | |
MinCurrent | min. Current | 0.371 | A |
MaxCurrent | max. Current | 0.481 | A |
Duration | Duration | 1:28:38 | |
MinCurrent | min. Current | 0.071 | A |
MaxCurrent | max. Current | 0.392 | A |
ModuleIa | Module Ia | 388.3 | mA |
IanaLossProblems | Iana problems | No | |
Mean | mean | 19.30 | |
Min | min | 18.50 | |
Max | max | 20.10 | |
NROCsNotProgrammable | ROCs not programmable | 0 |
Temperature | Temp. while test | 17.00 +/- 0.09 | °C |
Duration | Duration of test | 0:08:37 |
ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
137.38
|
1750 |
42
|
0.031
|
1108
|
Chip 1 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
133.09
|
1750 |
42
|
0.031
|
1210
|
Chip 2 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
137.99
|
1748 |
42
|
0.031
|
1109
|
Chip 3 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
129.04
|
1750 |
46
|
0.027
|
1412
|
Chip 4 |
A
|
2
|
0
|
0
|
1
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
122.61
|
1749 |
44
|
0.033
|
1177
|
Chip 5 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
134.83
|
1748 |
44
|
0.031
|
1279
|
Chip 6 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
142.09
|
1749 |
42
|
0.028
|
1162
|
Chip 7 |
A
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
140.65
|
1750 |
46
|
0.028
|
1216
|
Chip 8 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
138.53
|
1750 |
43
|
0.031
|
1021
|
Chip 9 |
A
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
132.25
|
1750 |
41
|
0.031
|
1009
|
Chip 10 |
A
|
2
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
129.48
|
1750 |
40
|
0.037
|
979
|
Chip 11 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
134.79
|
1750 |
42
|
0.036
|
1167
|
Chip 12 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
144.48
|
1750 |
44
|
0.034
|
1062
|
Chip 13 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
124.99
|
1756 |
45
|
0.028
|
1302
|
Chip 14 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
137.08
|
1749 |
47
|
0.033
|
1254
|
Chip 15 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
134.73
|
1748 |
44
|
0.034
|
1299
|
ModifiedGrading | Modified Grading | True | |
GradingParameters_leakageCurrentRatioB | leakageCurrentRatioB | 20 => -111 |
nTBMs | n | 1 | |
TBMType | Type | tbm09c | |
Core0a_basea | Core 0a base a | 0x64 | |
Core0a_basee | Core 0a base e | 0x34 | |
Core0b_basea | Core 0b base a | 0x64 | |
Core0b_basee | Core 0b base e | 0x00 | |
RocDelay_Ch0 | Roc Delay Ch0 | 4 | |
RocDelay_Ch1 | Roc Delay Ch1 | 4 | |
RocDelay_Ch2 | Roc Delay Ch2 | 4 | |
RocDelay_Ch3 | Roc Delay Ch3 | 4 | |
Phase400 | Phase 400 | 5 | |
Phase160 | Phase 160 | 1 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 2 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 2 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 | |
message_eventid_count | Event ID mismatch | 1 | |
message_tokenchain_count | Token Chain Length | 1 |
