Test Date: 2016-02-24 09:58
Analysis date: 2016-05-26 10:40
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
47.1226875 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
47.1226875 |
|
| medianSlope |
median Slope |
47.2485 |
|
| minSlope |
min Slope |
43.115 |
|
| maxSlope |
max Slope |
49.834 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-22.62325 |
|
| medianOffset |
median Offset |
-35.3055 |
|
| minOffset |
min Offset |
-181.549 |
|
| maxOffset |
max Offset |
130.362 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
3.278375 |
|
| medianchi2 |
median chi2 |
0.3705 |
|
| minchi2 |
min chi2 |
0.002 |
|
| maxchi2 |
max chi2 |
16.515 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-130.3 e-
|
6.7 e-
|
|
1
|
46.6 e- / Vcal
|
0.2 e- / Vcal
|
56.5 e-
|
19.6 e-
|
|
2
|
46.7 e- / Vcal
|
0.2 e- / Vcal
|
25.6 e-
|
23.9 e-
|
|
3
|
49.1 e- / Vcal
|
0.2 e- / Vcal
|
-177.0 e-
|
22.1 e-
|
|
4
|
46.0 e- / Vcal
|
0.1 e- / Vcal
|
-26.4 e-
|
6.7 e-
|
|
5
|
46.8 e- / Vcal
|
0.1 e- / Vcal
|
-44.3 e-
|
17.0 e-
|
|
6
|
47.6 e- / Vcal
|
0.1 e- / Vcal
|
110.8 e-
|
7.6 e-
|
|
7
|
47.2 e- / Vcal
|
0.1 e- / Vcal
|
10.4 e-
|
10.0 e-
|
|
8
|
47.3 e- / Vcal
|
0.1 e- / Vcal
|
-47.9 e-
|
7.0 e-
|
|
9
|
43.1 e- / Vcal
|
0.1 e- / Vcal
|
-115.3 e-
|
7.9 e-
|
|
10
|
49.8 e- / Vcal
|
0.2 e- / Vcal
|
-49.9 e-
|
17.5 e-
|
|
11
|
47.4 e- / Vcal
|
0.1 e- / Vcal
|
-90.8 e-
|
8.4 e-
|
|
12
|
48.0 e- / Vcal
|
0.2 e- / Vcal
|
99.5 e-
|
18.6 e-
|
|
13
|
46.4 e- / Vcal
|
0.2 e- / Vcal
|
-181.5 e-
|
22.0 e-
|
|
14
|
47.8 e- / Vcal
|
0.1 e- / Vcal
|
68.2 e-
|
7.1 e-
|
|
15
|
45.5 e- / Vcal
|
0.2 e- / Vcal
|
130.4 e-
|
18.9 e-
|
|
Average
|
47.1 e- / Vcal
|
|
-22.6 e-
|
|
|
Median
|
94.5 e- / Vcal
|
|
-37.6 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

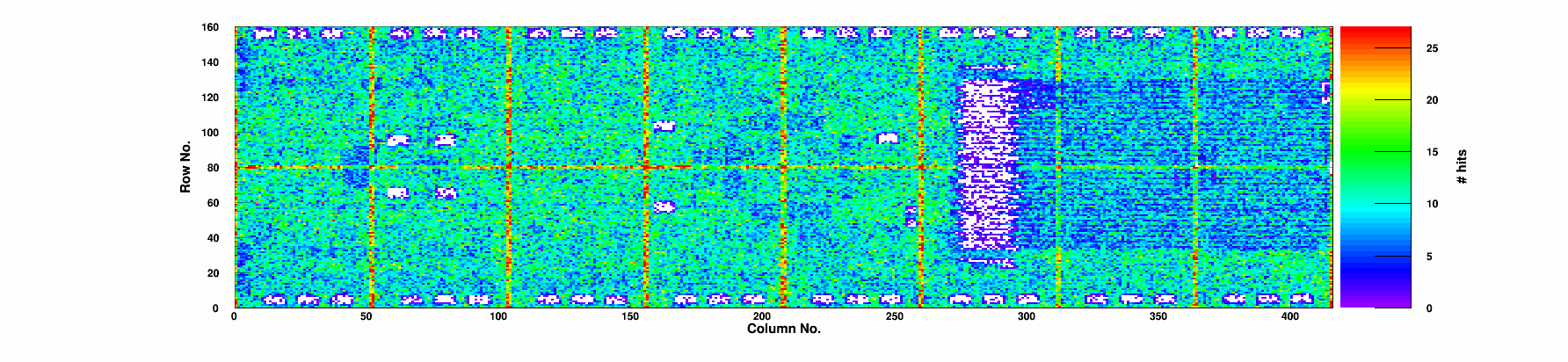

Hits distribution Zn inner/edge/corner

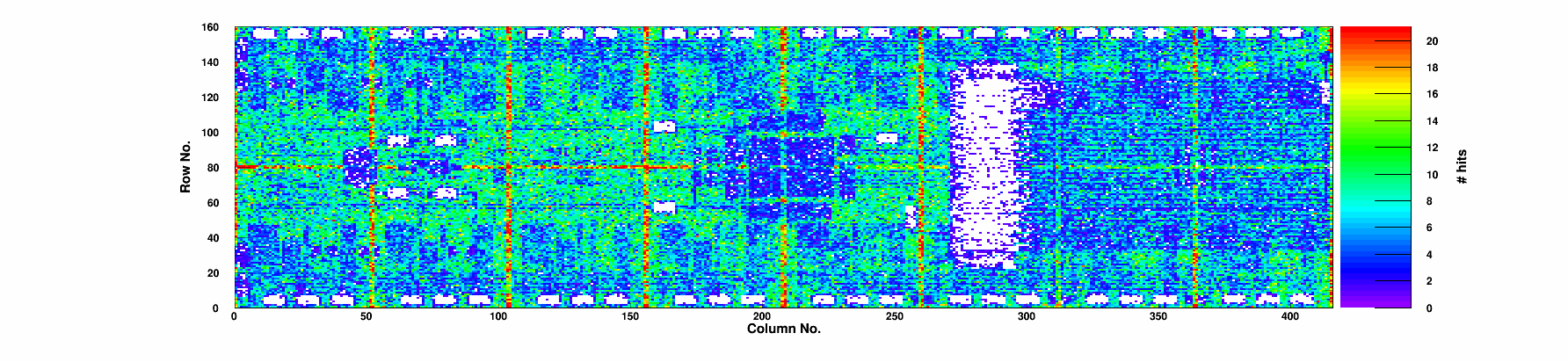

Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
