Test Date: 2016-02-11 16:37
Analysis date: 2016-05-26 10:27
Analysis date: 2016-05-26 10:27
M2159 XRayHRQualification
Summary
| Module | Module | M2159 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 43 | |
| BumpBondingDefects | Bump Bonding Defects | 40 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

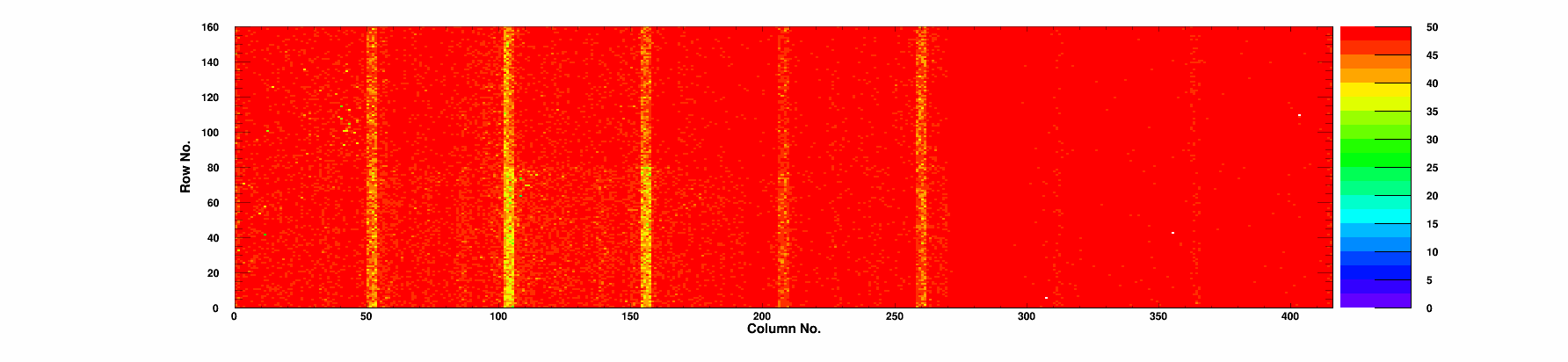

| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |

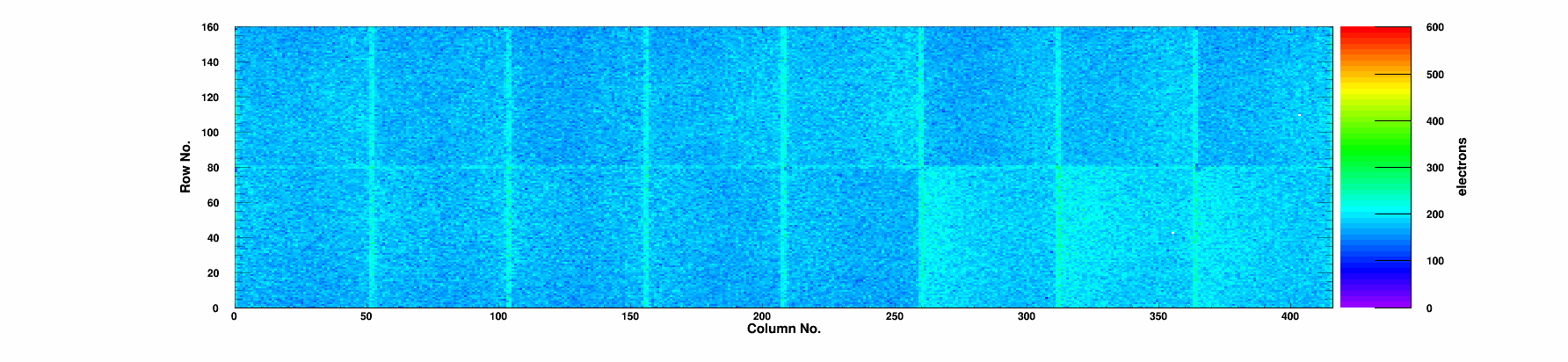

| Noise | Mean Noise | 177 | e- |
Summary ROCs

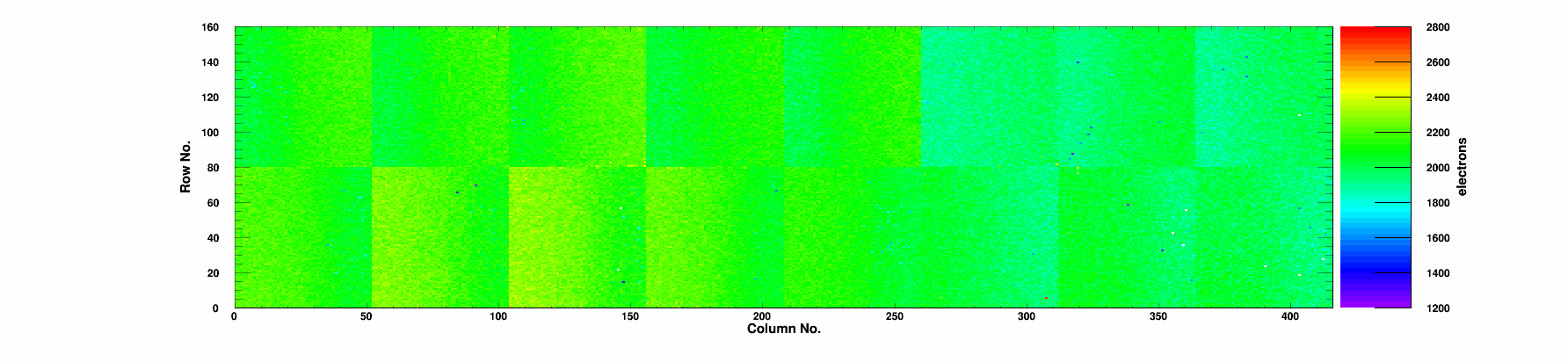

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.86 | 99.07 | 0.44 | 75.1 | 6 | 25.5 | 0/0 | 0 | 1918 | 176 | 1 |
|
Chip 1
|
A
|
2 | 0 | 99.84 | 99.05 | 0.74 | 79.0 | 2 | 26.6 | 0/0 | 0 | 1984 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.07 | 0.7 | 67.0 | 0 | 22.3 | 0/0 | 0 | 1944 | 172 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.36 | 0.64 | 120.8 | 0 | 42.0 | 0/0 | 0 | 2090 | 180 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.37 | 0.5 | 121.5 | 0 | 42.1 | 0/0 | 0 | 2087 | 175 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.35 | 0.62 | 142.8 | 0 | 50.5 | 0/0 | 0 | 2152 | 169 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.36 | 0.52 | 143.8 | 1 | 49.6 | 0/0 | 0 | 2107 | 172 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.29 | 1.37 | 136.5 | 1 | 47.3 | 0/0 | 0 | 2117 | 175 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.89 | 99.37 | 0.81 | 145.3 | 3 | 50.9 | 0/0 | 0 | 2142 | 174 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.34 | 0.75 | 161.5 | 0 | 57.2 | 0/0 | 0 | 2188 | 176 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.35 | 0.45 | 171.6 | 0 | 61.4 | 0/0 | 0 | 2210 | 175 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.36 | 0.54 | 144.3 | 0 | 50.9 | 0/0 | 0 | 2156 | 173 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.87 | 99.36 | 0.59 | 126.2 | 3 | 44.2 | 0/0 | 0 | 2098 | 172 | 0 |
|
Chip 13
|
A
|
6 | 0 | 99.87 | 99.25 | 0.5 | 84.1 | 5 | 28.5 | 0/0 | 0 | 1990 | 189 | 0 |
|
Chip 14
|
A
|
5 | 0 | 99.88 | 99.33 | 0.5 | 92.4 | 4 | 31.8 | 0/0 | 0 | 1972 | 193 | 1 |
|
Chip 15
|
A
|
15 | 0 | 99.87 | 99.26 | 0.71 | 87.9 | 15 | 30.5 | 0/0 | 0 | 1980 | 188 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-11 | |
| TestTime | Test Time | 16:37 | |
| TestDuration | Duration | 1:27:53 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
