Test Date: 2016-02-11 16:37
Analysis date: 2016-05-26 10:15
Analysis date: 2016-05-26 10:15
M2157 XRayHRQualification
Summary
| Module | Module | M2157 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 10 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |
| Noise | Mean Noise | 170 | e- |

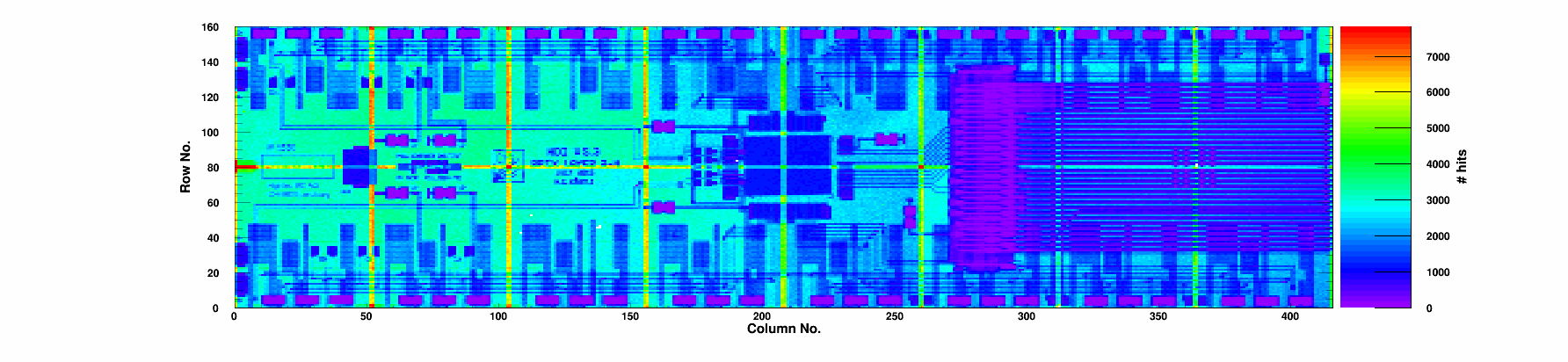

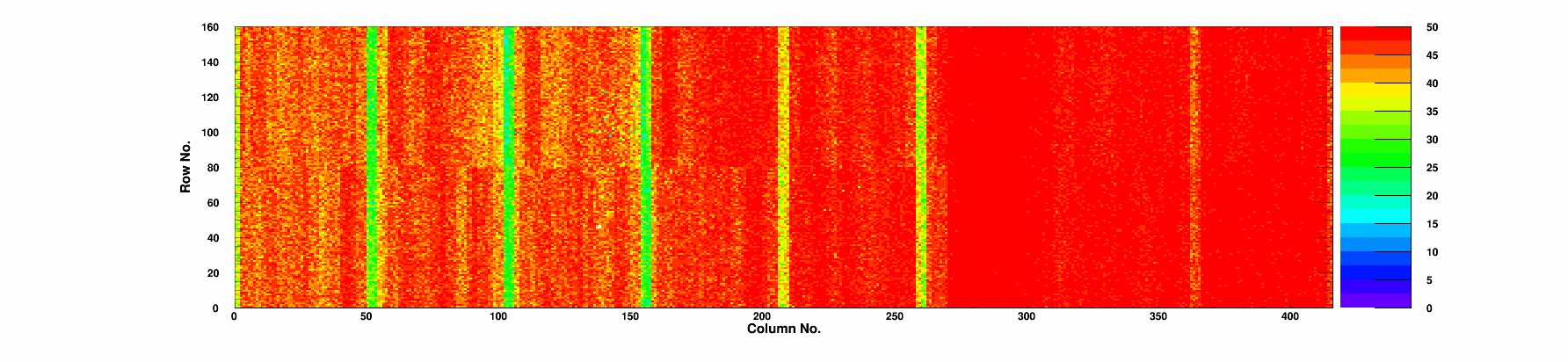

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.86 | 99.22 | 0.56 | 98.7 | 3 | 33.8 | 0/0 | 0 | 2023 | 176 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 98.97 | 0.51 | 101.8 | 0 | 34.6 | 0/0 | 0 | 2043 | 178 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.24 | 0.52 | 83.2 | 0 | 27.5 | 0/0 | 0 | 2009 | 168 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.17 | 1.01 | 136.5 | 0 | 47.2 | 0/0 | 0 | 2133 | 167 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.86 | 99.30 | 0.81 | 141.3 | 1 | 49.0 | 0/0 | 0 | 2093 | 167 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.32 | 0.92 | 193.5 | 0 | 68.9 | 0/0 | 0 | 2247 | 168 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.34 | 0.56 | 186.1 | 0 | 65.2 | 0/0 | 0 | 2228 | 177 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.34 | 0.65 | 186.9 | 0 | 65.9 | 0/0 | 0 | 2221 | 163 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.33 | 0.58 | 184.6 | 0 | 64.4 | 0/0 | 0 | 2218 | 166 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.37 | 0.56 | 181.8 | 0 | 63.5 | 0/0 | 0 | 2204 | 165 | 0 |
|
Chip 10
|
A
|
5 | 0 | 99.89 | 99.24 | 0.84 | 178.8 | 2 | 63.0 | 0/0 | 0 | 2091 | 159 | 3 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 99.28 | 1.2 | 159.5 | 0 | 55.4 | 0/0 | 0 | 2169 | 167 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.33 | 0.61 | 137.1 | 0 | 47.0 | 0/0 | 0 | 2114 | 163 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.31 | 0.7 | 89.8 | 0 | 29.9 | 0/0 | 0 | 2025 | 176 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.84 | 99.03 | 0.66 | 96.7 | 1 | 32.7 | 0/0 | 0 | 2019 | 179 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.32 | 0.58 | 95.5 | 0 | 32.7 | 0/0 | 0 | 2033 | 175 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-11 | |
| TestTime | Test Time | 16:37 | |
| TestDuration | Duration | 1:27:53 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
