Test Date: 2016-02-08 16:09
Analysis date: 2016-05-26 09:26
Analysis date: 2016-05-26 09:26
M2149 XRayHRQualification
Summary
| Module | Module | M2149 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 346 | |

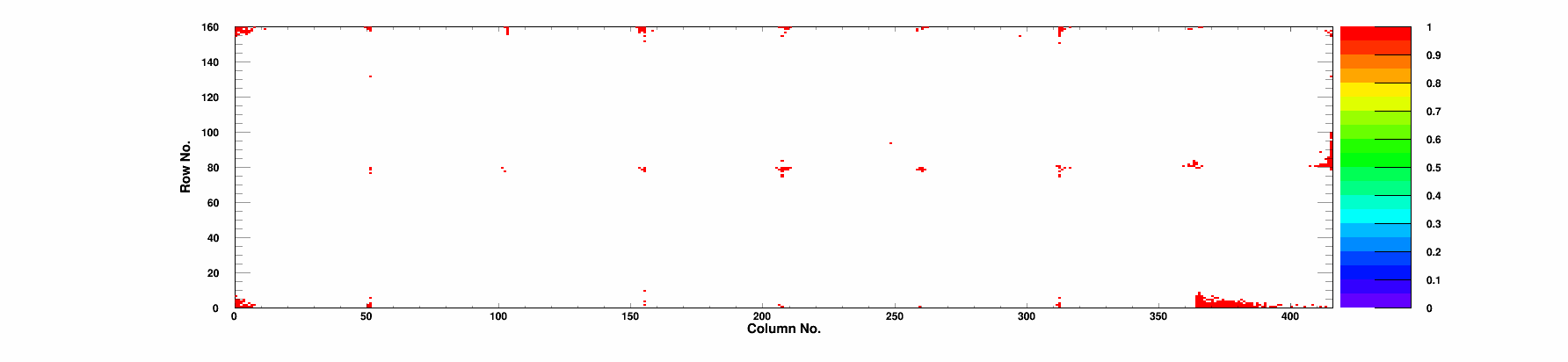

| BumpBondingDefects | Bump Bonding Defects | 344 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

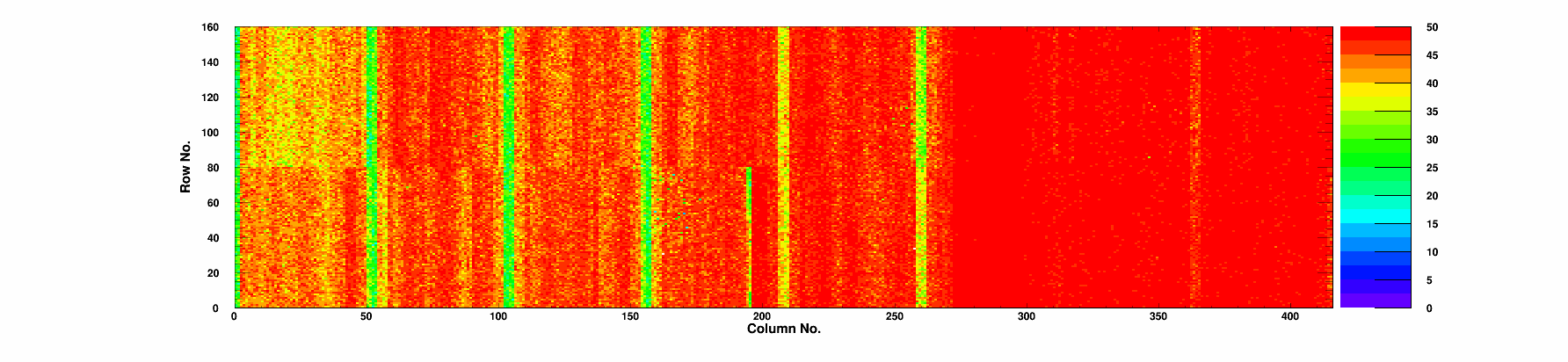

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |

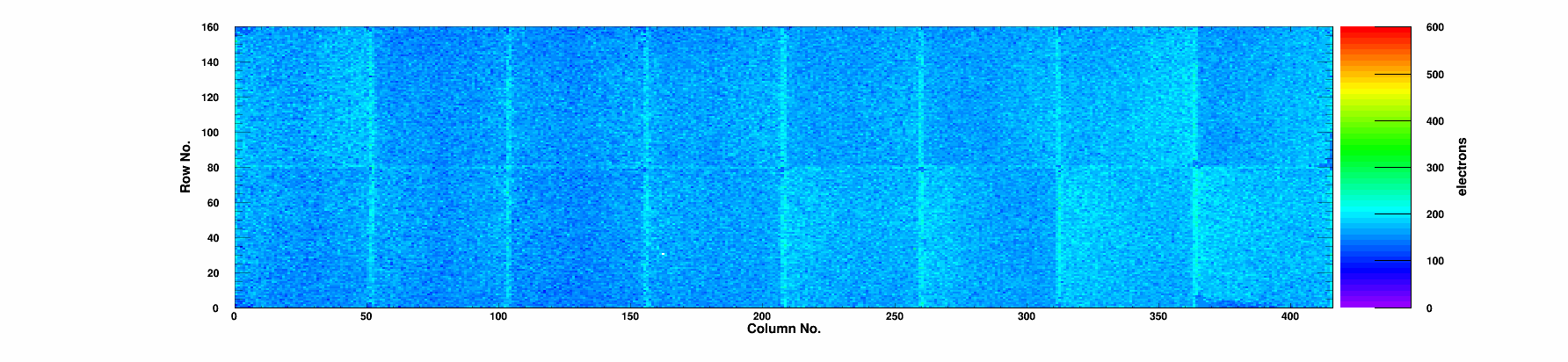

| Noise | Mean Noise | 165 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
47 | 0 | 99.88 | 99.28 | 0.51 | 30.1 | 90.4 | 47 | 0/0 | 0 | 1986 | 167 | 0 |
|
Chip 1
|
A
|
23 | 0 | 99.89 | 99.35 | 0.68 | 33.0 | 99.4 | 23 | 0/0 | 0 | 2025 | 175 | 0 |
|
Chip 2
|
A
|
5 | 0 | 99.84 | 99.07 | 0.59 | 28.6 | 87.9 | 5 | 0/0 | 0 | 1989 | 164 | 0 |
|
Chip 3
|
A
|
9 | 0 | 99.89 | 99.35 | 0.63 | 51.2 | 148.3 | 9 | 0/0 | 0 | 2109 | 164 | 0 |
|
Chip 4
|
A
|
5 | 0 | 99.89 | 99.33 | 0.5 | 56.9 | 165.5 | 5 | 0/0 | 0 | 2166 | 164 | 0 |
|
Chip 5
|
A
|
14 | 0 | 99.86 | 99.39 | 0.65 | 66.8 | 189.0 | 14 | 0/0 | 0 | 2228 | 158 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.87 | 99.34 | 0.68 | 59.4 | 171.6 | 6 | 0/0 | 0 | 2167 | 156 | 0 |
|
Chip 7
|
A
|
35 | 0 | 99.87 | 99.19 | 1.11 | 73.3 | 210.5 | 35 | 0/0 | 0 | 2274 | 169 | 0 |
|
Chip 8
|
A
|
34 | 0 | 99.86 | 99.32 | 0.78 | 68.5 | 195.3 | 34 | 0/0 | 0 | 2232 | 159 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.87 | 99.36 | 0.69 | 66.7 | 189.3 | 2 | 0/0 | 0 | 2238 | 159 | 0 |
|
Chip 10
|
A
|
8 | 0 | 99.86 | 99.31 | 0.69 | 62.1 | 176.6 | 8 | 0/0 | 0 | 2200 | 153 | 0 |
|
Chip 11
|
A
|
10 | 0 | 99.87 | 99.29 | 1.12 | 55.3 | 161.3 | 9 | 0/0 | 0 | 2112 | 163 | 1 |
|
Chip 12
|
A
|
10 | 0 | 99.90 | 99.32 | 0.77 | 51.0 | 149.2 | 9 | 0/0 | 0 | 2118 | 171 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.88 | 99.36 | 0.52 | 28.3 | 86.2 | 5 | 0/0 | 0 | 2000 | 167 | 0 |
|
Chip 14
|
A
|
11 | 0 | 99.88 | 99.36 | 0.45 | 30.4 | 92.3 | 11 | 0/0 | 0 | 2016 | 177 | 0 |
|
Chip 15
|
B
|
122 | 0 | 99.88 | 99.33 | 0.51 | 30.6 | 91.8 | 122 | 0/0 | 0 | 1995 | 177 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-08 | |
| TestTime | Test Time | 16:09 | |
| TestDuration | Duration | 1:23:4 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
