Module | Module | M2148 | |
Grade | Grade | A | |
ElectricalGrade | Electrical Grade | A | |
IVGrade | IV Grade | A | |
ManualGrade | Manual Grade | None | |
PixelDefects | Pixel Defects - A/B/C | 40 - 16/0/0 | |
DeadPixels | Dead Pixels | 2 | |
AddressProblems | Address Problems | 0 | |
ThresholdDefects | Threshold Defects | 3 | |
MaskDefects | Mask Defects | 0 | |
DeadBumps | Dead Bumps | 34 | |
NoisyPixels | Noise Defects | 1 | |
TrimProblems | Trim Problems | 0 | |
PHGainDefects | PH Gain Defects | 1 | |
PHPar1Defects | PH Parameter1 Defects | 0 |
TestCenter | Test Center | ETH | |
TestDate | Test Date | 2016-02-06 | |
TestTime | Test Time | 09:18 | |
TestDuration | Duration | 1:28:28 | |
TempC | Temparature | -20 | °C |
TBM1 | TBM1 | ok, 0x34 0x64 | |
TBM2 | TBM2 | ok, 0x00 0x64 | |
PxarVersion | pXar | v2.7.5+16 g4df2ad8 | |
DTB_FW | DTB FW | 4.6 | |
ModuleIa | Module Ia | 387.5 | mA |
Noise | Noise | 123.40 | e |
NoiseROCs | Noise grades | 16/0/0 | |

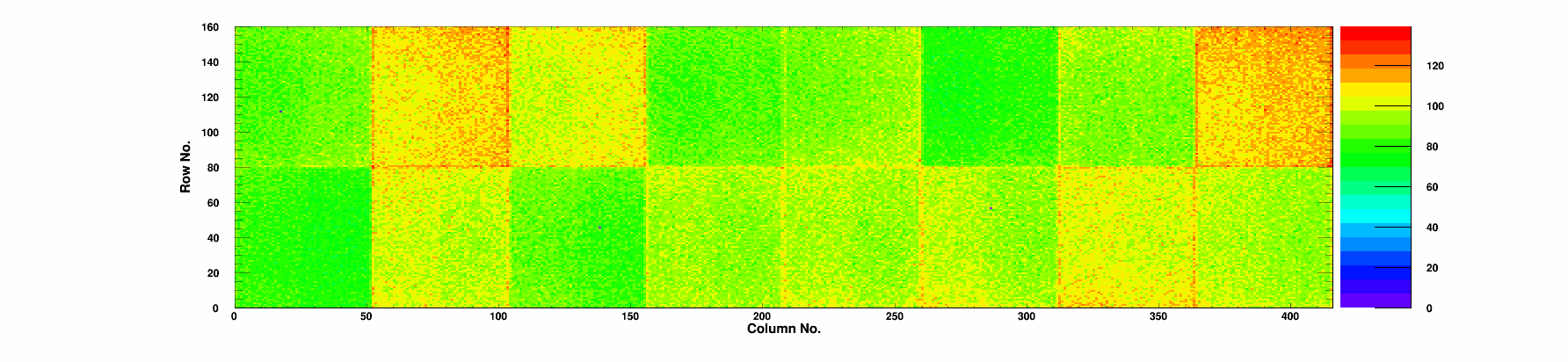

VcalThrWidth | Vcal Thr. Width | 43.72 | e |
VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
RelGainWidth | Rel. Gain Width | 0.03 | % |
RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
PedestalSpread | Pedestal Spread | 1143.50 | e |
PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
Parameter1 | Parameter1 | 0.71 | |
Parameter1ROCs | Par1 grades | 16/0/0 | |
CurrentAtVoltage150V | I_rec(150 V) @ 17°C | 12.23 | μA |
CurrentAtVoltage150V_ORIG | I_orig(150V) @ -20.0 °C | 0.27 | μA |
CurrentVariation | I(150 V) / I(100 V) | 1.57 |
CurrentAtVoltage150V | I_orig(150V) @ -20.0 °C | 0.27 | μA |
Variation | I(150 V) / I(100 V) | 1.57 | |
recalculatedCurrentAtVoltage150V | I_rec(150 V) @ 17°C | 12.23 | μA |
recalculatedCurrentVariation | I_rec(150 V) / I_rec(100 V) | 1.57 | |
CurrentRatio100V | I(+17C)/I(-20C) 100V | 20.06 | |
CurrentRatio150V | I(+17C)/I(-20C) 150V | 18.26 |
Duration | Duration | 1:28:28 | |
MinCurrent | min. Current | 0.375 | A |
MaxCurrent | max. Current | 0.515 | A |
Duration | Duration | 1:28:28 | |
MinCurrent | min. Current | 0.072 | A |
MaxCurrent | max. Current | 0.392 | A |
ModuleIa | Module Ia | 387.5 | mA |
IanaLossProblems | Iana problems | No | |
Mean | mean | 19.45 | |
Min | min | 18.50 | |
Max | max | 20.10 | |
NROCsNotProgrammable | ROCs not programmable | 0 |
Temperature | Temp. while test | -20.00 +/- 0.02 | °C |
Duration | Duration of test | 1:29:14 |
ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0 |
A
|
11
|
0
|
0
|
11
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
117.99
|
1748 |
48
|
0.024
|
1240
|
Chip 1 |
A
|
5
|
0
|
0
|
5
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
132.99
|
1750 |
44
|
0.056
|
1236
|
Chip 2 |
A
|
3
|
0
|
0
|
3
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
99.87
|
1748 |
42
|
0.030
|
992
|
Chip 3 |
A
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
126.38
|
1750 |
45
|
0.031
|
1170
|
Chip 4 |
A
|
12
|
0
|
0
|
12
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
113.11
|
1750 |
40
|
0.034
|
882
|
Chip 5 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
135.42
|
1750 |
46
|
0.028
|
1073
|
Chip 6 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
125.47
|
1751 |
46
|
0.030
|
1329
|
Chip 7 |
A
|
3
|
0
|
0
|
0
|
0
|
0
|
1
|
2
|
0
|
0
|
0
|
116.88
|
1749 |
43
|
0.028
|
984
|
Chip 8 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
96.77
|
1750 |
39
|
0.032
|
914
|
Chip 9 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
139.23
|
1752 |
43
|
0.042
|
1150
|
Chip 10 |
A
|
2
|
1
|
0
|
0
|
0
|
0
|
0
|
1
|
1
|
0
|
0
|
116.10
|
1750 |
45
|
0.028
|
1096
|
Chip 11 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
133.32
|
1751 |
44
|
0.032
|
1410
|
Chip 12 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
131.89
|
1750 |
44
|
0.033
|
1226
|
Chip 13 |
A
|
2
|
1
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
130.39
|
1750 |
44
|
0.028
|
1202
|
Chip 14 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
136.35
|
1748 |
46
|
0.034
|
1348
|
Chip 15 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
122.18
|
1748 |
41
|
0.028
|
1044
|
ModifiedGrading | Modified Grading | True | |
GradingParameters_leakageCurrentRatioB | leakageCurrentRatioB | 20 => -111 |
nTBMs | n | 1 | |
TBMType | Type | tbm09c | |
Core0a_basea | Core 0a base a | 0x64 | |
Core0a_basee | Core 0a base e | 0x34 | |
Core0b_basea | Core 0b base a | 0x64 | |
Core0b_basee | Core 0b base e | 0x00 | |
RocDelay_Ch0 | Roc Delay Ch0 | 4 | |
RocDelay_Ch1 | Roc Delay Ch1 | 4 | |
RocDelay_Ch2 | Roc Delay Ch2 | 4 | |
RocDelay_Ch3 | Roc Delay Ch3 | 4 | |
Phase400 | Phase 400 | 5 | |
Phase160 | Phase 160 | 1 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 2 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 2 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 | |
message_eventid_count | Event ID mismatch | 1 | |
message_tokenchain_count | Token Chain Length | 1 |
