Test Date: 2016-02-08 11:28
Analysis date: 2016-05-26 08:56
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
47.3213125 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
47.3213125 |
|
| medianSlope |
median Slope |
47.7435 |
|
| minSlope |
min Slope |
43.537 |
|
| maxSlope |
max Slope |
51.055 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-91.076 |
|
| medianOffset |
median Offset |
-84.0655 |
|
| minOffset |
min Offset |
-231.798 |
|
| maxOffset |
max Offset |
84.356 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
5.42875 |
|
| medianchi2 |
median chi2 |
2.2865 |
|
| minchi2 |
min chi2 |
0.002 |
|
| maxchi2 |
max chi2 |
34.637 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
48.0 e- / Vcal
|
0.1 e- / Vcal
|
-122.3 e-
|
6.5 e-
|
|
1
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-137.2 e-
|
6.6 e-
|
|
2
|
51.1 e- / Vcal
|
0.2 e- / Vcal
|
-231.8 e-
|
21.1 e-
|
|
3
|
45.2 e- / Vcal
|
0.1 e- / Vcal
|
84.4 e-
|
17.2 e-
|
|
4
|
45.4 e- / Vcal
|
0.1 e- / Vcal
|
-30.9 e-
|
17.1 e-
|
|
5
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-68.3 e-
|
7.6 e-
|
|
6
|
43.5 e- / Vcal
|
0.1 e- / Vcal
|
-32.0 e-
|
8.4 e-
|
|
7
|
44.3 e- / Vcal
|
0.1 e- / Vcal
|
-8.2 e-
|
17.1 e-
|
|
8
|
47.0 e- / Vcal
|
0.1 e- / Vcal
|
-149.8 e-
|
16.2 e-
|
|
9
|
47.5 e- / Vcal
|
0.1 e- / Vcal
|
-51.5 e-
|
7.0 e-
|
|
10
|
49.0 e- / Vcal
|
0.1 e- / Vcal
|
-200.2 e-
|
5.8 e-
|
|
11
|
48.8 e- / Vcal
|
0.1 e- / Vcal
|
-149.3 e-
|
17.4 e-
|
|
12
|
47.3 e- / Vcal
|
0.1 e- / Vcal
|
-66.1 e-
|
16.6 e-
|
|
13
|
48.0 e- / Vcal
|
0.1 e- / Vcal
|
-145.9 e-
|
7.3 e-
|
|
14
|
48.2 e- / Vcal
|
0.1 e- / Vcal
|
-99.8 e-
|
8.0 e-
|
|
15
|
48.6 e- / Vcal
|
0.2 e- / Vcal
|
-48.3 e-
|
20.3 e-
|
|
Average
|
47.3 e- / Vcal
|
|
-91.1 e-
|
|
|
Median
|
91.3 e- / Vcal
|
|
-158.0 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

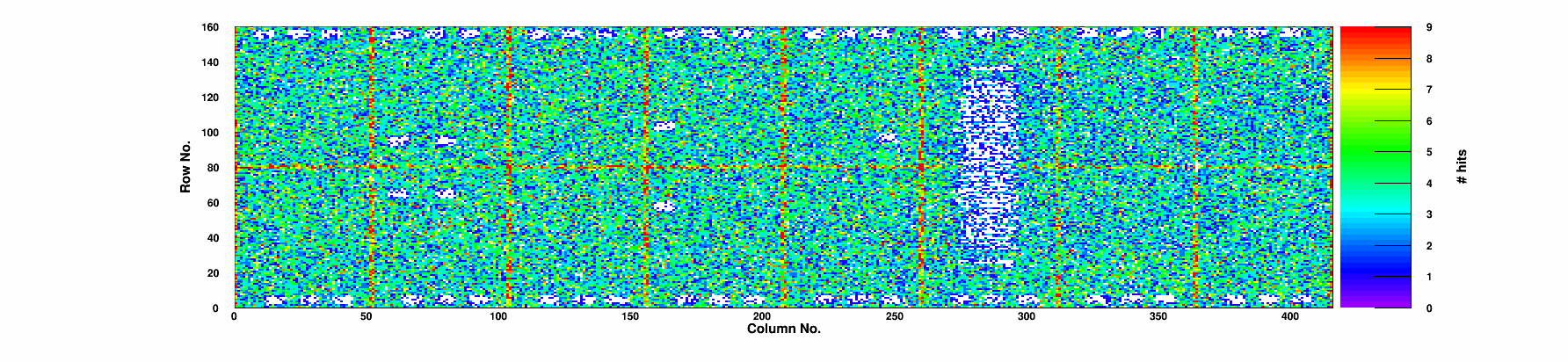

Hits distribution Zn inner/edge/corner

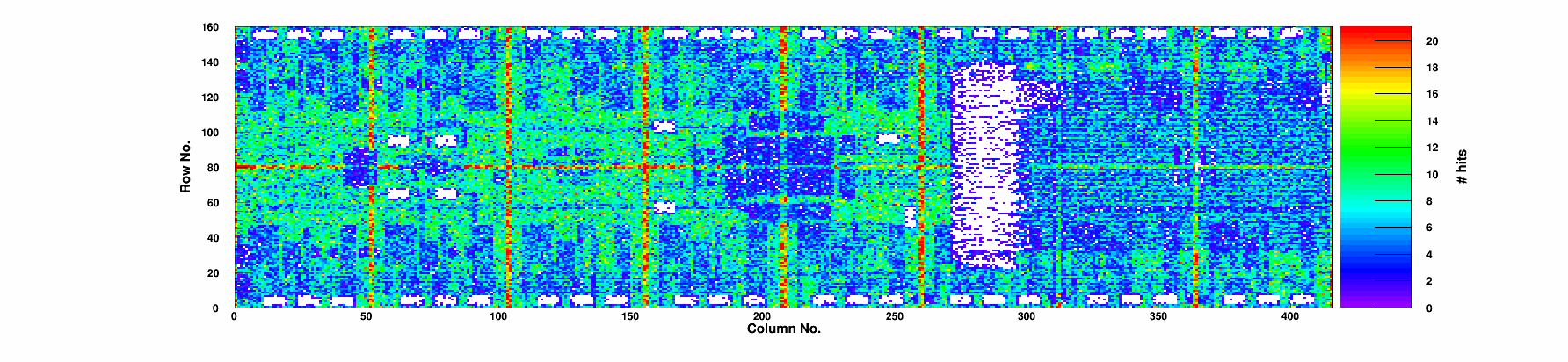

Hits distribution Mo inner/edge/corner

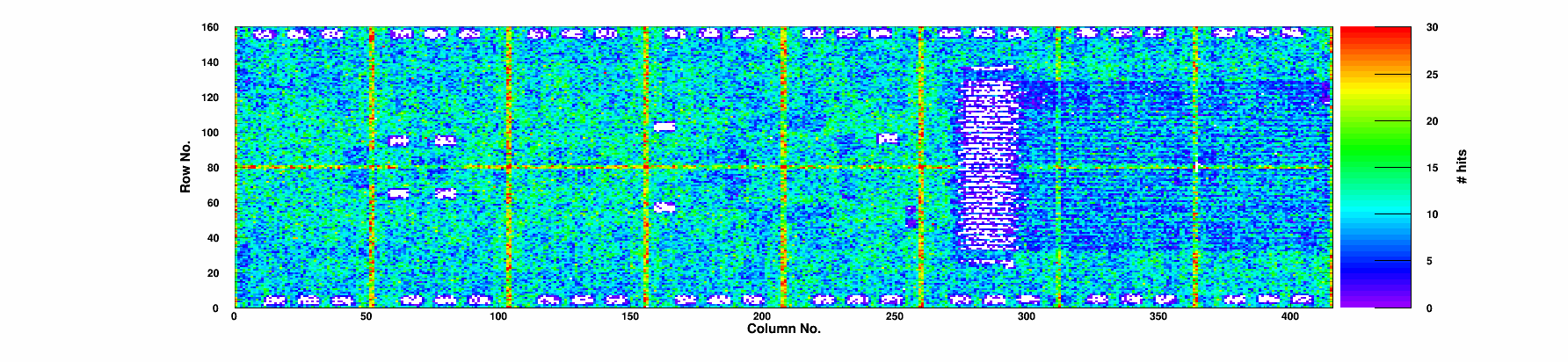

Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
