Module | Module | M2142 | |
Grade | Grade | B | |
ElectricalGrade | Electrical Grade | B | |
IVGrade | IV Grade | A | |
ManualGrade | Manual Grade | None | |
PixelDefects | Pixel Defects - A/B/C | 434 - 14/2/0 | |
DeadPixels | Dead Pixels | 2 | |
AddressProblems | Address Problems | 0 | |
ThresholdDefects | Threshold Defects | 3 | |
MaskDefects | Mask Defects | 0 | |

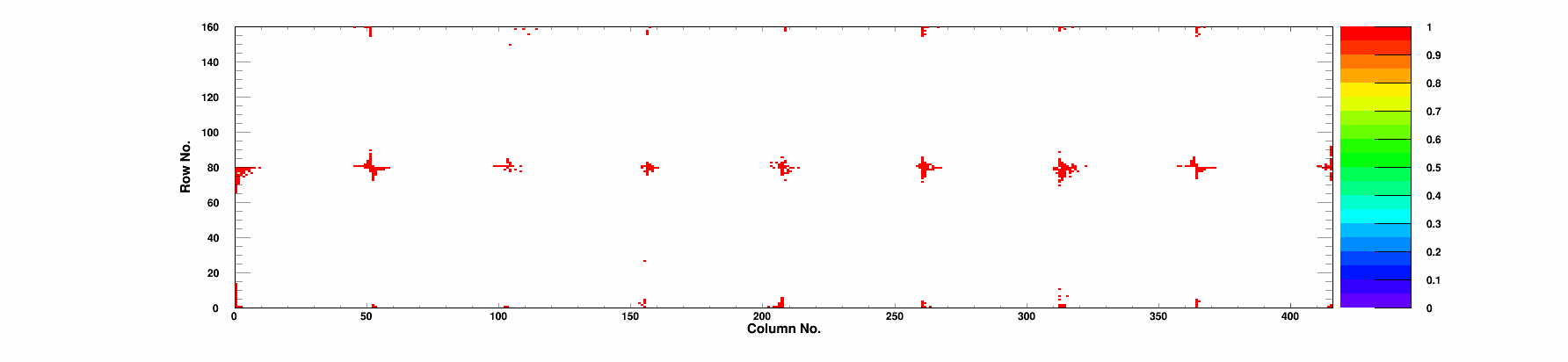

DeadBumps | Dead Bumps | 429 | |
NoisyPixels | Noise Defects | 0 | |
TrimProblems | Trim Problems | 1 | |
PHGainDefects | PH Gain Defects | 1 | |
PHPar1Defects | PH Parameter1 Defects | 0 |
TestCenter | Test Center | ETH | |
TestDate | Test Date | 2016-01-13 | |
TestTime | Test Time | 08:36 | |
TestDuration | Duration | 1:21:12 | |
TempC | Temparature | 17 | °C |
TBM1 | TBM1 | ok, 0x18 0xe4 | |
TBM2 | TBM2 | ok, 0x00 0xe4 | |
PxarVersion | pXar | prod-12 | |
DTB_FW | DTB FW | 4.5 | |
ModuleIa | Module Ia | 390.7 | mA |
Noise | Noise | 136.32 | e |
NoiseROCs | Noise grades | 16/0/0 | |

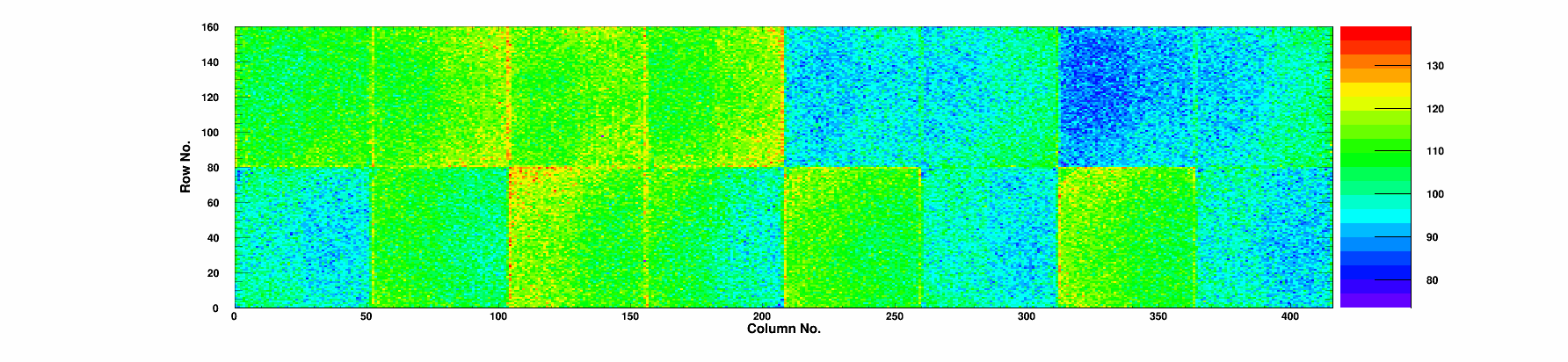

VcalThrWidth | Vcal Thr. Width | 45.44 | e |
VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
RelGainWidth | Rel. Gain Width | 0.03 | % |
RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
PedestalSpread | Pedestal Spread | 1098.97 | e |
PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
Parameter1 | Parameter1 | 0.66 | |
Parameter1ROCs | Par1 grades | 16/0/0 | |
CurrentAtVoltage150V | I(150 V) | 0.63 | μA |
CurrentVariation | I(150 V) / I(100 V) | 1.18 |
Duration | Duration | 1:21:12 | |
MinCurrent | min. Current | 0.367 | A |
MaxCurrent | max. Current | 0.477 | A |
Duration | Duration | 1:21:12 | |
MinCurrent | min. Current | 0.071 | A |
MaxCurrent | max. Current | 0.394 | A |
ModuleIa | Module Ia | 390.7 | mA |
IanaLossProblems | Iana problems | No | |
Mean | mean | 19.40 | |
Min | min | 18.50 | |
Max | max | 20.10 | |
NROCsNotProgrammable | ROCs not programmable | 0 |
Temperature | Temp. while test | 17.00 +/- 0.08 | °C |
Duration | Duration of test | 0:08:21 |
ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0 |
A
|
26
|
0
|
0
|
26
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
136.85
|
1750 |
45
|
0.029
|
1064
|
Chip 1 |
A
|
36
|
0
|
0
|
36
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
136.73
|
1750 |
43
|
0.028
|
838
|
Chip 2 |
A
|
24
|
0
|
0
|
24
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
142.23
|
1749 |
44
|
0.028
|
1246
|
Chip 3 |
A
|
10
|
0
|
0
|
10
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
139.46
|
1749 |
42
|
0.037
|
1010
|
Chip 4 |
A
|
19
|
0
|
0
|
19
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
123.18
|
1751 |
44
|
0.027
|
1436
|
Chip 5 |
A
|
13
|
1
|
0
|
12
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
121.79
|
1747 |
46
|
0.030
|
1023
|
Chip 6 |
A
|
10
|
0
|
0
|
10
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
123.62
|
1749 |
48
|
0.025
|
1296
|
Chip 7 |
A
|
28
|
0
|
0
|
28
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
136.93
|
1748 |
44
|
0.036
|
1122
|
Chip 8 |
B
|
65
|
0
|
0
|
65
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
142.68
|
1749 |
45
|
0.031
|
1122
|
Chip 9 |
A
|
28
|
0
|
0
|
28
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
138.64
|
1750 |
44
|
0.025
|
1022
|
Chip 10 |
A
|
13
|
1
|
0
|
12
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
137.91
|
1752 |
52
|
0.034
|
1171
|
Chip 11 |
A
|
34
|
0
|
0
|
31
|
0
|
0
|
0
|
3
|
0
|
0
|
0
|
151.61
|
1750 |
51
|
0.034
|
1105
|
Chip 12 |
A
|
11
|
0
|
0
|
11
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
127.54
|
1752 |
46
|
0.036
|
982
|
Chip 13 |
A
|
34
|
0
|
0
|
34
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
141.72
|
1744 |
43
|
0.034
|
1136
|
Chip 14 |
B
|
44
|
0
|
0
|
44
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
131.69
|
1750 |
45
|
0.033
|
966
|
Chip 15 |
A
|
39
|
0
|
0
|
39
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
148.60
|
1749 |
46
|
0.030
|
1046
|
ModifiedGrading | Modified Grading | True | |
GradingParameters_leakageCurrentRatioB | leakageCurrentRatioB | 20 => -111 |
nTBMs | n | 1 | |
TBMType | Type | tbm09c | |
Core0a_basea | Core 0a base a | 0xe4 | |
Core0a_basee | Core 0a base e | 0x18 | |
Core0b_basea | Core 0b base a | 0xe4 | |
Core0b_basee | Core 0b base e | 0x00 | |
RocDelay_Ch0 | Roc Delay Ch0 | 4 | |
RocDelay_Ch1 | Roc Delay Ch1 | 4 | |
RocDelay_Ch2 | Roc Delay Ch2 | 4 | |
RocDelay_Ch3 | Roc Delay Ch3 | 4 | |
Phase400 | Phase 400 | 6 | |
Phase160 | Phase 160 | 0 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 0 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 0 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 |
