Module | Module | M2138 | |
Grade | Grade | A | |
ElectricalGrade | Electrical Grade | A | |
IVGrade | IV Grade | A | |
ManualGrade | Manual Grade | None | |
PixelDefects | Pixel Defects - A/B/C | 124 - 16/0/0 | |
DeadPixels | Dead Pixels | 3 | |
AddressProblems | Address Problems | 0 | |
ThresholdDefects | Threshold Defects | 4 | |
MaskDefects | Mask Defects | 0 | |
DeadBumps | Dead Bumps | 117 | |
NoisyPixels | Noise Defects | 0 | |
TrimProblems | Trim Problems | 0 | |
PHGainDefects | PH Gain Defects | 1 | |
PHPar1Defects | PH Parameter1 Defects | 0 |
TestCenter | Test Center | ETH | |
TestDate | Test Date | 2016-01-12 | |
TestTime | Test Time | 17:15 | |
TestDuration | Duration | 1:20:53 | |
TempC | Temparature | -20 | °C |
TBM1 | TBM1 | ok, 0xf8 0xed | |
TBM2 | TBM2 | ok, 0x00 0xed | |
PxarVersion | pXar | prod-12 | |
DTB_FW | DTB FW | 4.5 | |
ModuleIa | Module Ia | 385.9 | mA |
Noise | Noise | 123.35 | e |
NoiseROCs | Noise grades | 16/0/0 | |

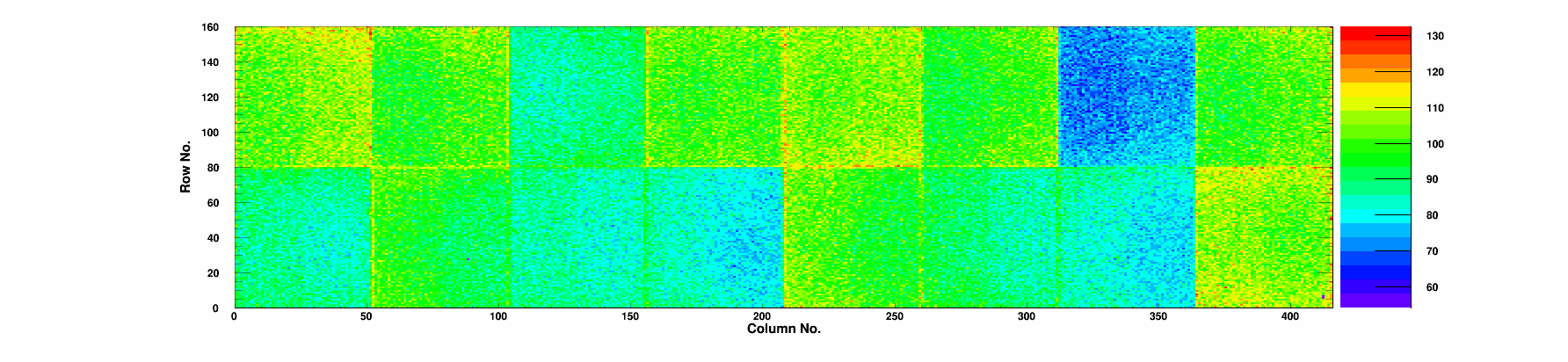

VcalThrWidth | Vcal Thr. Width | 43.81 | e |
VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
RelGainWidth | Rel. Gain Width | 0.03 | % |
RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
PedestalSpread | Pedestal Spread | 1126.38 | e |
PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
Parameter1 | Parameter1 | 0.75 | |
Parameter1ROCs | Par1 grades | 16/0/0 | |
CurrentAtVoltage150V | I_rec(150 V) @ 17°C | 89.15 | μA |
CurrentAtVoltage150V_ORIG | I_orig(150V) @ -20.0 °C | 1.98 | μA |
CurrentVariation | I(150 V) / I(100 V) | 1.58 |
CurrentAtVoltage150V | I_orig(150V) @ -20.0 °C | 1.98 | μA |
Variation | I(150 V) / I(100 V) | 1.58 | |
recalculatedCurrentAtVoltage150V | I_rec(150 V) @ 17°C | 89.15 | μA |
recalculatedCurrentVariation | I_rec(150 V) / I_rec(100 V) | 1.58 | |
CurrentRatio100V | I(+17C)/I(-20C) 100V | 0.85 | |
CurrentRatio150V | I(+17C)/I(-20C) 150V | 0.62 |
Duration | Duration | 1:20:53 | |
MinCurrent | min. Current | 0.382 | A |
MaxCurrent | max. Current | 0.518 | A |
Duration | Duration | 1:20:53 | |
MinCurrent | min. Current | 0.076 | A |
MaxCurrent | max. Current | 0.39 | A |
ModuleIa | Module Ia | 385.9 | mA |
IanaLossProblems | Iana problems | No | |
Mean | mean | 18.30 | |
Min | min | 17.70 | |
Max | max | 19.30 | |
NROCsNotProgrammable | ROCs not programmable | 0 |
Temperature | Temp. while test | -20.00 +/- 0.01 | °C |
Duration | Duration of test | 0:09:32 |
ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0 |
A
|
14
|
0
|
0
|
13
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
137.29
|
1748 |
47
|
0.027
|
1284
|
Chip 1 |
A
|
18
|
0
|
0
|
18
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
113.74
|
1750 |
41
|
0.035
|
1076
|
Chip 2 |
A
|
11
|
0
|
0
|
11
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
129.11
|
1752 |
44
|
0.029
|
1068
|
Chip 3 |
A
|
6
|
0
|
0
|
5
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
129.17
|
1749 |
44
|
0.036
|
1100
|
Chip 4 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
131.73
|
1750 |
42
|
0.036
|
1216
|
Chip 5 |
A
|
5
|
0
|
0
|
5
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
119.14
|
1750 |
42
|
0.034
|
883
|
Chip 6 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
133.08
|
1750 |
46
|
0.028
|
1118
|
Chip 7 |
A
|
4
|
0
|
0
|
4
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
128.86
|
1752 |
47
|
0.027
|
1297
|
Chip 8 |
A
|
5
|
0
|
0
|
5
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
118.91
|
1748 |
44
|
0.029
|
1094
|
Chip 9 |
A
|
17
|
1
|
0
|
15
|
0
|
0
|
0
|
1
|
1
|
0
|
0
|
122.95
|
1746 |
45
|
0.031
|
1241
|
Chip 10 |
A
|
7
|
0
|
0
|
7
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
117.50
|
1750 |
40
|
0.025
|
1002
|
Chip 11 |
A
|
3
|
0
|
0
|
3
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
102.83
|
1750 |
42
|
0.025
|
1129
|
Chip 12 |
A
|
14
|
0
|
0
|
14
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
130.69
|
1750 |
46
|
0.028
|
1159
|
Chip 13 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
119.29
|
1748 |
42
|
0.025
|
1052
|
Chip 14 |
A
|
7
|
0
|
0
|
7
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
107.96
|
1750 |
42
|
0.026
|
1162
|
Chip 15 |
A
|
10
|
2
|
0
|
8
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
131.30
|
1748 |
46
|
0.027
|
1140
|
ModifiedGrading | Modified Grading | True | |
GradingParameters_leakageCurrentRatioB | leakageCurrentRatioB | 20 => -111 |
nTBMs | n | 1 | |
TBMType | Type | tbm09c | |
Core0a_basea | Core 0a base a | 0xed | |
Core0a_basee | Core 0a base e | 0xf8 | |
Core0b_basea | Core 0b base a | 0xed | |
Core0b_basee | Core 0b base e | 0x00 | |
RocDelay_Ch0 | Roc Delay Ch0 | 5 | |
RocDelay_Ch1 | Roc Delay Ch1 | 5 | |
RocDelay_Ch2 | Roc Delay Ch2 | 5 | |
RocDelay_Ch3 | Roc Delay Ch3 | 5 | |
Phase400 | Phase 400 | 6 | |
Phase160 | Phase 160 | 7 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 0 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 0 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 |
