Test Date: 2015-12-07 10:25
Analysis date: 2016-05-26 06:44
M2122 ModuleFulltestPxar_p17_1
Chips

Overview

_
Summary 1
Module Module M2122
Grade Grade A
ElectricalGrade Electrical Grade A
IVGrade IV Grade A
ManualGrade Manual Grade None
PixelDefects Pixel Defects - A/B/C 11 - 16/0/0
DeadPixels Dead Pixels 0
AddressProblems Address Problems 0
ThresholdDefects Threshold Defects 5
MaskDefects Mask Defects 0
DeadBumps Dead Bumps 5
NoisyPixels Noise Defects 0
TrimProblems Trim Problems 0
PHGainDefects PH Gain Defects 1
PHPar1Defects PH Parameter1 Defects 0
Summary 2
TestCenter Test Center ETH
TestDate Test Date 2015-12-07
TestTime Test Time 10:25
TestDuration Duration 1:21:55
TempC Temparature 17 °C
TBM1 TBM1 ok, 0x08 0xed
TBM2 TBM2 ok, 0x00 0xed
PxarVersion pXar prod-12
DTB_FW DTB FW 4.5
ModuleIa Module Ia 385.1 mA
Summary 3
Noise Noise 137.86 e
NoiseROCs Noise grades 16/0/0
VcalThrWidth Vcal Thr. Width 49.75 e
VcalThrWidthROCs Vcal Thr. W. grades 16/0/0
RelGainWidth Rel. Gain Width 0.04 %
RelGainWidthROCs Rel. Gain W. grades 16/0/0
PedestalSpread Pedestal Spread 1157.94 e
PedestalSpreadROCs Ped. Spread grades 16/0/0
Parameter1 Parameter1 0.69
Parameter1ROCs Par1 grades 16/0/0
CurrentAtVoltage150V I(150 V) 0.56 μA
CurrentVariation I(150 V) / I(100 V) 1.09
IVCurve
CurrentAtVoltage150V I(150 V) 0.56 μA
Variation I(150 V) / I(100 V) 1.09
Noise

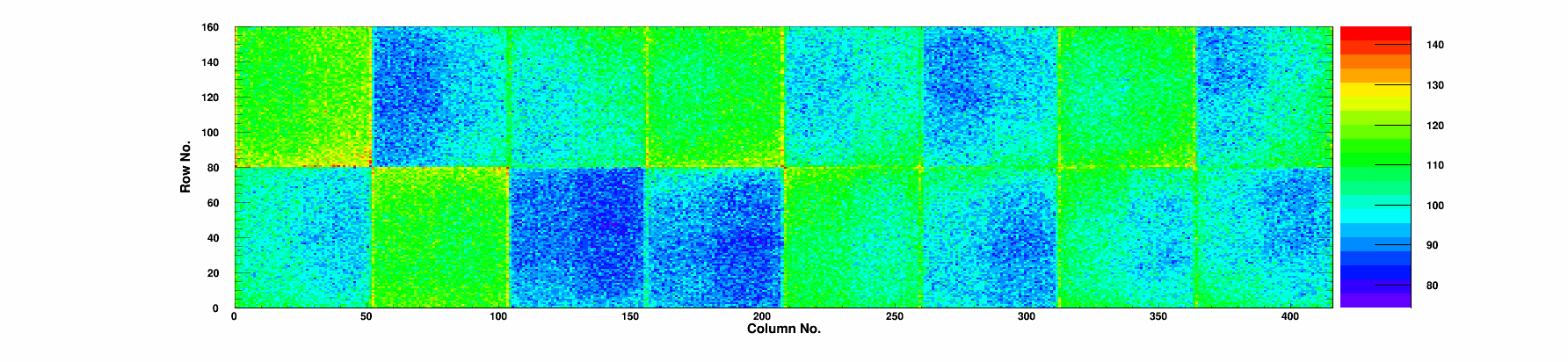

Vcal Threshold Width
RelativeGainWidth
PedestalSpread
Parameter1
CalDel
mu μ 142.06
caldelspread CalDel spread 50
PHScale
mu μ 70.56
phscalespread PHScale spread 16
PHOffset
mu μ 180.00
phoffsetspread PHOffset spread 40
VthrComp
mu μ 96.88
vthrcompspread VthrComp spread 21
Vtrim
mu μ 106.38
vtrimspread Vtrim spread 42
Vana
mu μ 84.56
vanaspread Vana spread 19
Digital Current
Duration Duration 1:21:55
MinCurrent min. Current 0.375 A
MaxCurrent max. Current 0.484 A
Analog Current
Duration Duration 1:21:55
MinCurrent min. Current 0.071 A
MaxCurrent max. Current 0.389 A
ModuleIa Module Ia 385.1 mA
IanaLoss
IanaLossProblems Iana problems No
Mean mean 19.20
Min min 18.50
Max max 20.10
NROCsNotProgrammable ROCs not programmable 0
Temperature
Temperature Temp. while test 17.00 +/- 0.05 °C
Duration Duration of test 0:09:30
Summary ROCs
ROC Grade Total Dead Mask Bumps Trim(Bits) Address Noise Thresh Gain Ped Par1 Mean noise Thr [e-] Thr width Rel gain width Ped spread
Chip 0
A
2
0
0
1
0
0
0
1
0
0
0
140.34
1749
48
0.032
1190
Chip 1
A
1
0
0
1
0
0
0
0
0
0
0
135.01
1750
48
0.039
1156
Chip 2
A
0
0
0
0
0
0
0
0
0
0
0
117.53
1748
45
0.034
1348
Chip 3
A
0
0
0
0
0
0
0
0
0
0
0
144.74
1748
48
0.034
1227
Chip 4
A
0
0
0
0
0
0
0
0
0
0
0
134.74
1744
70
0.040
1311
Chip 5
A
0
0
0
0
0
0
0
0
0
0
0
153.00
1747
53
0.034
1282
Chip 6
A
0
0
0
0
0
0
0
0
0
0
0
135.41
1749
48
0.028
1048
Chip 7
A
4
0
0
3
0
0
0
1
0
0
0
133.13
1750
50
0.040
1082
Chip 8
A
0
0
0
0
0
0
0
0
0
0
0
149.97
1748
49
0.032
1092
Chip 9
A
1
0
0
0
0
0
0
1
0
0
0
133.91
1748
49
0.042
1176
Chip 10
A
0
0
0
0
0
0
0
0
0
0
0
134.21
1750
46
0.038
970
Chip 11
A
1
0
0
0
0
0
0
1
0
0
0
138.66
1750
49
0.034
1092
Chip 12
A
1
0
0
0
0
0
0
1
0
0
0
140.69
1749
50
0.040
1178
Chip 13
A
1
0
0
0
0
0
0
0
1
0
0
139.30
1749
47
0.042
1170
Chip 14
A
0
0
0
0
0
0
0
0
0
0
0
136.67
1749
48
0.032
1098
Chip 15
A
0
0
0
0
0
0
0
0
0
0
0
138.44
1748
49
0.039
1108
Readback par0vd
Readback par1vd
Readback par0va
Readback par1va
Readback par0rbia
Readback par1rbia
Readback par0tbia
Readback par1tbia
Readback par2tbia
Readback par0ia
Readback par1ia
Readback par2ia
GradingParameters
ModifiedGrading Modified Grading True
GradingParameters_leakageCurrentRatioB leakageCurrentRatioB 20 => -111
TBM
nTBMs n 1
TBMType Type tbm09c
Core0a_basea Core 0a base a 0xed
Core0a_basee Core 0a base e 0x08
Core0b_basea Core 0b base a 0xed
Core0b_basee Core 0b base e 0x00
RocDelay_Ch0 Roc Delay Ch0 5
RocDelay_Ch1 Roc Delay Ch1 5
RocDelay_Ch2 Roc Delay Ch2 5
RocDelay_Ch3 Roc Delay Ch3 5
Phase400 Phase 400 2
Phase160 Phase 160 0
Logfile

Overview

Errors
nCriticals # Criticals 0
nErrors # Errors 0
nWarnings # Warnings 0
channel_0_count Channel 0 0
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 0
