Test Date: 2016-01-22 13:53
Analysis date: 2016-05-26 06:18
Analysis date: 2016-05-26 06:18
M2116 XRayHRQualification
Summary
| Module | Module | M2116 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.27 | % |
| Noise | Mean Noise | 161 | e- |

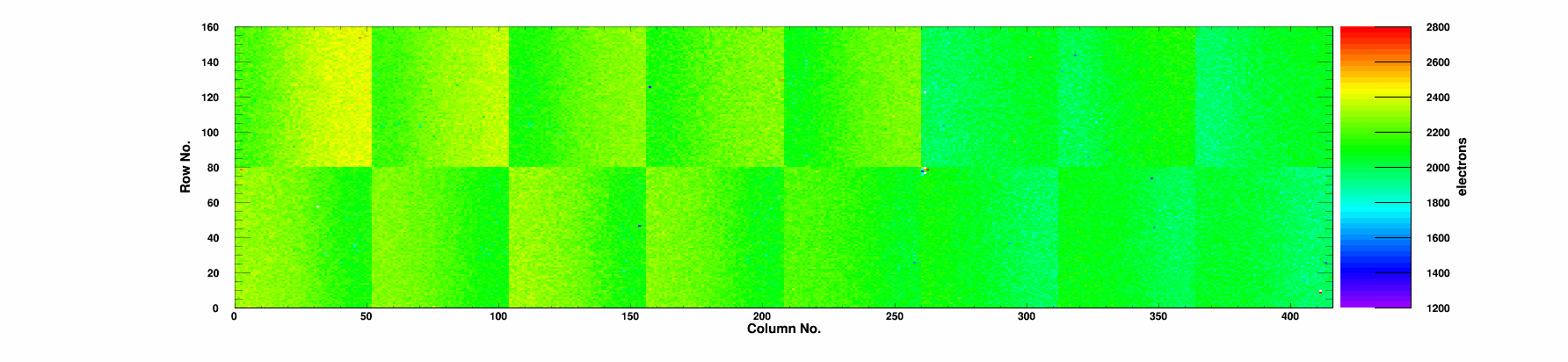

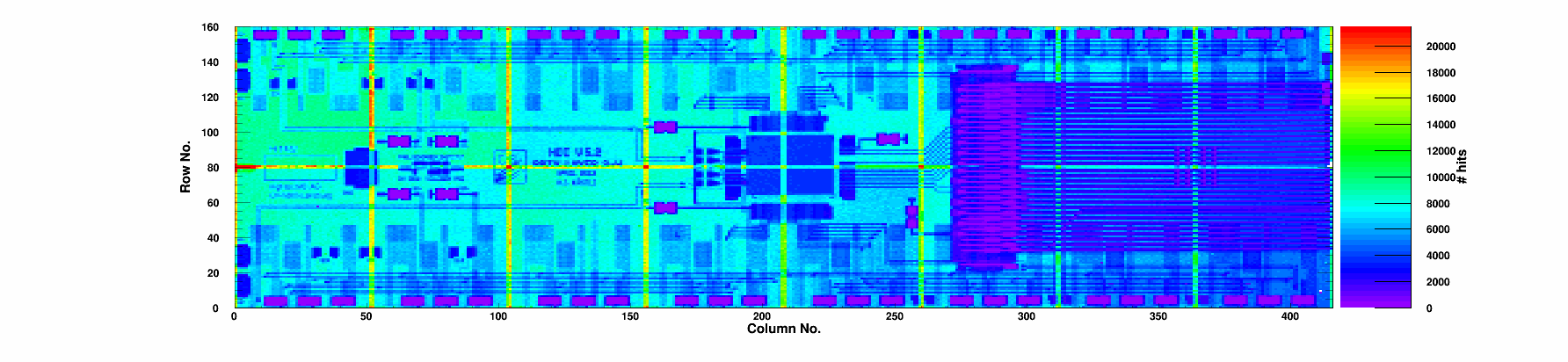

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.86 | 99.03 | 0.53 | 32.4 | 95.8 | 4 | 0/0 | 0 | 2018 | 164 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.89 | 99.37 | 0.49 | 35.2 | 104.6 | 0 | 0/0 | 0 | 2060 | 168 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.11 | 0.67 | 31.3 | 94.1 | 0 | 0/0 | 0 | 2018 | 166 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.31 | 0.66 | 54.8 | 156.7 | 0 | 0/0 | 0 | 2187 | 157 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.32 | 0.79 | 59.0 | 168.2 | 0 | 0/0 | 0 | 2210 | 170 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.37 | 1.21 | 60.6 | 173.2 | 0 | 0/0 | 0 | 2209 | 149 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.35 | 0.56 | 66.5 | 186.2 | 0 | 0/0 | 0 | 2271 | 154 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.91 | 99.36 | 0.63 | 73.9 | 208.9 | 0 | 0/0 | 0 | 2312 | 175 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.89 | 99.35 | 0.59 | 62.8 | 179.5 | 0 | 0/0 | 0 | 2186 | 156 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.37 | 0.7 | 56.8 | 163.2 | 0 | 0/0 | 0 | 2196 | 153 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.38 | 0.68 | 66.2 | 187.1 | 0 | 0/0 | 0 | 2221 | 164 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.35 | 0.54 | 55.3 | 158.7 | 0 | 0/0 | 0 | 2191 | 158 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.37 | 0.46 | 47.7 | 138.5 | 0 | 0/0 | 0 | 2141 | 157 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.84 | 99.14 | 6.07 | 31.1 | 93.3 | 0 | 0/0 | 0 | 2037 | 166 | 2 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.09 | 0.87 | 30.7 | 91.6 | 0 | 0/0 | 0 | 2040 | 155 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.82 | 98.99 | 1.37 | 28.6 | 85.1 | 0 | 0/0 | 0 | 2011 | 156 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-22 | |
| TestTime | Test Time | 13:53 | |
| TestDuration | Duration | 0:54:42 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
