Test Date: 2015-10-20 15:25
Analysis date: 2016-05-26 05:55
Analysis date: 2016-05-26 05:55
M2113 XRayHRQualification
Summary
| Module | Module | M2113 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

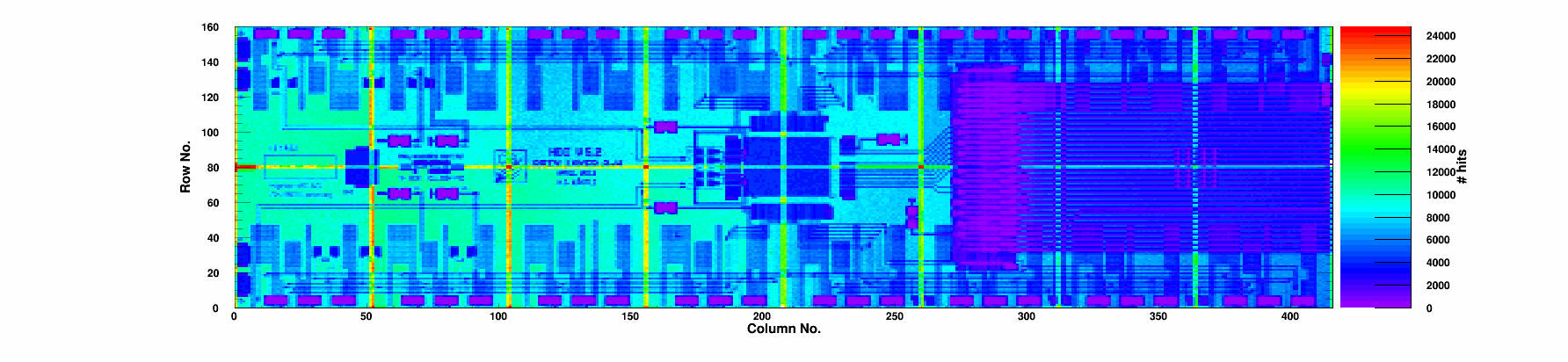

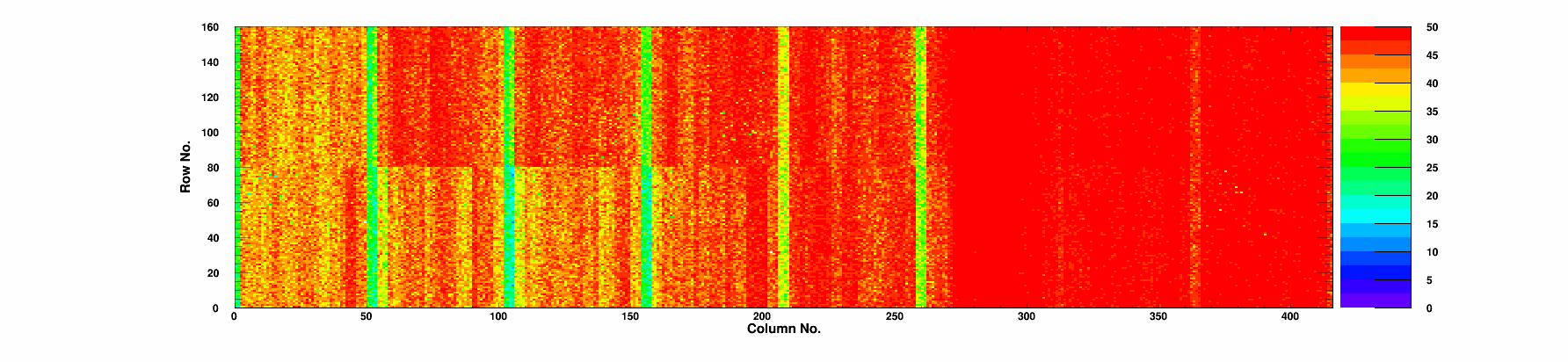

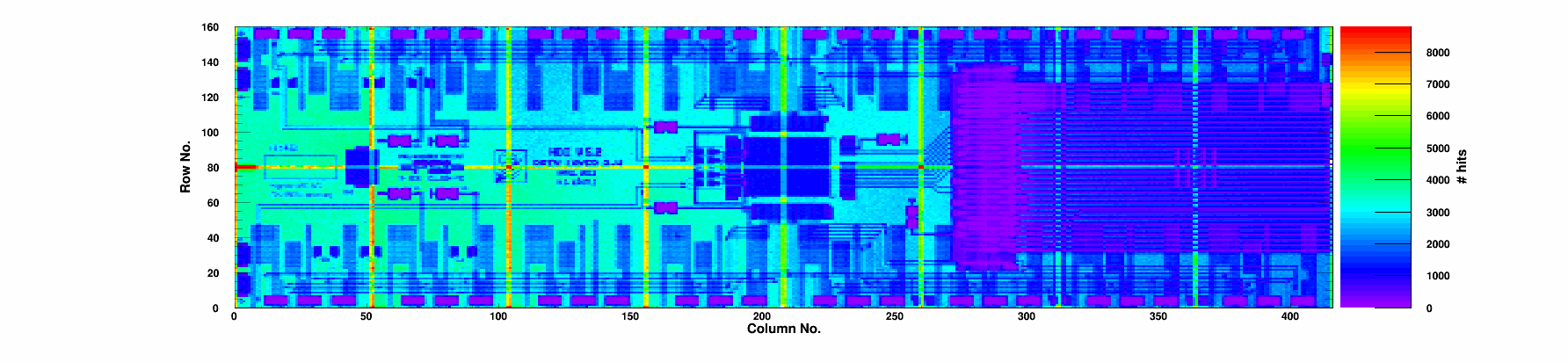

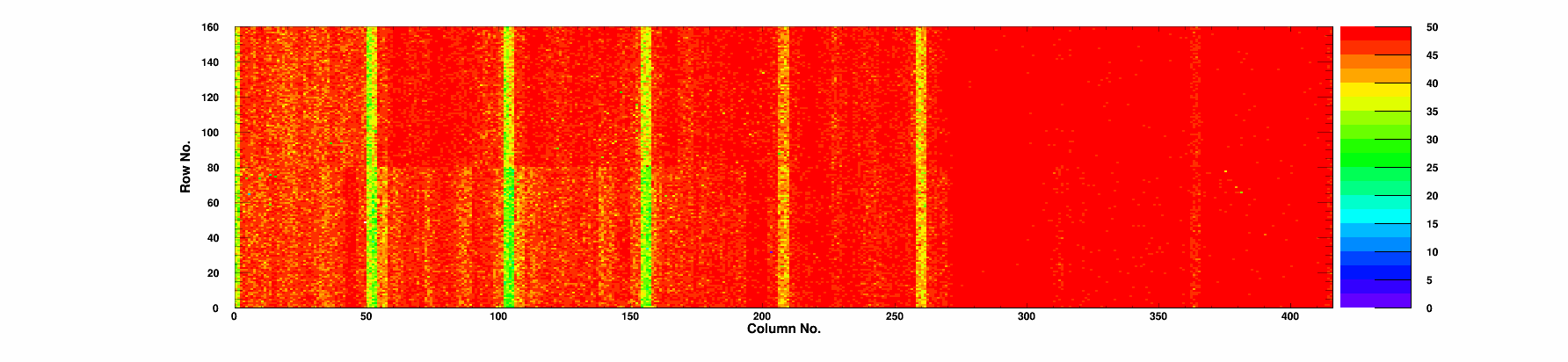

| Efficiency | Efficiency 50/120 | 99.86/99.29 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs

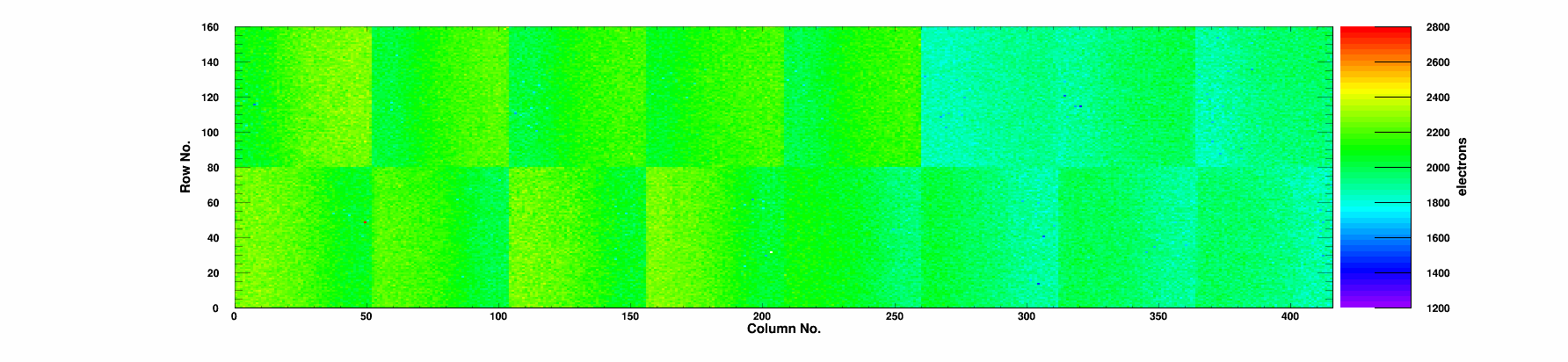

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.86 | 99.04 | 0.59 | 28.7 | 85.9 | 3 | 0/0 | 0 | 1922 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.31 | 0.42 | 30.8 | 92.9 | 0 | 0/0 | 0 | 1948 | 161 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.34 | 0.29 | 28.0 | 84.5 | 0 | 0/0 | 0 | 1884 | 156 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.34 | 0.69 | 57.2 | 164.7 | 0 | 0/0 | 0 | 2098 | 162 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.33 | 0.52 | 57.9 | 165.1 | 0 | 0/0 | 0 | 2132 | 166 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.37 | 0.57 | 63.6 | 178.6 | 0 | 0/0 | 0 | 2105 | 158 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.42 | 0.95 | 63.2 | 178.7 | 0 | 0/0 | 0 | 2125 | 160 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.37 | 0.74 | 75.4 | 214.6 | 0 | 0/0 | 0 | 2186 | 169 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.90 | 99.33 | 1.08 | 73.3 | 207.8 | 0 | 0/0 | 0 | 2175 | 161 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.47 | 73.3 | 210.2 | 0 | 0/0 | 0 | 2118 | 169 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.36 | 0.54 | 75.8 | 215.5 | 0 | 0/0 | 0 | 2161 | 176 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.88 | 99.34 | 0.53 | 63.1 | 183.0 | 1 | 0/0 | 0 | 2164 | 168 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.26 | 0.43 | 53.2 | 154.4 | 0 | 0/0 | 0 | 2034 | 168 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.27 | 0.72 | 31.6 | 95.7 | 0 | 0/0 | 0 | 1950 | 168 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 99.01 | 0.75 | 30.8 | 93.2 | 0 | 0/0 | 0 | 1950 | 163 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 99.23 | 1.55 | 30.9 | 92.5 | 0 | 0/0 | 0 | 1925 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-10-20 | |
| TestTime | Test Time | 15:25 | |
| TestDuration | Duration | 1:30:24 | |
| pXar | pXar version | v2.6.0+21~ga0339e2 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 41 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 1 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 2 | |
| message_notokenpass_count | has NoTokenPass | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
