Test Date: 2015-09-10 17:49
Analysis date: 2016-05-26 05:49
Analysis date: 2016-05-26 05:49
M2111 XRayHRQualification
Summary
| Module | Module | M2111 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 8 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

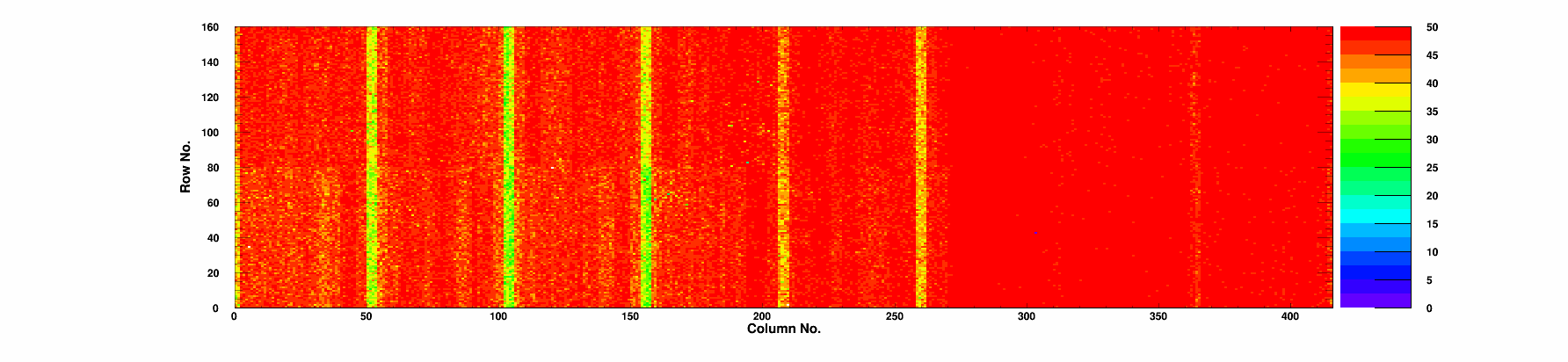

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 161 | e- |
Summary ROCs

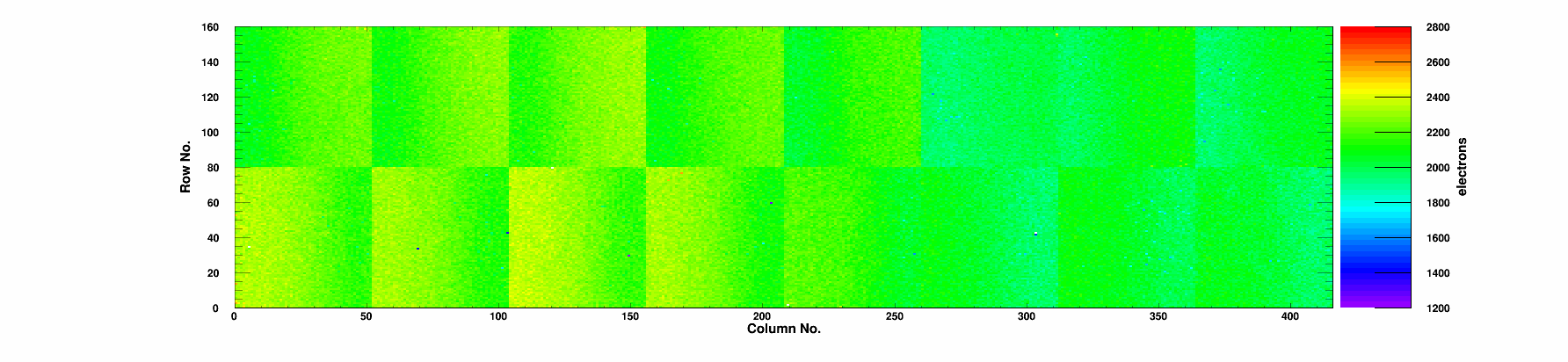

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.86 | 99.31 | 0.72 | 92.6 | 1 | 32.0 | 0/0 | 0 | 2019 | 165 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.25 | 0.64 | 106.4 | 0 | 36.4 | 0/0 | 0 | 2047 | 171 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.25 | 0.55 | 86.9 | 0 | 29.2 | 0/0 | 0 | 1984 | 155 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.89 | 99.33 | 0.5 | 149.0 | 0 | 52.6 | 0/0 | 0 | 2127 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.30 | 1.52 | 159.1 | 0 | 56.1 | 0/0 | 0 | 2171 | 160 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.38 | 0.61 | 185.4 | 1 | 66.4 | 0/0 | 0 | 2231 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.36 | 0.76 | 186.5 | 0 | 66.0 | 0/0 | 0 | 2201 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.38 | 0.6 | 177.8 | 0 | 62.4 | 0/0 | 0 | 2175 | 154 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.85 | 99.37 | 0.49 | 201.0 | 0 | 71.0 | 0/0 | 0 | 2219 | 158 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.90 | 99.33 | 0.45 | 192.2 | 0 | 68.1 | 0/0 | 0 | 2233 | 159 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.89 | 99.37 | 1.06 | 203.1 | 0 | 72.9 | 0/0 | 0 | 2232 | 154 | 1 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.30 | 0.86 | 181.3 | 0 | 63.3 | 0/0 | 0 | 2228 | 164 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.89 | 99.35 | 0.69 | 159.1 | 2 | 55.6 | 0/0 | 0 | 2105 | 166 | 1 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.31 | 1.11 | 92.8 | 0 | 31.1 | 0/0 | 0 | 1982 | 160 | 1 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.39 | 0.81 | 92.3 | 0 | 31.2 | 0/0 | 0 | 2042 | 160 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 98.99 | 1.2 | 99.7 | 0 | 34.3 | 0/0 | 0 | 2016 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-10 | |
| TestTime | Test Time | 17:49 | |
| TestDuration | Duration | 1:27:29 | |
| pXar | pXar version | prod-10+24~g09f6d2c | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 40 | |
| nWarnings | # Warnings | 6 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 4 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 0 | |
| message_readback_count | Readback start marker | 6 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
