Test Date: 2015-09-10 11:57
Analysis date: 2016-05-26 04:42
Analysis date: 2016-05-26 04:42
M2105 XRayHRQualification
Summary
| Module | Module | M2105 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 50 | |
| BumpBondingDefects | Bump Bonding Defects | 49 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

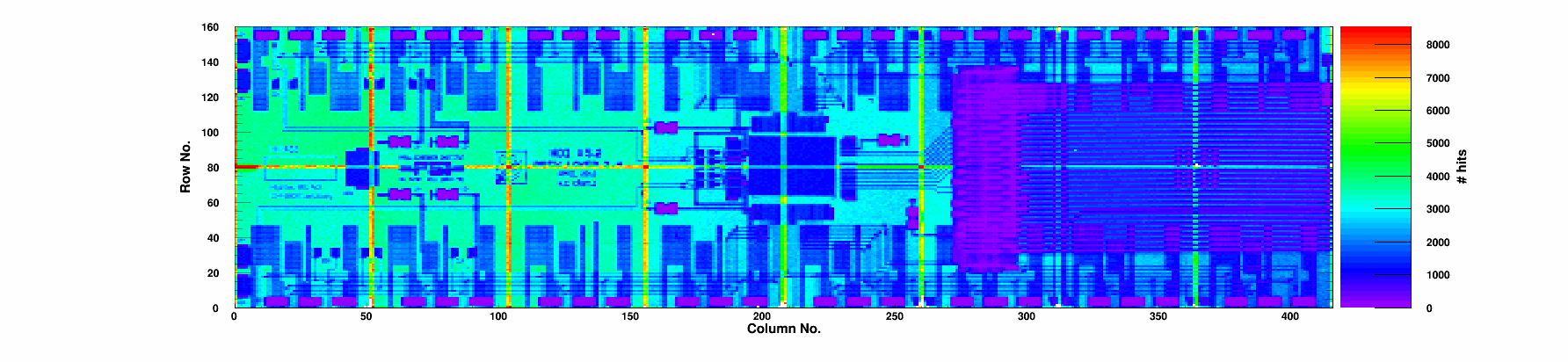

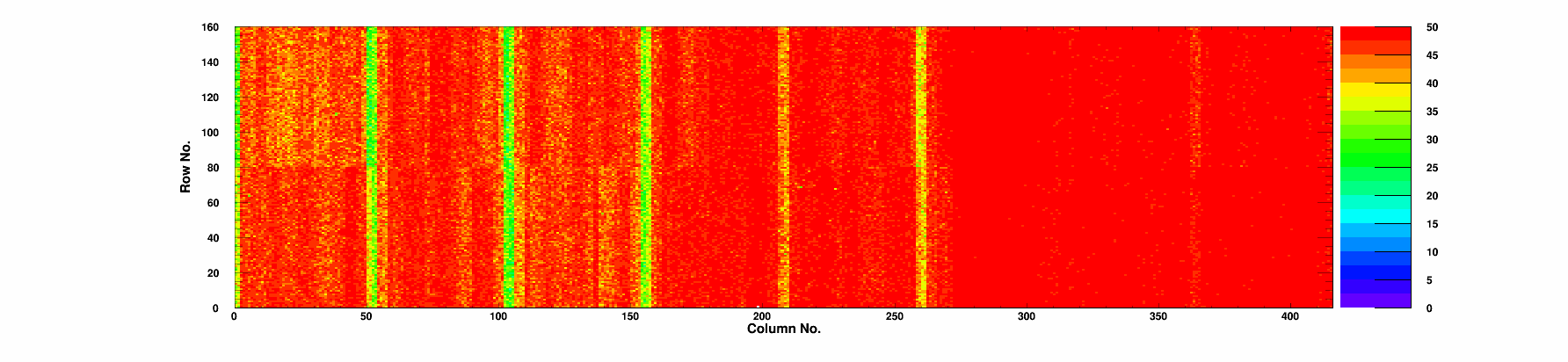

| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs

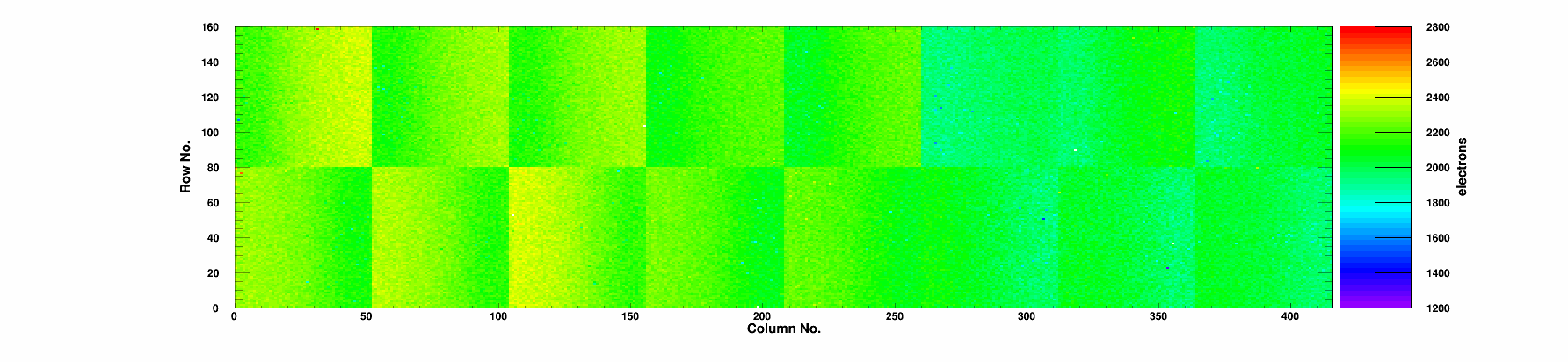

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
8 | 0 | 99.86 | 98.99 | 0.97 | 95.6 | 8 | 32.6 | 0/0 | 0 | 2006 | 163 | 0 |
|
Chip 1
|
A
|
4 | 0 | 99.89 | 99.32 | 0.83 | 106.0 | 4 | 35.9 | 0/0 | 0 | 2044 | 175 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.30 | 0.39 | 89.5 | 0 | 29.7 | 0/0 | 0 | 1967 | 161 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.88 | 99.28 | 0.6 | 158.3 | 1 | 55.4 | 0/0 | 0 | 2149 | 158 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.30 | 0.74 | 163.3 | 0 | 57.4 | 0/0 | 0 | 2161 | 154 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.89 | 99.34 | 0.57 | 203.1 | 1 | 72.1 | 0/0 | 0 | 2230 | 152 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.33 | 0.51 | 194.8 | 0 | 68.3 | 0/0 | 0 | 2224 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.29 | 0.89 | 225.6 | 0 | 78.8 | 0/0 | 0 | 2285 | 159 | 0 |
|
Chip 8
|
A
|
9 | 0 | 99.88 | 99.36 | 0.75 | 193.2 | 9 | 68.4 | 0/0 | 0 | 2224 | 145 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.36 | 0.63 | 196.6 | 0 | 69.0 | 0/0 | 0 | 2248 | 152 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.86 | 99.33 | 0.62 | 215.1 | 1 | 76.1 | 0/0 | 0 | 2280 | 158 | 0 |
|
Chip 11
|
A
|
5 | 0 | 99.87 | 99.31 | 0.47 | 157.2 | 4 | 55.1 | 0/0 | 0 | 2136 | 155 | 1 |
|
Chip 12
|
A
|
6 | 0 | 99.88 | 99.31 | 0.83 | 152.0 | 6 | 52.8 | 0/0 | 0 | 2159 | 162 | 0 |
|
Chip 13
|
A
|
9 | 0 | 99.83 | 99.27 | 0.58 | 98.1 | 9 | 32.8 | 0/0 | 0 | 2026 | 170 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.85 | 99.30 | 0.78 | 98.3 | 3 | 33.1 | 0/0 | 0 | 2011 | 163 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.87 | 99.35 | 0.66 | 90.5 | 3 | 30.7 | 0/0 | 0 | 2009 | 156 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-10 | |
| TestTime | Test Time | 11:57 | |
| TestDuration | Duration | 0:19:26 | |
| pXar | pXar version | prod-10+24~g09f6d2c | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
