Test Date: 2015-08-31 11:49
Analysis date: 2016-05-26 03:27
Analysis date: 2016-05-26 03:27
M2090 XRayHRQualification
Summary
| Module | Module | M2090 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 6 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

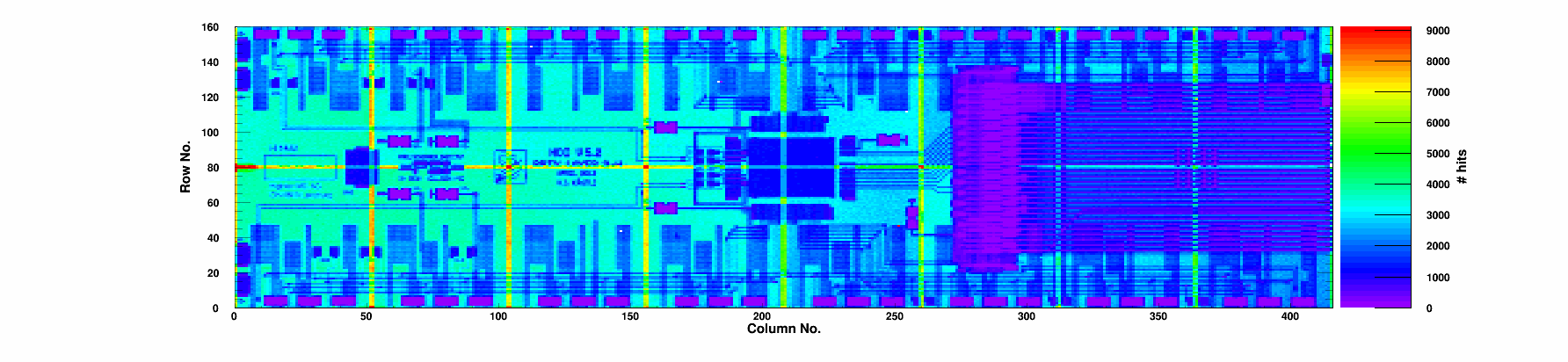

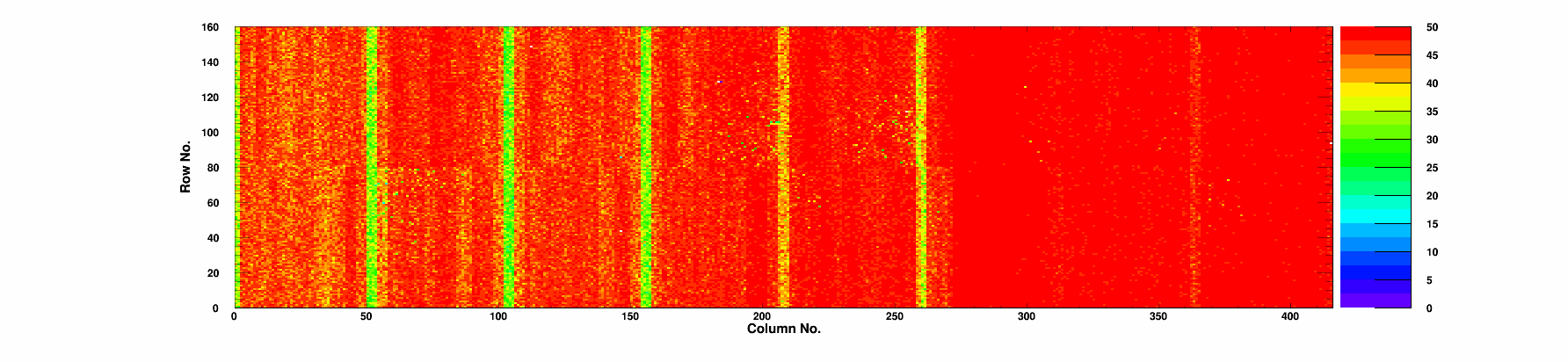

| Efficiency | Efficiency 50/120 | 99.85/99.26 | % |

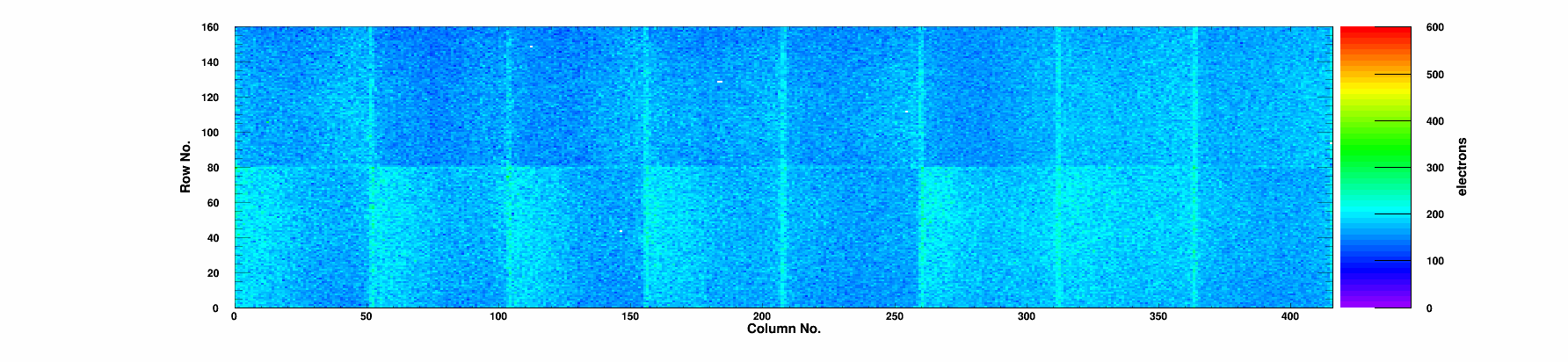

| Noise | Mean Noise | 171 | e- |
Summary ROCs

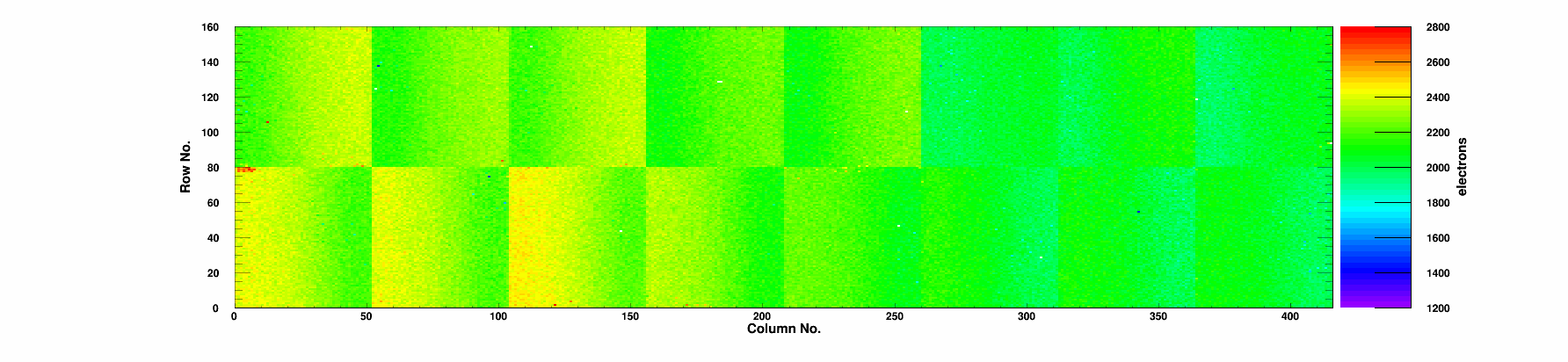

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.84 | 99.24 | 0.82 | 100.4 | 2 | 35.0 | 0/0 | 0 | 1989 | 172 | 1 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.27 | 0.81 | 112.4 | 0 | 38.5 | 0/0 | 0 | 2070 | 176 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.21 | 1.4 | 93.8 | 0 | 31.7 | 0/0 | 0 | 2026 | 162 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.87 | 99.27 | 1.1 | 164.4 | 0 | 58.0 | 0/0 | 0 | 2152 | 163 | 1 |
|
Chip 4
|
A
|
2 | 0 | 99.83 | 99.24 | 1.42 | 178.6 | 0 | 62.7 | 0/0 | 0 | 2112 | 164 | 2 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.31 | 0.94 | 207.4 | 0 | 74.0 | 0/0 | 0 | 2239 | 159 | 1 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.27 | 0.78 | 194.1 | 0 | 68.3 | 0/0 | 0 | 2230 | 155 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.29 | 0.52 | 215.7 | 1 | 75.0 | 0/0 | 0 | 2286 | 166 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.23 | 0.59 | 218.0 | 0 | 75.8 | 0/0 | 0 | 2310 | 179 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.31 | 0.71 | 210.8 | 0 | 73.6 | 0/0 | 0 | 2304 | 179 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.36 | 0.56 | 214.2 | 0 | 76.2 | 0/0 | 0 | 2299 | 174 | 1 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.35 | 0.48 | 183.3 | 0 | 64.0 | 0/0 | 0 | 2238 | 179 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.29 | 1.8 | 156.8 | 0 | 54.8 | 0/0 | 0 | 2165 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.80 | 99.22 | 0.67 | 104.2 | 0 | 35.0 | 0/0 | 0 | 2067 | 186 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 99.16 | 1.0 | 110.8 | 0 | 37.8 | 0/0 | 0 | 2051 | 188 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.21 | 1.9 | 100.0 | 0 | 34.6 | 0/0 | 0 | 2042 | 168 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-31 | |
| TestTime | Test Time | 11:49 | |
| TestDuration | Duration | 1:31:25 | |
| pXar | pXar version | v2.5+57~g44d0777 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 2 | |
| nWarnings | # Warnings | 1 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 1 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
