Test Date: 2015-09-16 17:00
Analysis date: 2016-05-26 03:21
Analysis date: 2016-05-26 03:21
M2089 XRayHRQualification
Summary
| Module | Module | M2089 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 41 | |
| BumpBondingDefects | Bump Bonding Defects | 39 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.24 | % |
| Noise | Mean Noise | 166 | e- |

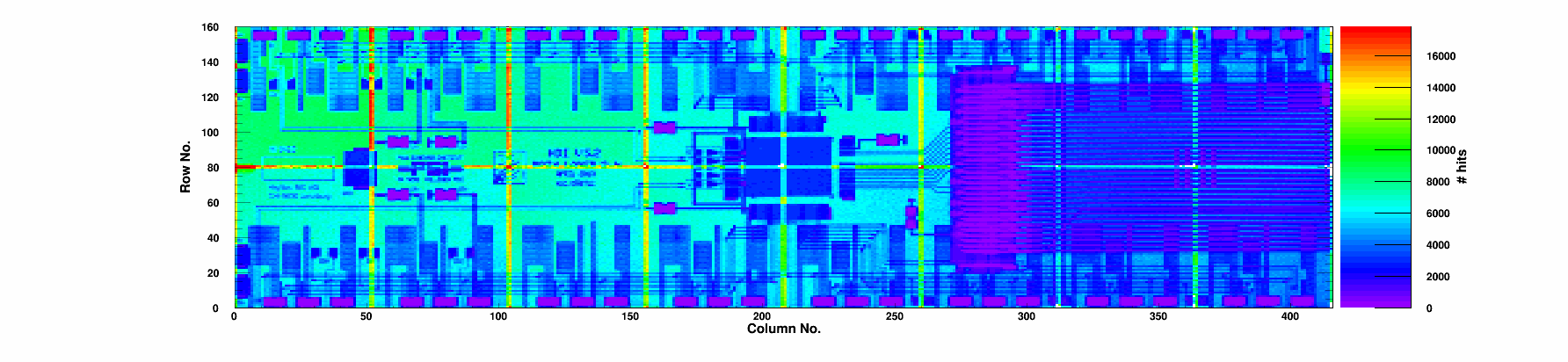

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
6 | 0 | 99.87 | 99.29 | 0.65 | 71.9 | 6 | 24.3 | 0/0 | 0 | 1915 | 154 | 0 |
|
Chip 1
|
A
|
8 | 0 | 99.83 | 99.14 | 0.64 | 79.4 | 8 | 26.6 | 0/0 | 0 | 1941 | 172 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.85 | 99.21 | 0.41 | 72.9 | 2 | 24.1 | 0/0 | 0 | 1891 | 172 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.87 | 99.28 | 0.54 | 129.2 | 1 | 44.5 | 0/0 | 0 | 2032 | 178 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.88 | 99.29 | 0.78 | 125.3 | 3 | 43.2 | 0/0 | 0 | 2069 | 168 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.89 | 99.36 | 0.36 | 162.4 | 1 | 56.9 | 0/0 | 0 | 2163 | 171 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.89 | 99.37 | 0.44 | 155.4 | 1 | 53.9 | 0/0 | 0 | 2118 | 176 | 1 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.36 | 0.35 | 177.3 | 1 | 60.9 | 0/0 | 0 | 2145 | 181 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.84 | 99.17 | 1.09 | 138.2 | 0 | 48.1 | 0/0 | 0 | 2096 | 157 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.35 | 0.6 | 129.7 | 0 | 44.8 | 0/0 | 0 | 2075 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.23 | 0.71 | 146.6 | 0 | 51.3 | 0/0 | 0 | 2120 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.30 | 0.7 | 123.3 | 0 | 42.5 | 0/0 | 0 | 2088 | 168 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.34 | 0.96 | 114.1 | 0 | 39.3 | 0/0 | 0 | 2046 | 164 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.84 | 99.00 | 0.39 | 62.4 | 2 | 20.6 | 0/0 | 0 | 1950 | 151 | 0 |
|
Chip 14
|
A
|
4 | 0 | 99.86 | 99.23 | 0.45 | 68.6 | 4 | 22.9 | 0/0 | 0 | 1940 | 156 | 0 |
|
Chip 15
|
A
|
10 | 0 | 99.83 | 98.95 | 0.65 | 70.6 | 10 | 23.9 | 0/0 | 0 | 1892 | 164 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-16 | |
| TestTime | Test Time | 17:00 | |
| TestDuration | Duration | 1:13:13 | |
| pXar | pXar version | prod-10+28~ga8f1456 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
