Test Date: 2015-08-24 08:08
Analysis date: 2016-05-26 02:05
Analysis date: 2016-05-26 02:05
M2077 XRayHRQualification
Summary
| Module | Module | M2077 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 40 | |
| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

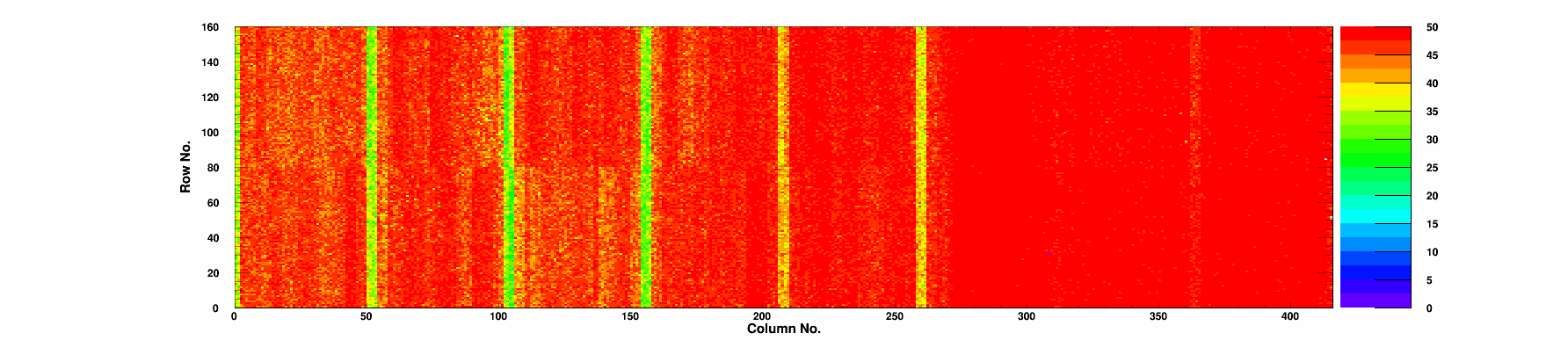

| Efficiency | Efficiency 50/120 | 99.86/99.33 | % |

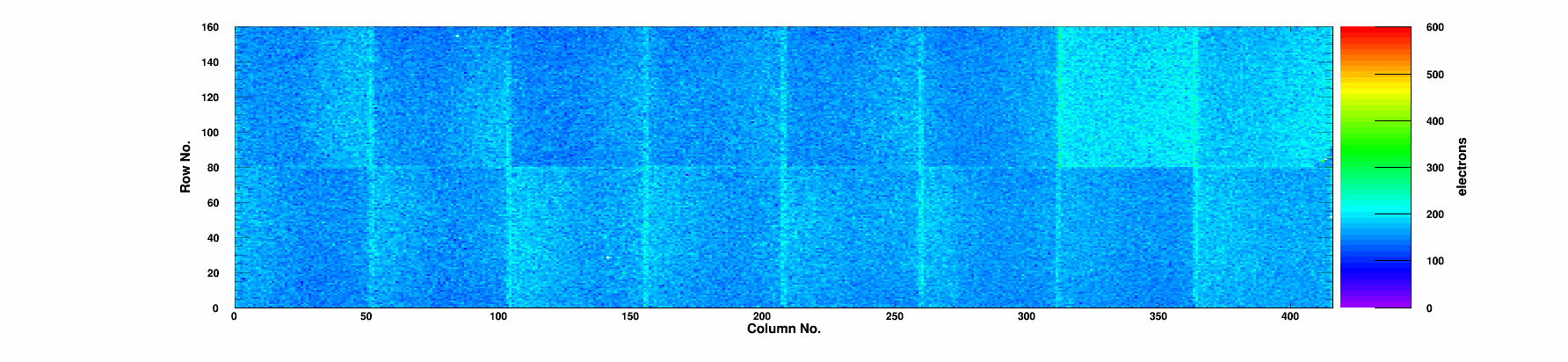

| Noise | Mean Noise | 164 | e- |
Summary ROCs

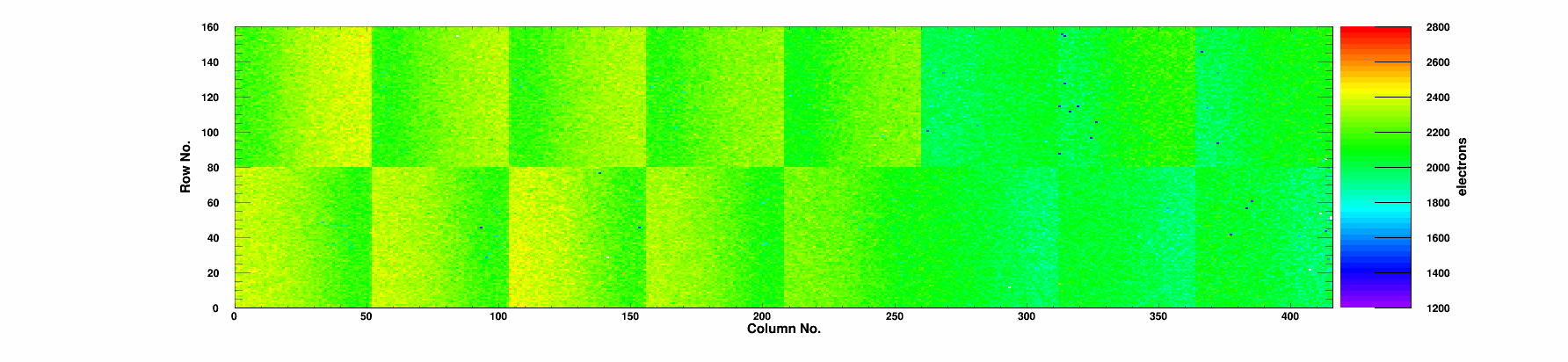

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
32 | 0 | 99.87 | 99.33 | 0.6 | 105.3 | 31 | 36.2 | 0/0 | 0 | 2013 | 183 | 1 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.33 | 0.56 | 113.3 | 0 | 38.6 | 0/0 | 0 | 2086 | 195 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.01 | 0.82 | 91.0 | 0 | 30.6 | 0/0 | 0 | 2022 | 157 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.38 | 0.48 | 155.8 | 0 | 55.3 | 0/0 | 0 | 2191 | 158 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.36 | 0.38 | 185.2 | 0 | 65.0 | 0/0 | 0 | 2226 | 158 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.37 | 0.79 | 194.4 | 0 | 70.3 | 0/0 | 0 | 2253 | 152 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.87 | 99.34 | 0.75 | 199.5 | 1 | 70.8 | 0/0 | 0 | 2210 | 157 | 1 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.41 | 0.63 | 213.7 | 0 | 75.8 | 0/0 | 0 | 2296 | 161 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.40 | 0.4 | 203.8 | 0 | 72.6 | 0/0 | 0 | 2271 | 157 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.39 | 1.14 | 195.9 | 0 | 69.7 | 0/0 | 0 | 2266 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.37 | 0.47 | 221.4 | 0 | 79.0 | 0/0 | 0 | 2289 | 169 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.89 | 99.34 | 0.49 | 178.6 | 1 | 63.1 | 0/0 | 0 | 2235 | 163 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.36 | 0.44 | 167.6 | 0 | 58.8 | 0/0 | 0 | 2187 | 164 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.31 | 0.4 | 97.9 | 0 | 33.0 | 0/0 | 0 | 2031 | 162 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.86 | 99.23 | 1.1 | 96.7 | 2 | 32.7 | 0/0 | 0 | 2013 | 159 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.86 | 99.36 | 0.64 | 93.3 | 1 | 32.3 | 0/0 | 0 | 2018 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-24 | |
| TestTime | Test Time | 08:08 | |
| TestDuration | Duration | 1:29:5 | |
| pXar | pXar version | prod-01+80~g16e673b | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 4 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
