Test Date: 2015-09-11 16:58
Analysis date: 2016-05-26 01:59
Analysis date: 2016-05-26 01:59
M2076 XRayHRQualification
Summary
| Module | Module | M2076 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 546 | |
| BumpBondingDefects | Bump Bonding Defects | 22 | |
| NoisyPixels | Noisy Pixels | 522 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

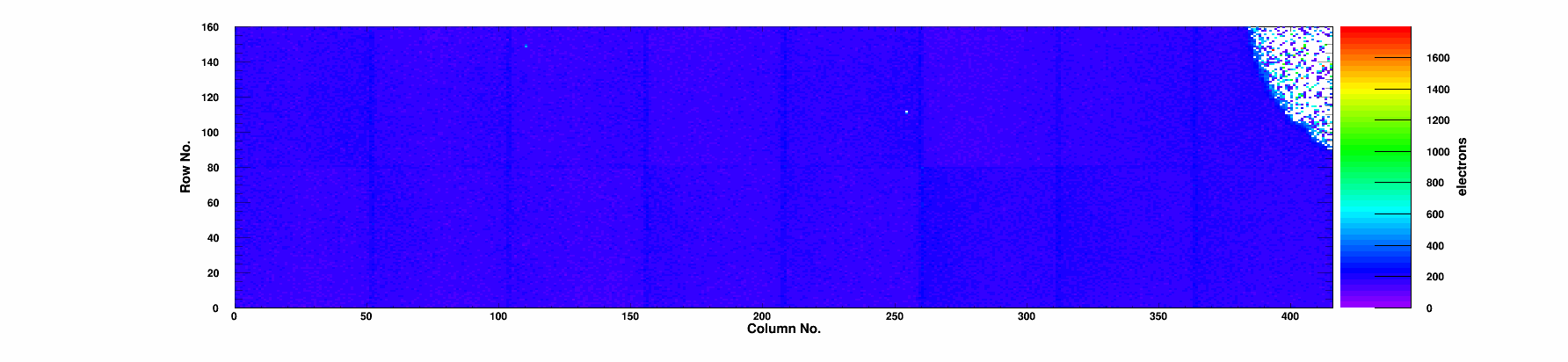

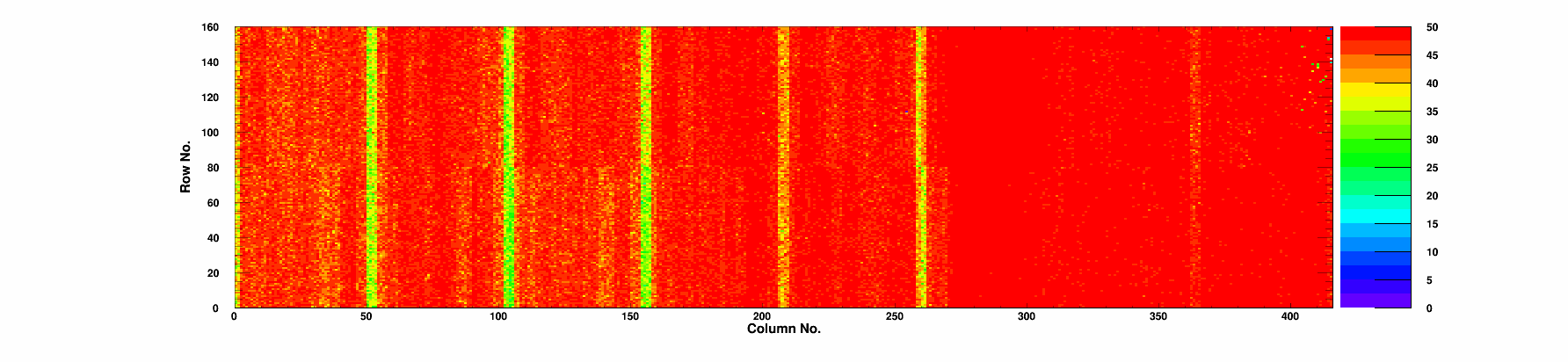

| Efficiency | Efficiency 50/120 | 99.83/99.25 | % |
| Noise | Mean Noise | 171 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
C
|
528 | 0 | 99.31 | 98.67 | 7.72 | 78.6 | 7 | 27.7 | 0/0 | 1 | -2545 | 212 | 519 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 98.98 | 1.05 | 100.8 | 0 | 34.2 | 0/0 | 0 | 2022 | 172 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.33 | 0.5 | 81.9 | 0 | 27.4 | 0/0 | 0 | 1968 | 157 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.87 | 99.36 | 0.59 | 168.6 | 0 | 58.7 | 0/0 | 0 | 2133 | 175 | 2 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.31 | 0.84 | 154.5 | 0 | 54.0 | 0/0 | 0 | 2112 | 159 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.89 | 99.35 | 0.65 | 184.7 | 0 | 66.2 | 0/0 | 0 | 2186 | 164 | 1 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.41 | 0.53 | 186.9 | 0 | 65.4 | 0/0 | 0 | 2206 | 166 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.89 | 99.32 | 1.12 | 198.9 | 2 | 69.3 | 0/0 | 0 | 2215 | 175 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.25 | 0.81 | 195.3 | 0 | 68.4 | 0/0 | 0 | 2214 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.64 | 188.3 | 0 | 66.3 | 0/0 | 0 | 2222 | 165 | 0 |
|
Chip 10
|
A
|
10 | 0 | 99.85 | 99.34 | 0.49 | 207.2 | 10 | 73.1 | 0/0 | 0 | 2268 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.31 | 0.6 | 166.7 | 0 | 58.0 | 0/0 | 0 | 2170 | 167 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.35 | 0.55 | 154.5 | 0 | 53.9 | 0/0 | 0 | 2162 | 167 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.20 | 0.53 | 97.2 | 0 | 32.5 | 0/0 | 0 | 2005 | 181 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.21 | 0.82 | 104.5 | 0 | 35.4 | 0/0 | 0 | 2021 | 177 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.86 | 99.28 | 0.84 | 100.7 | 3 | 34.6 | 0/0 | 0 | 2027 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-11 | |
| TestTime | Test Time | 16:58 | |
| TestDuration | Duration | 1:26:36 | |
| pXar | pXar version | prod-10+24~g09f6d2c | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
