Test Date: 2015-08-11 15:16
Analysis date: 2016-05-26 00:53
Analysis date: 2016-05-26 00:53
M2065 XRayHRQualification
Summary
| Module | Module | M2065 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 106 | |
| BumpBondingDefects | Bump Bonding Defects | 103 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.30 | % |
| Noise | Mean Noise | 158 | e- |

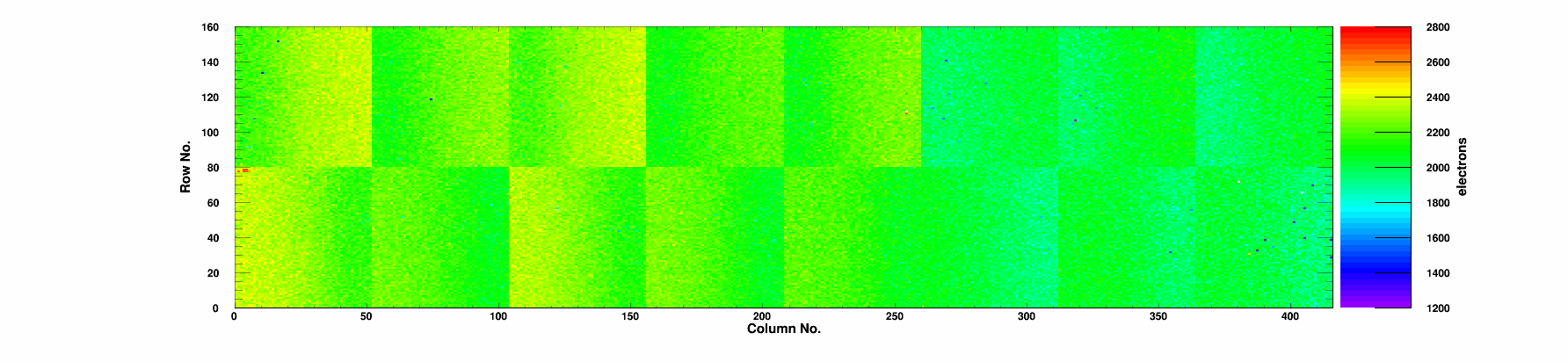

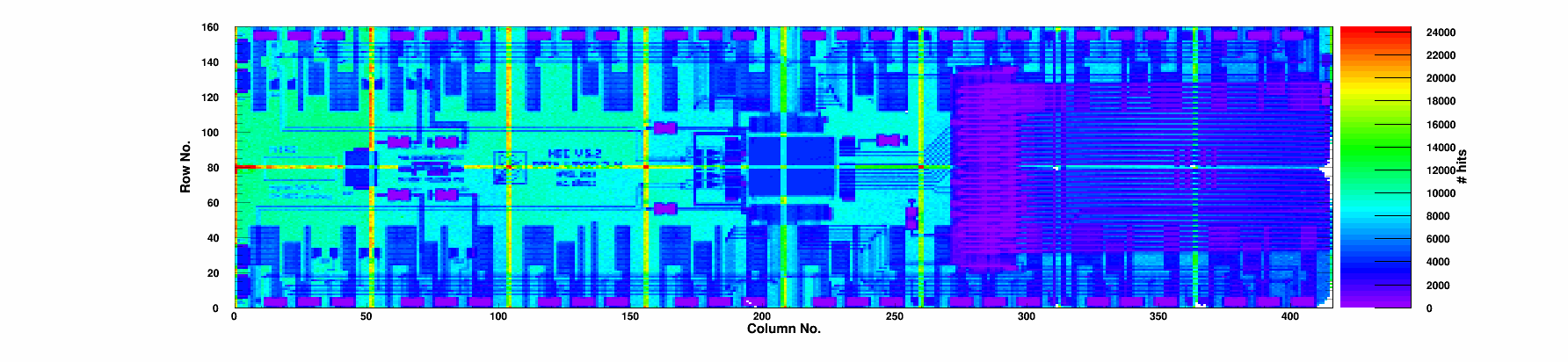

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
19 | 0 | 99.83 | 99.06 | 0.82 | 87.2 | 19 | 29.1 | 0/0 | 0 | 2007 | 164 | 0 |
|
Chip 1
|
A
|
2 | 0 | 99.85 | 99.30 | 0.75 | 99.6 | 2 | 33.3 | 0/0 | 0 | 2033 | 167 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.31 | 0.49 | 93.0 | 0 | 31.0 | 0/0 | 0 | 2001 | 162 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.86 | 99.37 | 0.46 | 165.1 | 0 | 57.4 | 0/0 | 0 | 2149 | 161 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.33 | 0.48 | 159.0 | 0 | 55.5 | 0/0 | 0 | 2170 | 154 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.35 | 0.71 | 204.6 | 0 | 73.1 | 0/0 | 0 | 2280 | 151 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.35 | 0.75 | 183.7 | 0 | 64.8 | 0/0 | 0 | 2208 | 152 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.31 | 0.97 | 217.7 | 0 | 76.5 | 0/0 | 0 | 2284 | 151 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.28 | 1.01 | 203.3 | 0 | 71.7 | 0/0 | 0 | 2274 | 156 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.84 | 99.20 | 0.49 | 165.6 | 0 | 57.8 | 0/0 | 0 | 2164 | 149 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.38 | 0.8 | 190.6 | 0 | 68.1 | 0/0 | 0 | 2246 | 156 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.88 | 99.38 | 0.35 | 160.3 | 3 | 55.7 | 0/0 | 0 | 2169 | 156 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.28 | 0.71 | 155.8 | 0 | 53.9 | 0/0 | 0 | 2149 | 158 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.86 | 99.27 | 0.31 | 85.4 | 5 | 28.2 | 0/0 | 0 | 2001 | 161 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.28 | 0.7 | 92.8 | 0 | 30.9 | 0/0 | 0 | 2017 | 168 | 0 |
|
Chip 15
|
B
|
76 | 0 | 99.87 | 99.33 | 0.54 | 82.1 | 74 | 27.4 | 0/0 | 0 | 1993 | 158 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 15:16 | |
| TestDuration | Duration | 1:28:57 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 7 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 6 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 6 | |
| message_eventid_count | Event ID mismatch | 3 | |
| message_tokenchain_count | Token Chain Length | 4 | |
| message_readback_count | Readback start marker | 5 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
