Test Date: 2015-08-12 14:10
Analysis date: 2016-05-25 23:29
Analysis date: 2016-05-25 23:29
M2050 XRayHRQualification
Summary
| Module | Module | M2050 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 2 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.25 | % |
| Noise | Mean Noise | 163 | e- |

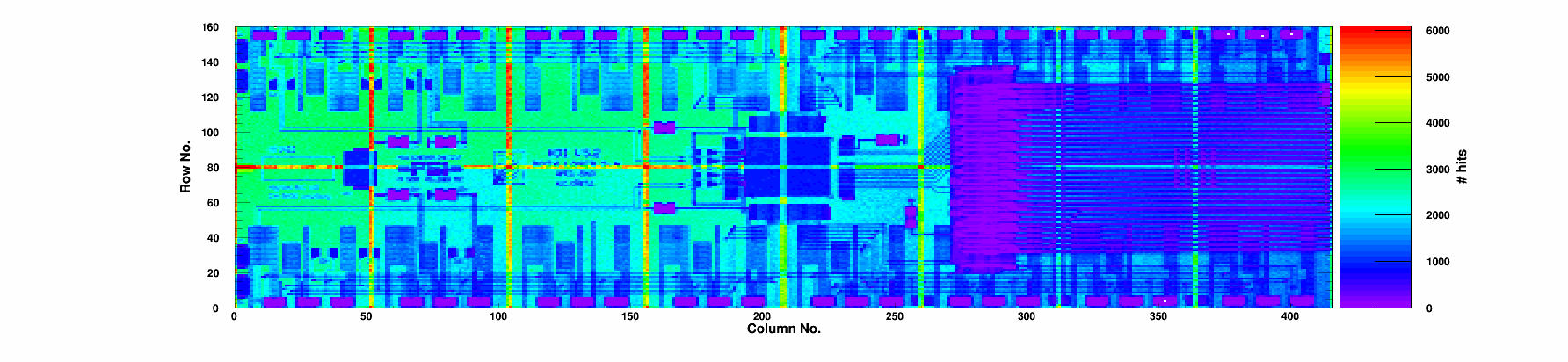

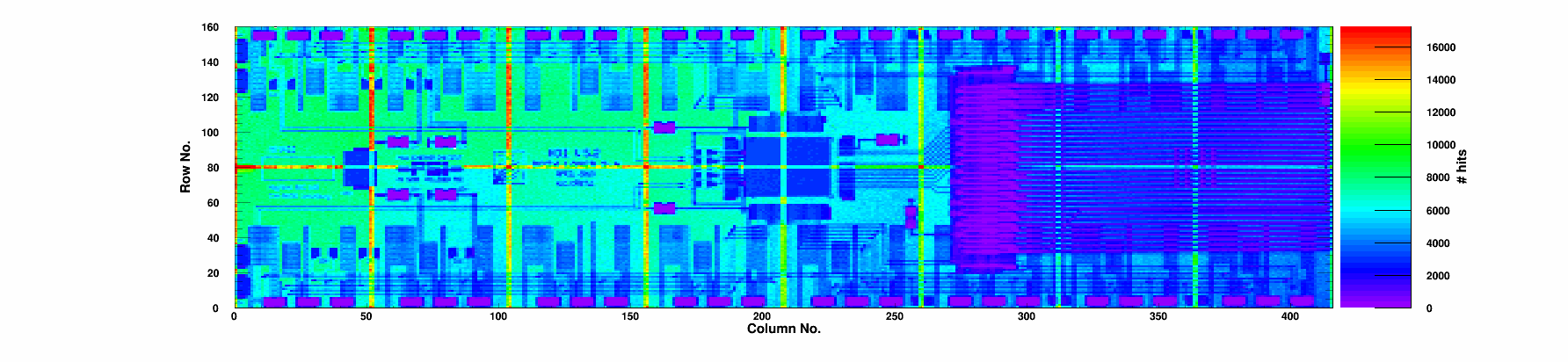

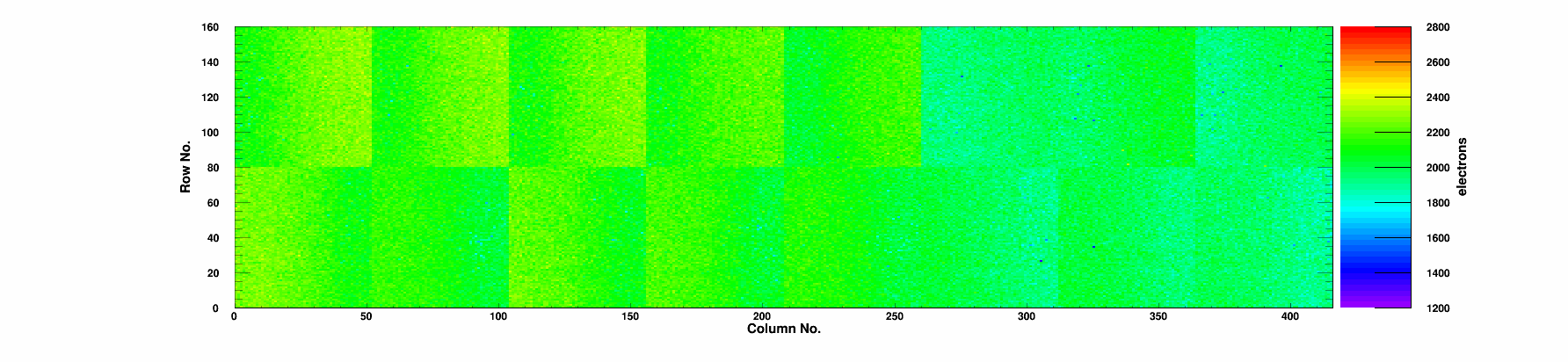

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.84 | 99.01 | 0.48 | 67.7 | 0 | 22.6 | 0/0 | 0 | 1962 | 156 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.33 | 0.47 | 79.3 | 0 | 26.7 | 0/0 | 0 | 2010 | 166 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.13 | 0.92 | 68.5 | 0 | 22.7 | 0/0 | 0 | 1952 | 157 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.89 | 99.34 | 0.61 | 122.2 | 0 | 42.6 | 0/0 | 0 | 2119 | 164 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.30 | 0.7 | 146.9 | 0 | 51.1 | 0/0 | 0 | 2165 | 172 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.33 | 0.27 | 167.3 | 0 | 59.1 | 0/0 | 0 | 2192 | 169 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.30 | 0.89 | 158.1 | 1 | 55.4 | 0/0 | 0 | 2194 | 164 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.89 | 99.29 | 0.51 | 170.1 | 1 | 59.5 | 0/0 | 0 | 2207 | 166 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.37 | 0.54 | 158.9 | 0 | 55.2 | 0/0 | 0 | 2187 | 164 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.36 | 0.47 | 125.8 | 0 | 43.3 | 0/0 | 0 | 2100 | 154 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.34 | 0.69 | 145.9 | 0 | 51.5 | 0/0 | 0 | 2156 | 164 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.27 | 1.0 | 131.4 | 0 | 45.6 | 0/0 | 0 | 2122 | 168 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.17 | 0.75 | 109.0 | 0 | 37.6 | 0/0 | 0 | 2086 | 161 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.19 | 0.44 | 65.9 | 0 | 21.9 | 0/0 | 0 | 1977 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.12 | 0.54 | 71.3 | 0 | 23.9 | 0/0 | 0 | 1982 | 160 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.88 | 99.15 | 0.3 | 66.0 | 0 | 22.3 | 0/0 | 0 | 1944 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-12 | |
| TestTime | Test Time | 14:10 | |
| TestDuration | Duration | 1:27:24 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 5 | |
| nWarnings | # Warnings | 1 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 6 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
