Test Date: 2015-12-02 12:14
Analysis date: 2016-05-25 23:11
M2047 XRayHRQualification
Chips

Overview

Summary
Module Module M2047
Grade Grade A
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 16/0/0
PixelDefects Total Pixel Defects 8
BumpBondingDefects Bump Bonding Defects 5
NoisyPixels Noisy Pixels 3
HotPixelDefects Hot Pixels 2
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.87/99.30 %
Noise Mean Noise 156 e-
Summary ROCs
ROC Grade Def DC Eff 50 Eff 120 Eff chi2 Rate "50" Rate "150" BB def R/O Unif. Thr [e-] "100" Noise "100" Noisy pix
Chip 0
A
 0 0 99.88 99.29 0.72 31.6 92.9 0 0/0 0 1978 154 0
Chip 1
A
 0 0 99.86 99.28 0.42 33.2 98.3 0 0/0 0 1993 158 0
Chip 2
A
 0 0 99.86 99.31 0.54 30.4 91.8 0 0/0 0 1961 161 0
Chip 3
A
 0 0 99.87 99.34 0.53 50.7 146.2 0 0/0 0 2087 153 0
Chip 4
A
 0 0 99.88 99.32 0.66 54.0 155.4 0 0/0 0 2127 153 0
Chip 5
A
 0 0 99.88 99.34 0.69 65.8 187.9 0 0/0 0 2165 148 0
Chip 6
A
 0 0 99.86 99.37 0.58 66.5 192.4 0 0/0 0 2176 155 0
Chip 7
A
 5 0 99.89 99.37 0.58 68.8 197.6 4 0/0 0 2151 154 1
Chip 8
A
 2 0 99.87 99.39 0.57 62.7 180.6 1 0/0 0 2144 153 1
Chip 9
A
 0 0 99.88 99.33 0.57 62.2 178.5 0 0/0 0 2109 156 0
Chip 10
A
 0 0 99.86 99.36 0.63 63.4 179.9 0 0/0 0 2149 147 0
Chip 11
A
 0 0 99.89 99.33 0.86 55.9 161.8 0 0/0 0 2122 159 0
Chip 12
A
 0 0 99.83 99.20 1.56 55.4 161.2 0 0/0 0 2122 162 0
Chip 13
A
 0 0 99.86 99.23 0.44 32.1 96.5 0 0/0 0 1999 174 0
Chip 14
A
 1 0 99.84 99.07 0.89 29.0 87.8 0 0/0 0 1919 150 1
Chip 15
A
 0 0 99.86 99.26 0.74 33.0 96.6 0 0/0 0 1933 157 0
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 50
BB defects 150
Noise 100

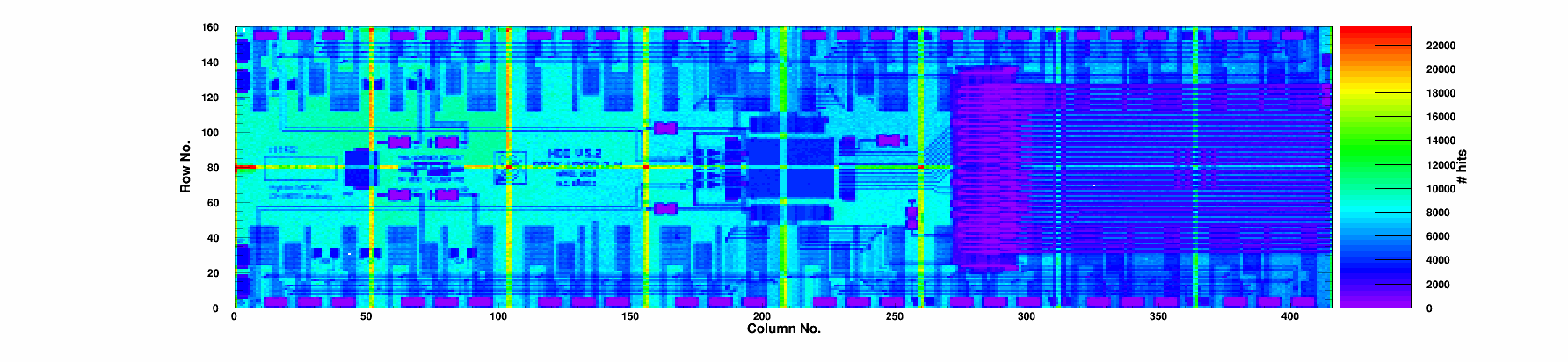

Hit Map 50
Hits distribution 50 inner/edge/corner
Hit Map 150
Hits distribution 150 inner/edge/corner
Bump Bonding Defects 50
BB defects 50
Bump Bonding Defects 150
BB defects 150
Masked Hot Pixels 50
Hot pixels 50
Masked Hot Pixels 150
Hot pixels 150

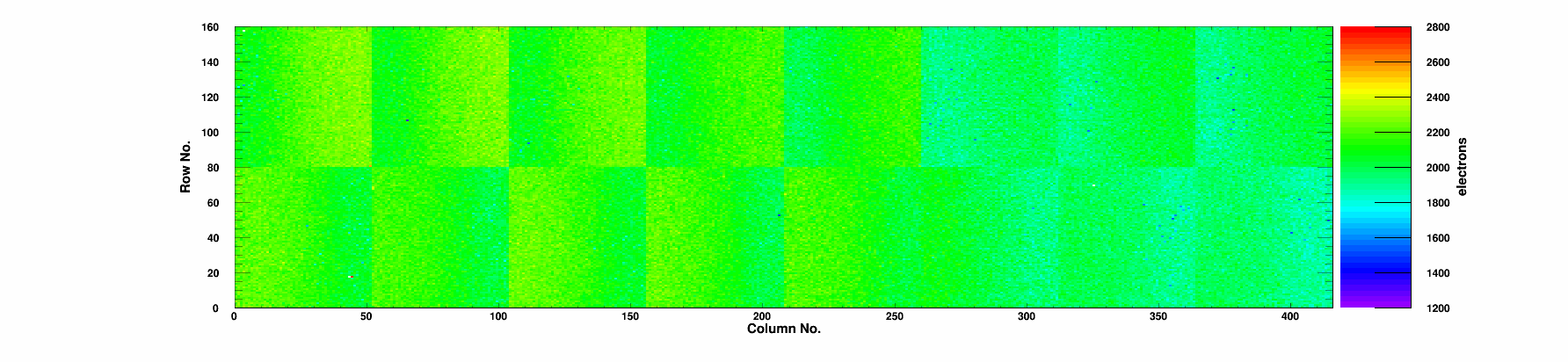

Threshold 100
Threshold distribution 100
Noise 100
Noise distribution 100
Pixel Alive Map
Dead/inefficient pixels

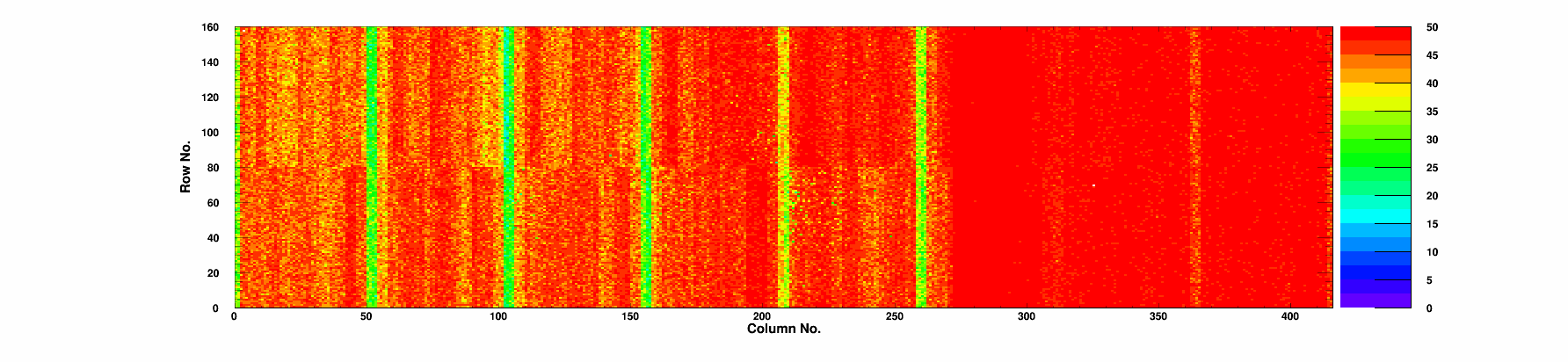

HR Efficiency Map 50
Efficiency distribution 50

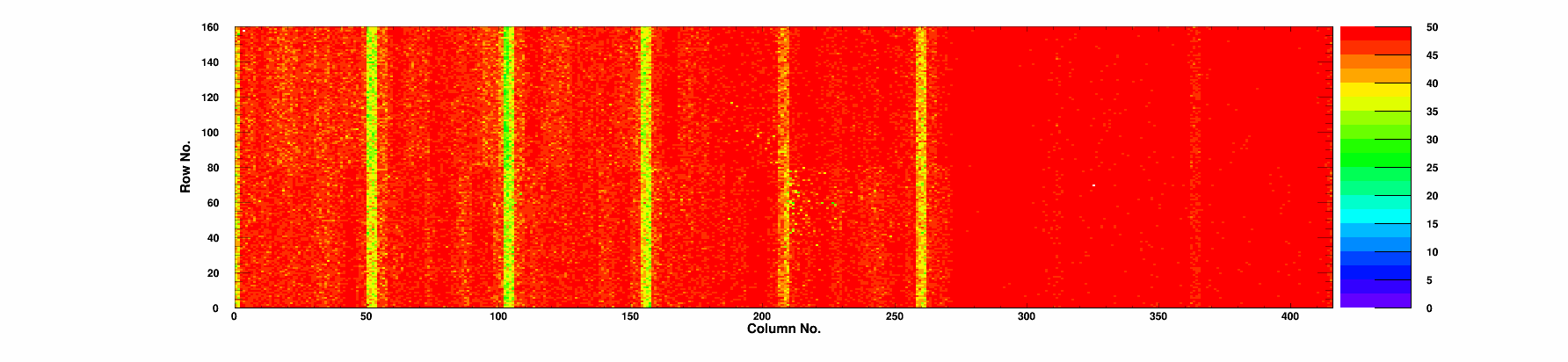

HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
HR Efficiency Map 250
Efficiency distribution 250
Retrimmed Hot Pixels 0
Retri Hot Pix 0
Setup
TestCenter Test Center ETHZ
TestDate Test Date 2015-12-02
TestTime Test Time 12:14
TestDuration Duration 1:5:30
pXar pXar version v2.6.0+26~g89693ff
DTB_FW DTB FW 4.5
Errors
nCriticals # Criticals 0
nErrors # Errors 12
nWarnings # Warnings 2
channel_0_count Channel 0 0
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 4
message_eventid_count Event ID mismatch 2
message_tokenchain_count Token Chain Length 2
Logfile

Overview

MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
