Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 9
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.86/99.35
EfficiencyFit Efficiency Fit chi2/ndf: 1.02, # points: 49
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C9
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 1.02
NumberFitPoints # fit points 49
p0 p0 99.89
p1 p1 3.18e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.35

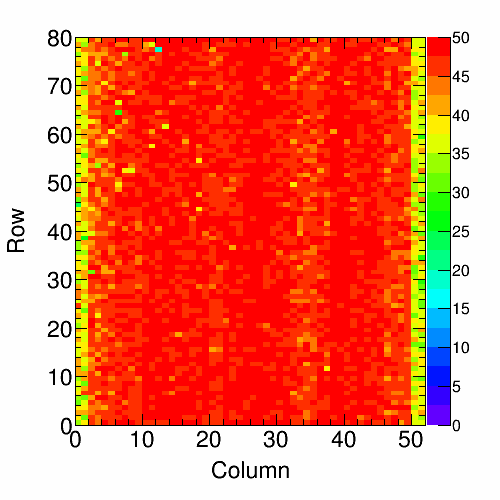

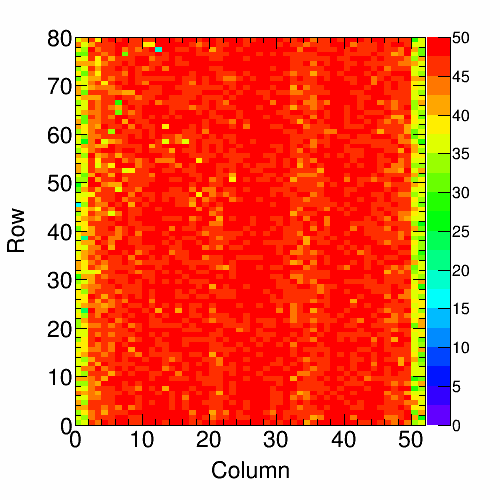

Efficiency Map 50: C9
Efficiency Map 100: C9
Efficiency Map 150: C9
Efficiency Map 200: C9
Efficiency Map 250: C9
Efficiency Distr. 50: C9
Plot
N N 4160
mu μ 99.80
sigma σ 0.75
Efficiency Distr. 100: C9
Plot
N N 4160
mu μ 99.00
sigma σ 1.76
Efficiency Distr. 150: C9
Plot
N N 4160
mu μ 97.05
sigma σ 3.73
Efficiency Distr. 200: C9
Plot
N N 4160
mu μ 93.02
sigma σ 7.14
Efficiency Distr. 250: C9
Plot
N N 4160
mu μ 92.42
sigma σ 7.48

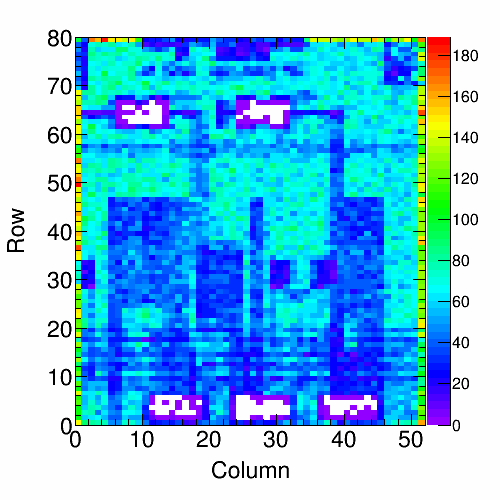

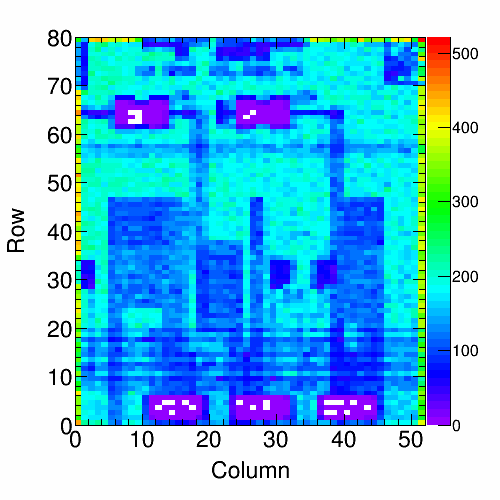

Background Map 50: C9
Plot
RealHitrate Real Hitrate 63.57 MHz/cm2

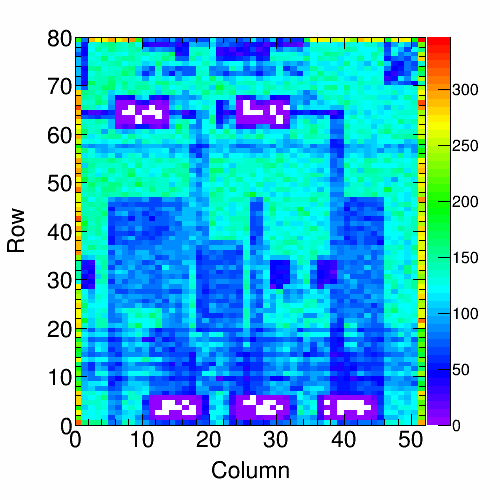

Background Map 100: C9
Plot
RealHitrate Real Hitrate 126.45 MHz/cm2

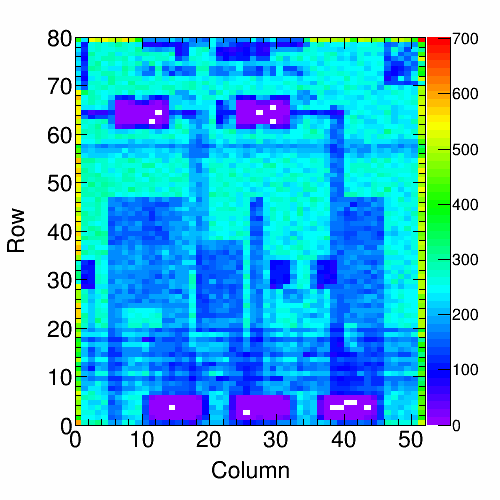

Background Map 150: C9
Plot
RealHitrate Real Hitrate 180.22 MHz/cm2
Background Map 200: C9
Plot
RealHitrate Real Hitrate 242.49 MHz/cm2
Background Map 250: C9
Plot
RealHitrate Real Hitrate 250.72 MHz/cm2
Retrim Hot Pix 150: C9
Masked Hot Pixels 150: C9
Masked Hot Pixels 50: C9

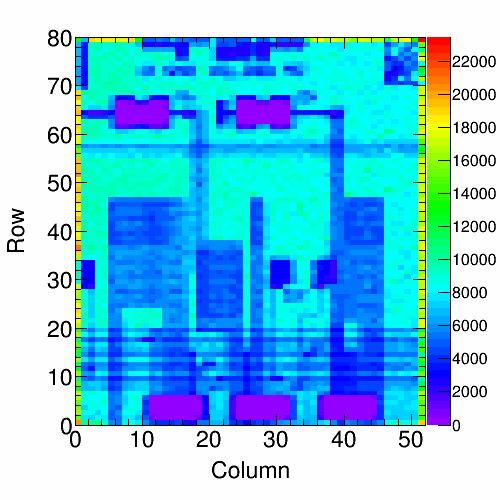

Hit Map 150: C9
Plot
RealHitrate Real Hitrate 176.61 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C9

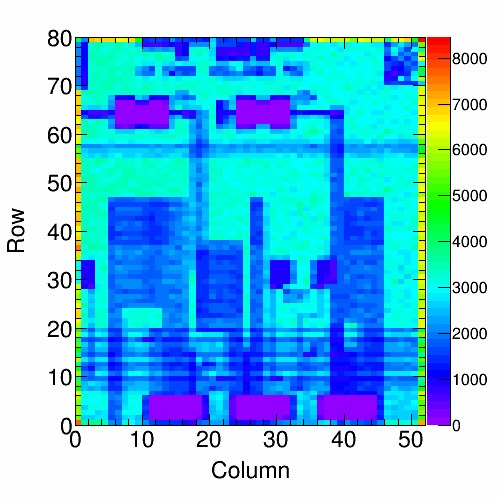

Hit Map 50: C9
Plot
RealHitrate Real Hitrate 62.09 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C9
Col. Read. Unif. 150: C9
Plot
N N 24874323
mu μ 549376
sigma σ 156403.03
Col. Read. Unif. 50: C9
Plot
N N 8721197
mu μ 193183
sigma σ 57923.50
Read. Unif. over Time 150: C9
Plot
N N 28567575
mu μ 28944
sigma_th σ_th 170.13
Time unif. distribution 150: C9
Plot
chi2/ndf chi2/ndf 21.40
sigma σ 204.34
sigma_th σ_th 170.20
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C9
Plot
N N 10045507
mu μ 10178
sigma_th σ_th 100.89
Time unif. distribution 50: C9
Plot
chi2/ndf chi2/ndf 0.88
sigma σ 100.81
sigma_th σ_th 100.92
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C9

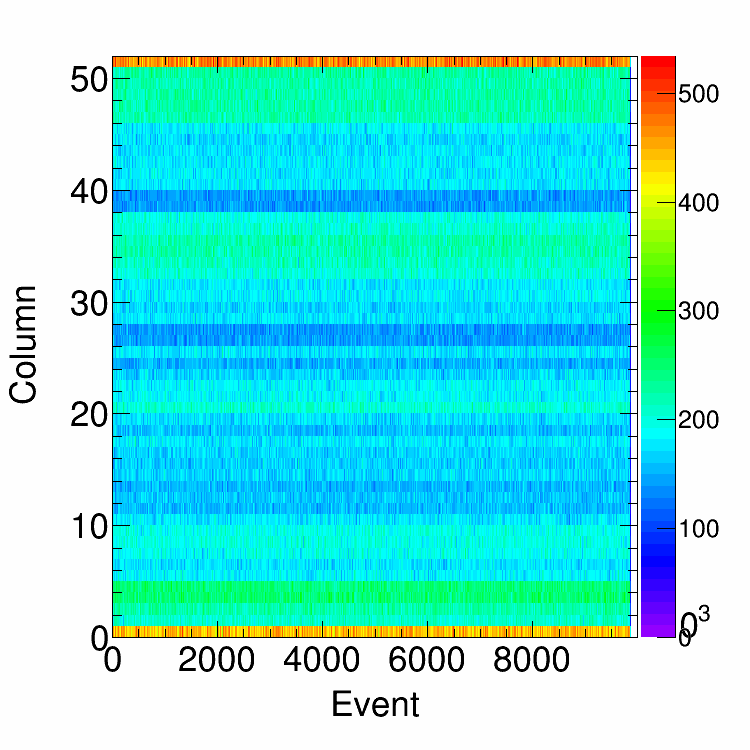

Col. Uniformity per Event: C9 150
Plot
mu μ 26.15
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C9 50
Plot
mu μ 26.47
sigma fit error of μ 2.27
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C9 100
Plot
N N 4160
mu μ 157.27
sigma RMS 18.00
threshold thr 2224.79
fit fit Gaussian
fit_peak μ fit 156.94
fit_sigma σ fit 17.51
MeasuredHitrate Measured hitrate: 125.2
Alive Map: C9
DC Efficiency Distribution: C9
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.31
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C9
