Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.89/99.34
EfficiencyFit Efficiency Fit chi2/ndf: 0.68, # points: 45
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.68
NumberFitPoints # fit points 45
p0 p0 99.93
p1 p1 3.43e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.89
InterpolatedEfficiency120 Interpol. Efficiency 120 99.34

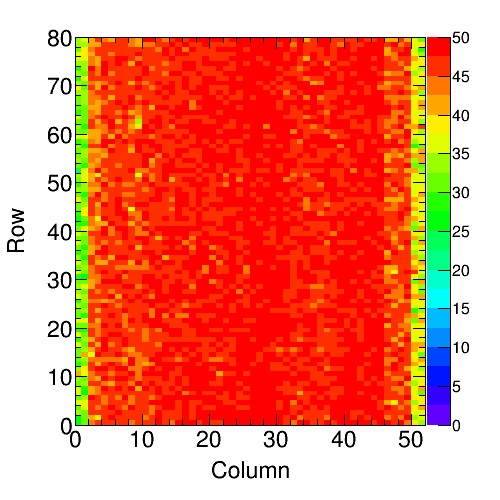

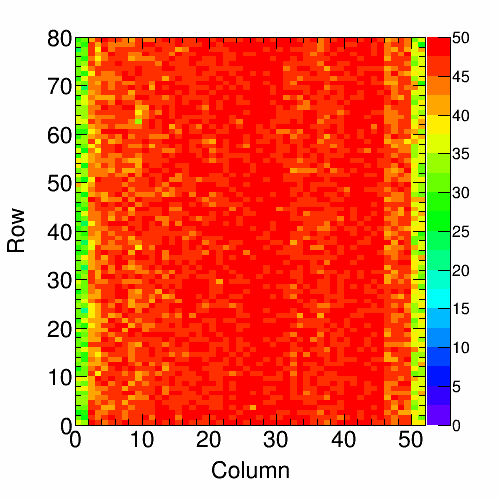

Efficiency Map 50: C6
Efficiency Map 100: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.79
sigma σ 0.65
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 98.88
sigma σ 1.87
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 96.69
sigma σ 4.27
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 92.21
sigma σ 8.01
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 91.53
sigma σ 8.37

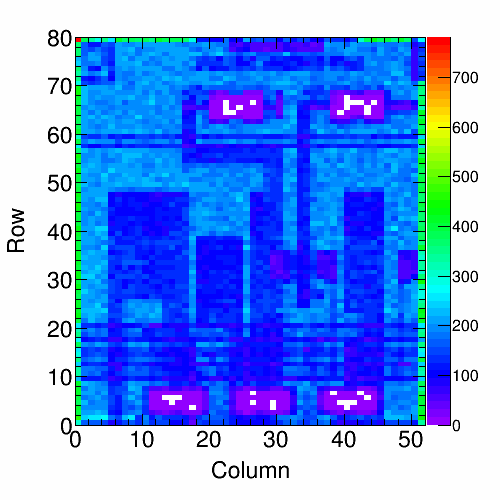

Background Map 50: C6
Plot
RealHitrate Real Hitrate 66.01 MHz/cm2

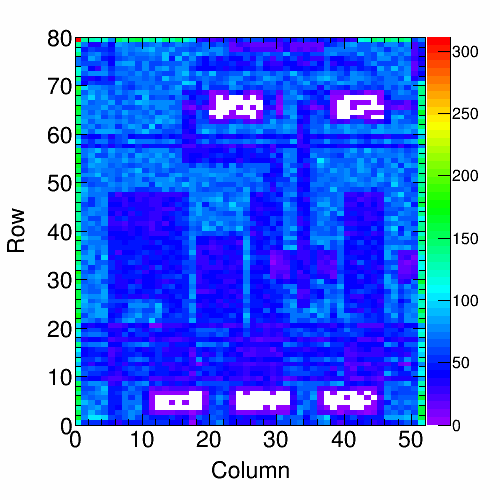

Background Map 100: C6
Plot
RealHitrate Real Hitrate 131.87 MHz/cm2
Background Map 150: C6
Plot
RealHitrate Real Hitrate 188.56 MHz/cm2

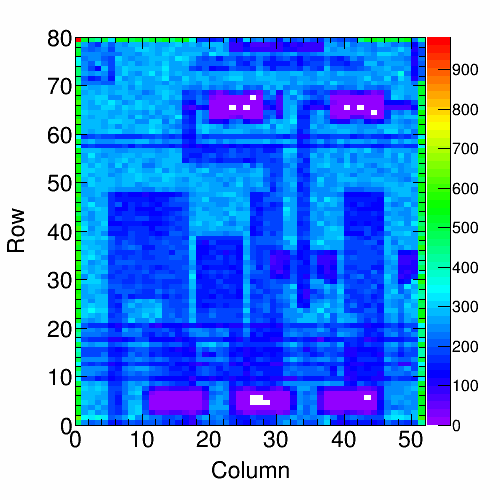

Background Map 200: C6
Plot
RealHitrate Real Hitrate 254.02 MHz/cm2

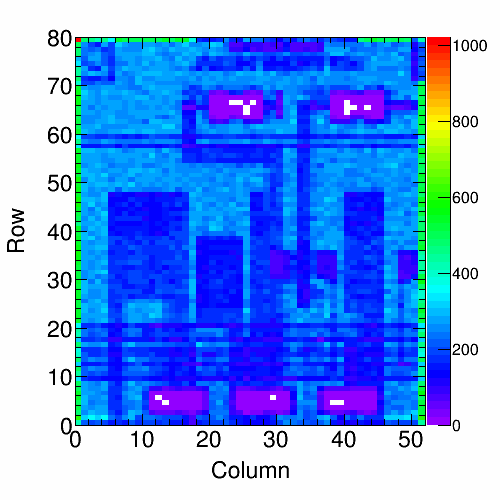

Background Map 250: C6
Plot
RealHitrate Real Hitrate 261.69 MHz/cm2
Retrim Hot Pix 150: C6
Masked Hot Pixels 150: C6
Masked Hot Pixels 50: C6

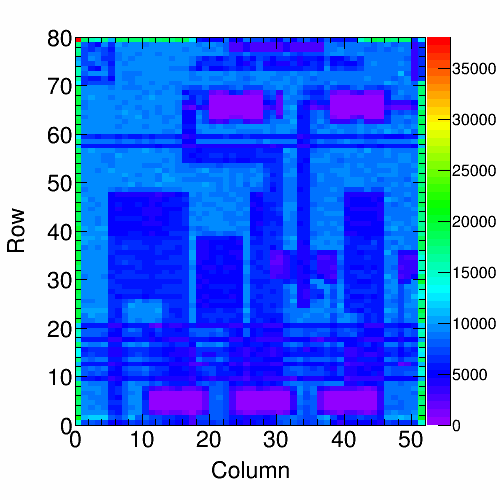

Hit Map 150: C6
Plot
RealHitrate Real Hitrate 183.87 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C6
Hit Map 50: C6
Plot
RealHitrate Real Hitrate 64.17 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C6
Col. Read. Unif. 150: C6
Plot
N N 25780796
mu μ 571969
sigma σ 175211.83
Col. Read. Unif. 50: C6
Plot
N N 8969505
mu μ 199675
sigma σ 64485.97
Read. Unif. over Time 150: C6
Plot
N N 29742379
mu μ 30134
sigma_th σ_th 173.59
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 16.38
sigma σ 203.68
sigma_th σ_th 173.67
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C6
Plot
N N 10383108
mu μ 10520
sigma_th σ_th 102.57
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 0.93
sigma σ 105.53
sigma_th σ_th 102.60
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C6

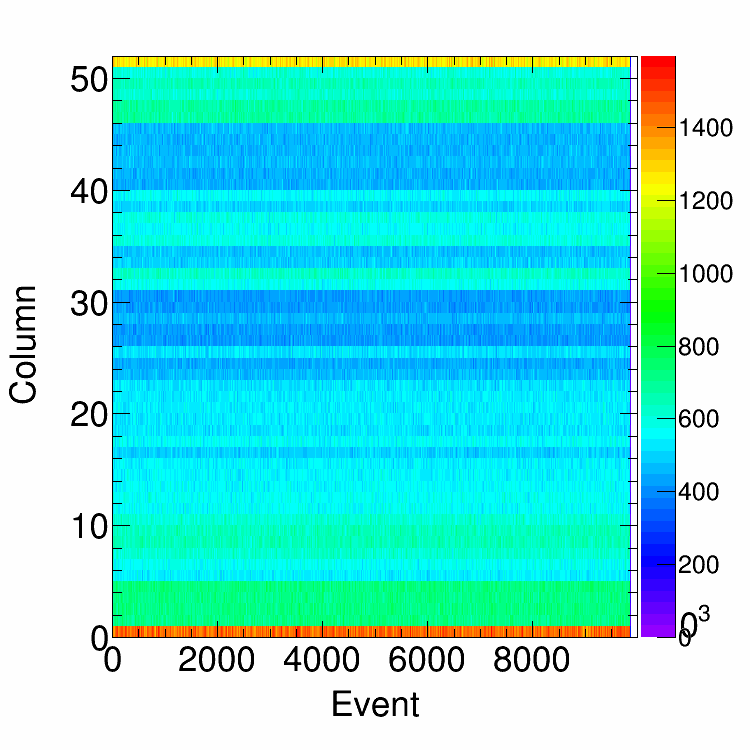

Col. Uniformity per Event: C6 150
Plot
mu μ 24.99
sigma fit error of μ 2.28
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

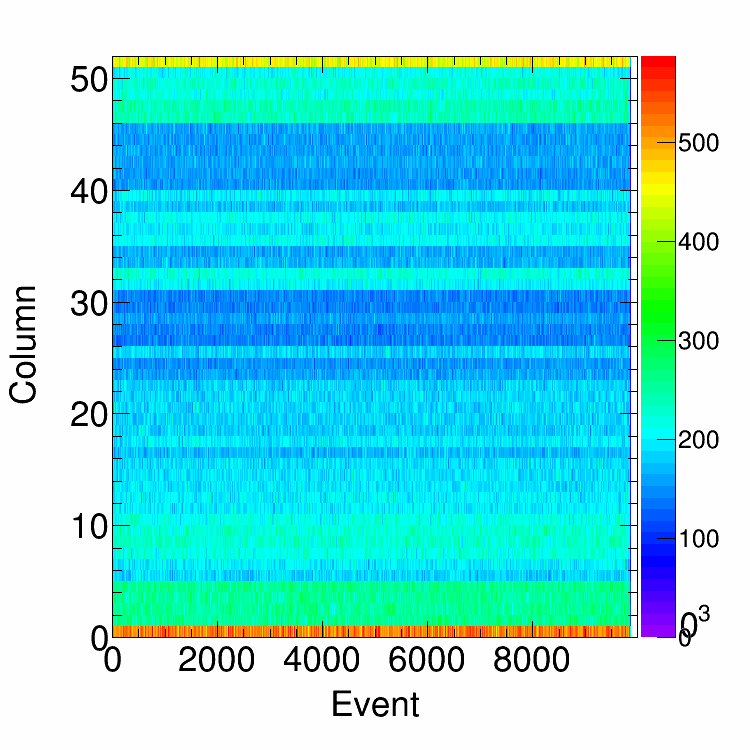

Col. Uniformity per Event: C6 50
Plot
mu μ 24.90
sigma fit error of μ 2.29
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4160
mu μ 165.36
sigma RMS 17.59
threshold thr 2216.15
fit fit Gaussian
fit_peak μ fit 164.83
fit_sigma σ fit 16.91
MeasuredHitrate Measured hitrate: 130.8
Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.89
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.31
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
