Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 5
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.88/99.35
EfficiencyFit Efficiency Fit chi2/ndf: 0.54, # points: 53
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C5
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.54
NumberFitPoints # fit points 53
p0 p0 99.92
p1 p1 3.31e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.35

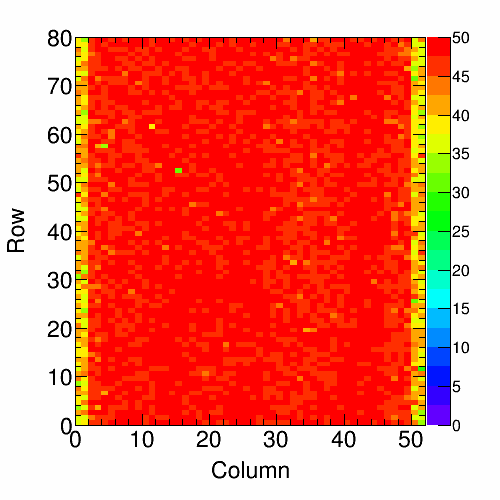

Efficiency Map 50: C5

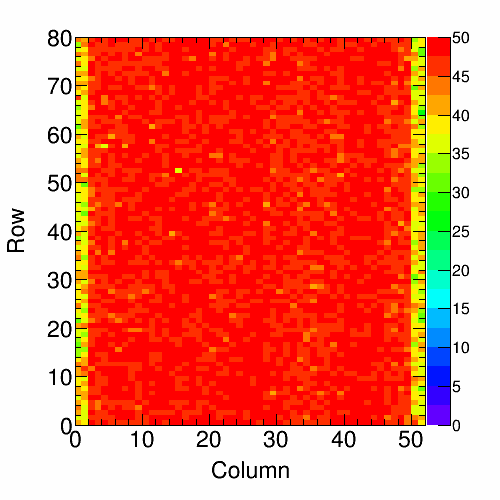

Efficiency Map 100: C5
Efficiency Map 150: C5
Efficiency Map 200: C5
Efficiency Map 250: C5
Efficiency Distr. 50: C5
Plot
N N 4160
mu μ 99.82
sigma σ 0.61
Efficiency Distr. 100: C5
Plot
N N 4160
mu μ 99.16
sigma σ 1.50
Efficiency Distr. 150: C5
Plot
N N 4160
mu μ 97.73
sigma σ 3.00
Efficiency Distr. 200: C5
Plot
N N 4160
mu μ 94.54
sigma σ 5.72
Efficiency Distr. 250: C5
Plot
N N 4160
mu μ 93.98
sigma σ 6.20

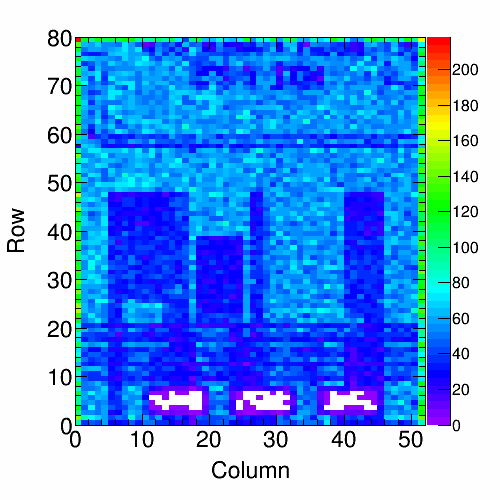

Background Map 50: C5
Plot
RealHitrate Real Hitrate 59.29 MHz/cm2

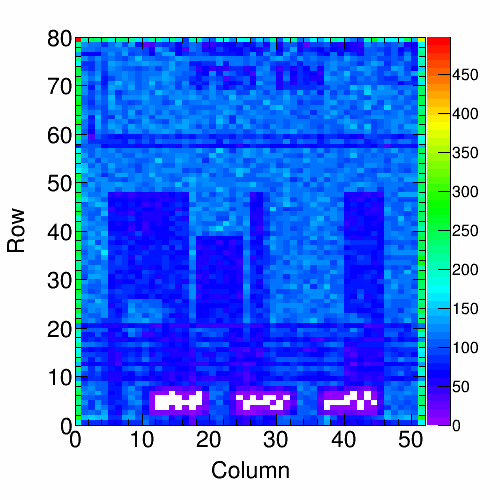

Background Map 100: C5
Plot
RealHitrate Real Hitrate 119.25 MHz/cm2

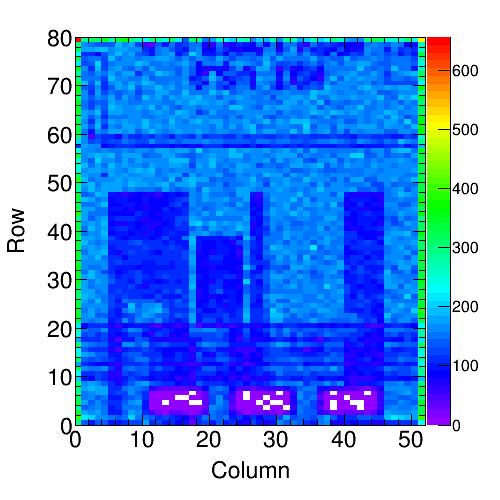

Background Map 150: C5
Plot
RealHitrate Real Hitrate 169.52 MHz/cm2

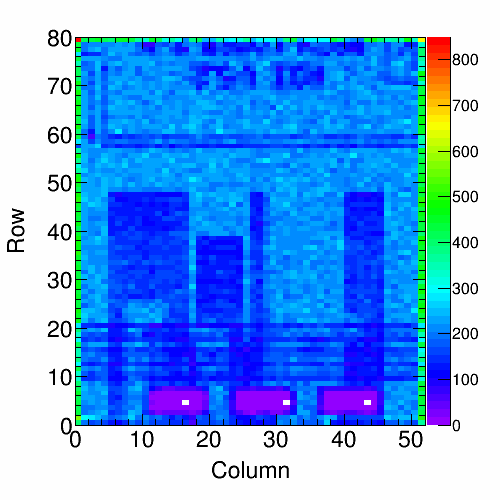

Background Map 200: C5
Plot
RealHitrate Real Hitrate 227.31 MHz/cm2
Background Map 250: C5
Plot
RealHitrate Real Hitrate 234.00 MHz/cm2
Retrim Hot Pix 150: C5
Masked Hot Pixels 150: C5
Masked Hot Pixels 50: C5

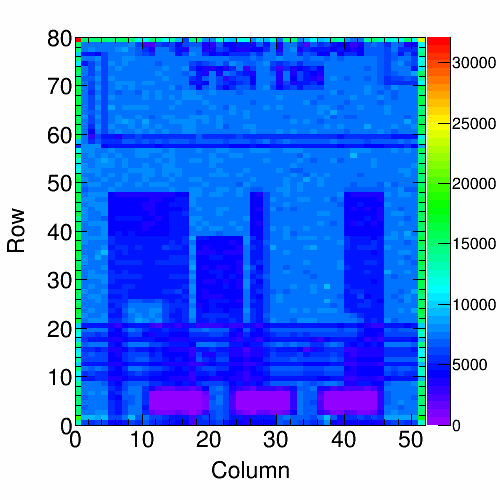

Hit Map 150: C5
Plot
RealHitrate Real Hitrate 165.77 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C5

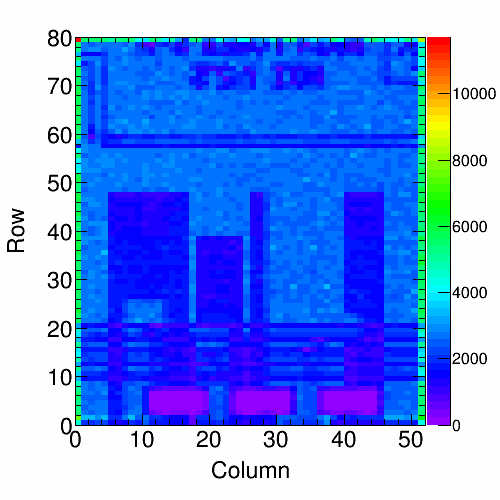

Hit Map 50: C5
Plot
RealHitrate Real Hitrate 57.42 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C5
Col. Read. Unif. 150: C5
Plot
N N 23342908
mu μ 515665
sigma σ 141750.32
Col. Read. Unif. 50: C5
Plot
N N 8061238
mu μ 178647
sigma σ 51719.23
Read. Unif. over Time 150: C5
Plot
N N 26814575
mu μ 27168
sigma_th σ_th 164.83
Time unif. distribution 150: C5
Plot
chi2/ndf chi2/ndf 17.13
sigma σ 197.89
sigma_th σ_th 164.90
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C5
Plot
N N 9289643
mu μ 9412
sigma_th σ_th 97.02
Time unif. distribution 50: C5
Plot
chi2/ndf chi2/ndf 2.68
sigma σ 106.54
sigma_th σ_th 97.04
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C5
Col. Uniformity per Event: C5 150
Plot
mu μ 26.05
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C5 50
Plot
mu μ 26.07
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C5 100
Plot
N N 4160
mu μ 155.25
sigma RMS 15.24
threshold thr 2178.69
fit fit Gaussian
fit_peak μ fit 154.71
fit_sigma σ fit 14.47
MeasuredHitrate Measured hitrate: 118.9
Alive Map: C5
DC Efficiency Distribution: C5
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.35
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C5
